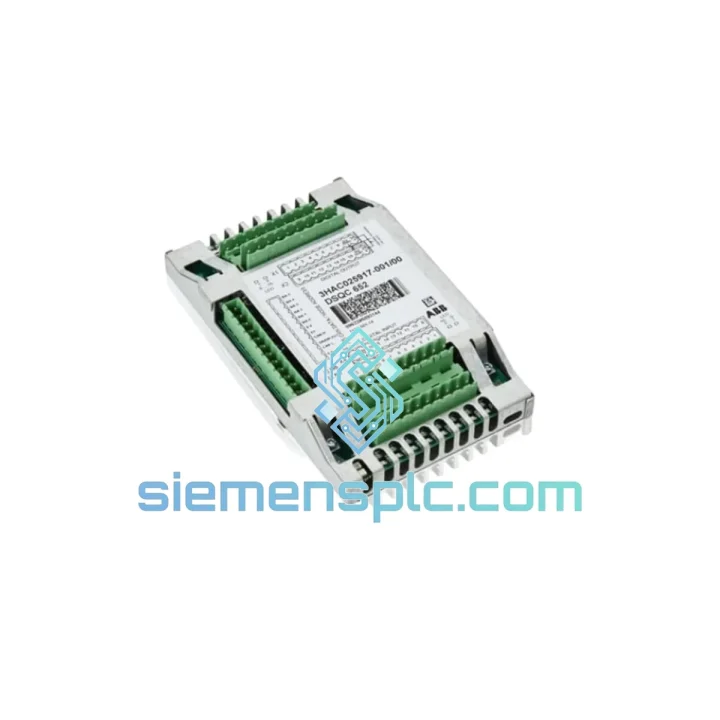

ABB DSQC652 3HAC025917-001/00 — 16-Channel Digital I/O Module for IRC5 Robot Controllers

The ABB DSQC652 (order reference 3HAC025917-001/00) is a 32-point discrete I/O expansion module designed exclusively for the ABB IRC5 single-cabinet and multi-cabinet robot controller platform. Mounted on the IRC5 internal I/O bus, it delivers 16 galvanically isolated digital inputs and 16 solid-state digital outputs within a single DIN-rail-compatible housing. The module communicates with the IRC5 main computer via the proprietary DSQC backplane bus — a deterministic, token-ring-derived serial link that guarantees fixed-latency I/O updates synchronised to the robot motion interpolation cycle, typically 4 ms. This architecture eliminates the jitter inherent in fieldbus-bridged I/O and ensures that discrete signals — weld-complete, clamp-confirm, part-present — are sampled and acted upon within a single motion tick, a requirement that cannot be relaxed in high-speed pick-and-place or spot-welding applications where positional accuracy depends on signal timing.

In the control-loop hierarchy of an IRC5 cell, the DSQC652 sits between the robot’s RAPID application layer and the physical field devices. RAPID system inputs (DI signals) are polled by the motion planner at each interpolation step; RAPID system outputs (DO signals) are latched immediately upon instruction execution. The DSQC652 therefore functions as the deterministic boundary between software logic and electromechanical reality — a role that demands both electrical robustness and zero-loss data integrity across the backplane link.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSQC652’s input stage employs optical isolation on each of the 16 input channels. Each opto-coupler presents a forward-voltage drop of approximately 1.2 V and a current-limiting resistor network sized for 24 VDC nominal field voltage, yielding an input current draw of roughly 7–10 mA per active channel — a value deliberately chosen to guarantee reliable LED activation in the opto-coupler even under worst-case cable voltage drop on runs up to 50 m. The opto-coupler output drives a Schmitt-trigger buffer whose hysteresis band (approximately 2 V) suppresses contact bounce and slow-rising signals from inductive proximity sensors, preventing false toggling at the RAPID application layer.

On the output side, each of the 16 channels is driven by a low-side N-channel MOSFET with an integrated flyback diode. The MOSFET’s on-state resistance (R_DS(on)) is specified below 0.5 Ω at rated current, producing a worst-case conduction loss of approximately 125 mW per channel at 0.5 A — well within the module’s thermal budget at +55 °C ambient. An over-current detection circuit monitors aggregate output current; if the 8 A aggregate threshold is exceeded, the module asserts a fault bit on the backplane bus and the IRC5 main computer logs a system error (event log code 20223), allowing the RAPID error handler to execute a controlled stop rather than a hard power-off.

EMC performance is achieved through a multi-layer PCB design with a dedicated ground plane separating the field-side circuitry from the backplane logic. Transient suppression diodes (TVS, bidirectional, 33 V clamping) are placed at each D-Sub connector pin to absorb inductive load switching transients up to ±500 V peak. The module housing is bonded to the IRC5 cabinet chassis ground, providing a low-impedance return path for common-mode noise currents and ensuring compliance with EN 61000-6-2 Level 3 surge immunity (2 kV line-to-earth).

The backplane bus interface uses differential signalling with 120 Ω termination, making it immune to ground-loop noise between modules. The DSQC652 stores its node address in non-volatile EEPROM; on power-up, the IRC5 main computer performs a bus enumeration and assigns logical I/O signal names from the RobotWare configuration database to physical channel addresses — a process that completes in under 2 seconds and requires no manual DIP-switch setting, unlike legacy DSQC bus modules.

System Integration Benefits

• Deterministic 4 ms I/O latency — Backplane bus synchronisation to the IRC5 motion interpolator eliminates fieldbus-induced jitter, ensuring discrete signals are processed within a single motion cycle. This is critical for weld-complete and clamp-confirm interlocks where a 10 ms delay would translate to measurable positional error at 1 m/s TCP speed.
• Zero-configuration RobotWare recognition — The module is enumerated automatically at controller boot. Signal names defined in the RobotWare I/O configuration file are mapped to physical channels without manual addressing, reducing commissioning time from hours to minutes compared to external DeviceNet or PROFIBUS I/O nodes.
• Solid-state output longevity — MOSFET outputs rated for >10 million switching cycles eliminate relay contact wear, a common failure mode in 24/7 automotive production where a single I/O module may execute 50,000+ output transitions per shift.
• Integrated fault diagnostics — Over-current, short-circuit, and bus-communication faults are reported as discrete event log entries in the IRC5 event log, accessible via FlexPendant and RobotStudio. Maintenance personnel can identify the exact failed channel without oscilloscope probing.
• Hot-swap in maintenance mode — When the IRC5 is placed in maintenance mode (motors off, safety chain open), the DSQC652 can be replaced without full controller power-down. The replacement module is recognised within 2 seconds of bus re-enumeration, minimising MTTR in production environments.
• Flexible signal grouping via RobotStudio — Channels can be grouped into 8-bit or 16-bit digital group signals (GI/GO) in the I/O configuration, enabling byte-wide data exchange with PLCs over cross-system I/O links without additional gateway hardware.
• Scalable I/O density — Up to four DSQC652 modules can be installed on a single IRC5 I/O bus, providing 64 DI and 64 DO per controller. This density supports complex multi-fixture cells without requiring an external I/O expansion chassis or additional fieldbus master.
• Backward compatibility with DSQC651 — The DSQC652 is a form-fit-function replacement for the DSQC651. No hardware modification is required; updating the I/O board type in the RobotWare configuration file is sufficient, preserving existing RAPID programs and signal mappings.

Quality Assurance & Global Logistics

Every ABB DSQC652 unit dispatched from our Xiamen, China facility is sourced through verified industrial automation distribution channels with full traceability to ABB’s manufacturing batch records. Prior to dispatch, each module undergoes a structured inspection protocol: visual examination of the D-Sub connector pins, PCB surface, and housing for physical damage or counterfeit indicators; functional power-on test at 24 VDC with LED status verification and backplane bus communication check; firmware version confirmation against the RobotWare compatibility matrix; and ESD-safe packaging in anti-static bag with foam insert rated for international air freight.

All units are covered by a 12-month warranty from the date of dispatch. Warranty claims are processed with a target response time of 24 hours; confirmed defective units are replaced or credited without requiring return of the original module in most cases, minimising production downtime for our customers.

Logistics from Xiamen are executed via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, 4–6 days to North America, and 2–4 days to Southeast Asia. Same-day dispatch is available for orders confirmed before 14:00 CST. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared to comply with EU, US, and ASEAN customs requirements. HS code 8537.10 applies for customs classification in most jurisdictions.
