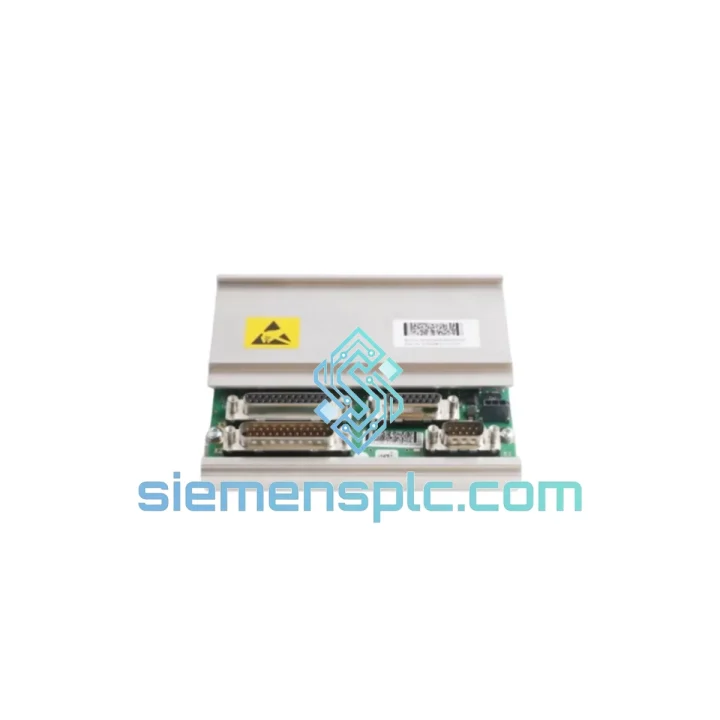

ABB DSQC668 3HAC029157-001 Servo Drive Module

ABB DSQC668 3HAC029157-001 — Stop the Clock on Your Downtime

Every minute your IRC5 robot cell sits idle, the losses compound. A failed servo drive doesn’t just halt one axis — it shuts down the entire production sequence. The ABB DSQC668 (3HAC029157-001) is the axis drive unit that keeps your IRB series robots moving, and when it fails, you need a verified replacement on your bench within 24–48 hours, not weeks. We stock it. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of IRC5 drive failures in the field, these are the patterns that show up again and again:

Common Fault Codes That Point to DSQC668 Failure:

• 50001 — Drive unit error: The most direct indicator. Check the drive LED status first — a solid red or alternating red/amber on the DSQC668 front panel confirms the drive itself has faulted, not the motor or resolver.
• 50024 — Drive communication error: Often caused by a failing backplane connector or corrupted drive firmware. Reseat the module first; if the fault persists after a cold restart, the drive board is the culprit.
• 50056 — Overcurrent on axis X: Can be motor-side or drive-side. Disconnect the motor power connector at the drive and run a drive self-test via the FlexPendant. If the fault clears, the motor or cable is the issue. If it persists, the IGBT stage inside the DSQC668 has failed.
• 38203 — Motor temperature sensor fault: Occasionally triggered by a drive that’s misreading the thermistor signal due to a degraded analog input circuit on the DSQC668.

Step-by-Step Replacement Procedure:

1. Safety first: Set the IRC5 main breaker to OFF and lock out/tag out. Wait 5 minutes for DC bus capacitors to discharge before opening the drive compartment.
2. Document the existing configuration: Before pulling the module, photograph the drive slot position, cable routing, and any DIP switch settings visible on the board edge. The DSQC668 does not use external DIP switches for axis addressing — addressing is handled automatically by the IRC5 backplane slot position. Do not move the module to a different slot unless you intend to reconfigure the axis mapping in RobotWare.
3. Remove the failed unit: Disconnect the motor power connectors (X1–X3), resolver/encoder connectors, and the backplane edge connector. The module slides out on guide rails — do not force it.
4. Inspect the slot: Check the backplane connector pins for bent contacts or burn marks. A failed drive can sometimes damage the backplane connector — address this before installing the replacement.
5. Install the new DSQC668: Slide the replacement unit into the same slot. Reconnect all connectors in reverse order. Torque the M4 retention screws to 1.5 Nm.
6. Firmware check: Power on the controller. The IRC5 system will automatically detect the new drive and load the appropriate firmware from the controller’s internal memory. No manual firmware flashing is required for a like-for-like DSQC668 replacement. If the system prompts for a firmware update, allow it to complete before proceeding.
7. Revolution counter update: After any drive swap, perform a revolution counter update on all affected axes via FlexPendant → Calibration → Update Revolution Counters. This is mandatory — skipping it will cause position errors and potential collision on the first move.
8. Test run: Execute a slow-speed jog on each axis before running any program. Verify no fault codes appear and that axis feedback matches commanded position.

Pro tip from the field: If you’re replacing a DSQC668 that failed due to a power surge event, also inspect the DSQC662 (rectifier unit) and DSQC663 (drive unit for axes 4–6) in the same cabinet. Surge damage rarely stops at one module.

Reliability in Harsh Conditions

The DSQC668 was engineered for the realities of industrial production floors — not laboratory conditions. ABB designed this module to operate continuously in environments that would destroy consumer-grade electronics within weeks.

The power stage uses industrial-grade IGBT modules rated for high thermal cycling, capable of handling the repeated load transients that occur during robot acceleration and deceleration cycles. In automotive welding applications, where a single robot may execute 1,200+ cycles per shift, the drive’s thermal management system — combining the internal forced-air fan with the IRC5 cabinet’s main cooling circuit — maintains junction temperatures within safe operating limits even at ambient temperatures approaching 55 °C.

Vibration resistance is built into the mechanical design. The module’s guide-rail mounting system and locking retention screws prevent micro-movement that would otherwise fatigue solder joints on the PCB over time. In foundry and press-shop environments where floor vibration is constant, this mechanical integrity is what separates a 7-year service life from a 2-year one.

Humidity and contamination are addressed through conformal coating on the main control PCB, protecting signal-level circuits from condensation and airborne particulates. The IP20 rating applies to the module’s external connectors — the internal circuitry is protected to a higher standard. Units supplied through our channel are inspected for coating integrity before dispatch; any unit showing delamination or corrosion is rejected.

Every unit we ship has been powered on, loaded with a test axis profile, and verified for correct current regulation, velocity loop response, and fault detection behavior. We don’t ship modules that have only passed a visual inspection — functional verification is non-negotiable.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international logistics hub with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. Stock is physically on our shelves, and orders confirmed before 15:00 CST ship the same business day.

Typical transit times from Xiamen:

• Southeast Asia (Thailand, Vietnam, Malaysia, Indonesia): 2–3 business days via DHL Express
• Europe (Germany, Poland, Czech Republic, Italy): 3–5 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Turkey): 3–4 business days via FedEx International Priority
• South America (Brazil, Chile, Argentina): 5–7 business days; customs clearance timelines vary by country

Every shipment includes a commercial invoice with accurate HS code classification (HS 8537.10 for servo drive modules), enabling smooth customs clearance. We can provide a proforma invoice for advance customs pre-clearance on request — a step that can save 24–48 hours at the border for time-critical shipments.

Packaging is ESD-compliant: the DSQC668 is sealed in a static-dissipative bag, placed in a foam-lined inner carton, and packed in a double-wall outer carton rated for international air freight handling. Tracking numbers are sent via email within 2 hours of dispatch. For shipments above USD 2,000, we recommend declaring full value for insurance coverage — we can arrange this on your behalf.

If your plant is facing an active production stoppage, contact us directly on WhatsApp for real-time stock confirmation and same-day shipping commitment before placing a formal purchase order.
