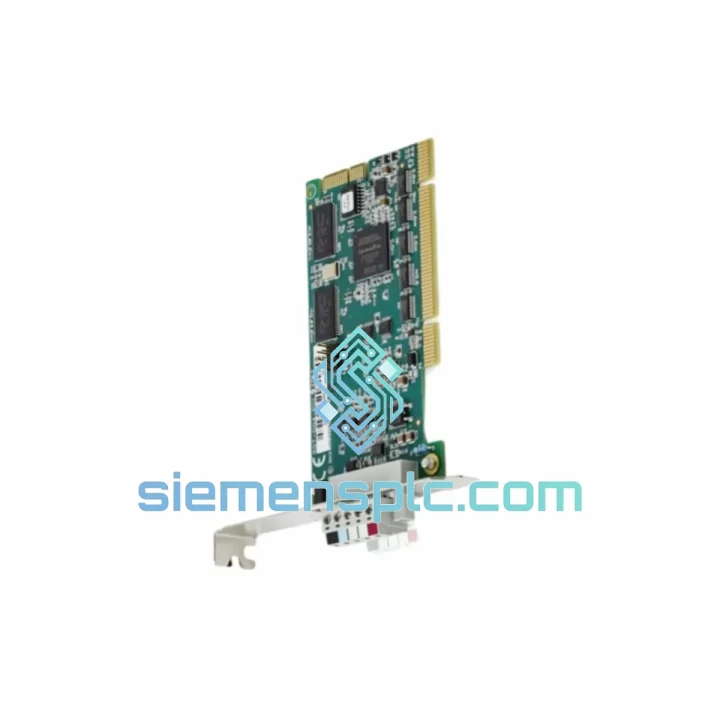

ABB DSQC697 3HAC037084-001 Option Board

ABB DSQC697 3HAC037084-001 — Stop the Clock on Your Downtime

Your IRC5 robot controller just threw a fault. The line is stopped. Every minute costs money — and you already know it. The ABB DSQC697 (3HAC037084-001) Option Board is the exact module that bridges your IRC5 controller to expanded I/O and fieldbus communication. Without it, your robot arm is a very expensive paperweight.

We stock this board in Xiamen. It ships today. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The DSQC697 fails in predictable ways. Here’s what I’ve seen on the floor and how to handle the swap without creating new problems:

Common Fault Signatures:

• 20223 — Option board communication error: The IRC5 main computer has lost contact with the DSQC697. First check the slot connector for bent pins or oxidation. If the connector is clean, the board itself is the culprit — swap it.
• 20224 — Option board configuration mismatch: This fires after a board replacement if the new unit’s firmware revision doesn’t match the system configuration stored in the controller. You’ll need to run a system reconfiguration from RobotStudio or the FlexPendant.
• 50056 — DeviceNet master/slave conflict: If your DSQC697 is configured as a DeviceNet master and the replacement board defaults to slave mode, the entire fieldbus network will hang. Check the node address setting before powering up.

Step-by-Step Replacement Procedure:

1. Power down the IRC5 controller completely. Do not hot-swap option boards — the backplane does not support it and you risk corrupting the main computer’s configuration memory.
2. Ground yourself. The DSQC697 is ESD-sensitive. Use a wrist strap connected to the cabinet chassis ground before touching the board.
3. Note the slot position. The DSQC697 must be reinstalled in the same physical option slot it occupied before. The IRC5 main computer maps option boards by slot index, not by board type. Wrong slot = wrong address = fault 20224 on startup.
4. Check DIP switch settings on the new board. If your application uses a non-default DeviceNet node address, the replacement board will ship at factory default (node 0 or node 63 depending on revision). Match the DIP switch configuration to your original board before insertion. Photograph the original board’s switches before removal.
5. Seat the board firmly. The option slot connector requires deliberate pressure. A partially seated board will cause intermittent fault 20223 that is extremely difficult to diagnose under production pressure.
6. Power up and check the FlexPendant event log immediately. If you see 20224, go to Controller > Configuration > I/O System and verify the option board instance matches the new hardware. A warm restart after configuration save usually clears it.
7. Verify fieldbus communication. Run a DeviceNet scan from the FlexPendant I/O panel and confirm all slave nodes are visible before releasing the line.

Firmware Note: If the replacement DSQC697 has a different firmware version than the original, RobotWare may flag a compatibility warning. In most cases this is non-blocking, but for safety-rated applications (SafeMove), confirm firmware compatibility with your ABB service engineer before going live.

Reliability in Harsh Conditions

The DSQC697 was designed for the inside of an IRC5 cabinet — which sounds protected until you remember that IRC5 cabinets live next to welding cells, stamping presses, and paint booths. The board’s conformal coating handles the humidity and airborne particulates that come with those environments. The PCB substrate is rated for continuous operation at 55°C ambient, which covers the thermal load inside a fully loaded IRC5 cabinet running a high-duty-cycle welding application.

Vibration is where option boards typically fail prematurely — not from the board itself, but from connector fretting caused by low-amplitude, high-frequency vibration transmitted through the cabinet floor. If your plant floor has significant vibration (press lines, heavy stamping), inspect the option slot connector contacts during your next planned maintenance window. A thin film of contact lubricant on the edge connector can extend service life significantly in these environments.

Every unit we ship has been stored in climate-controlled conditions with desiccant packaging. Boards that have been sitting in uncontrolled warehouse environments for extended periods develop oxide layers on the edge connector that cause exactly the intermittent fault 20223 pattern described above. Our stock turns regularly — you’re not getting a board that’s been on a shelf for three years.

Global Express Logistics

We operate from Xiamen, China — one of the country’s primary export hubs with direct DHL and FedEx gateway access. Here’s how your order moves:

• Order confirmed before 14:00 CST: Same-day dispatch to DHL/FedEx sort facility.
• DHL Express Worldwide: Most destinations in Europe, North America, Southeast Asia, and the Middle East receive delivery within 2–4 business days from dispatch.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage (parts of Latin America, South Asia).
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS Code 8537.10 applies for customs classification.
• ESD-safe packaging: The DSQC697 ships in anti-static bag inside a rigid foam-lined carton. It will survive the courier network intact.
• Tracking: AWB number sent to your email within 2 hours of dispatch. Real-time tracking link included.
• Emergency freight: If your situation requires next-flight-out courier, contact us directly. We have relationships with freight forwarders who can arrange same-day air cargo for critical downtime situations.

We’ve shipped to automotive plants in Germany, food processing facilities in Australia, semiconductor fabs in Taiwan, and petrochemical sites in the Middle East. The logistics infrastructure is in place. Your board will arrive.
