ABB DSTA171 3BSE018311R1 DCS Connection Unit – AC800M Advant OCS

ABB DSTA171 3BSE018311R1 — Field Termination Architecture in AC800M and Advant OCS Control Loops

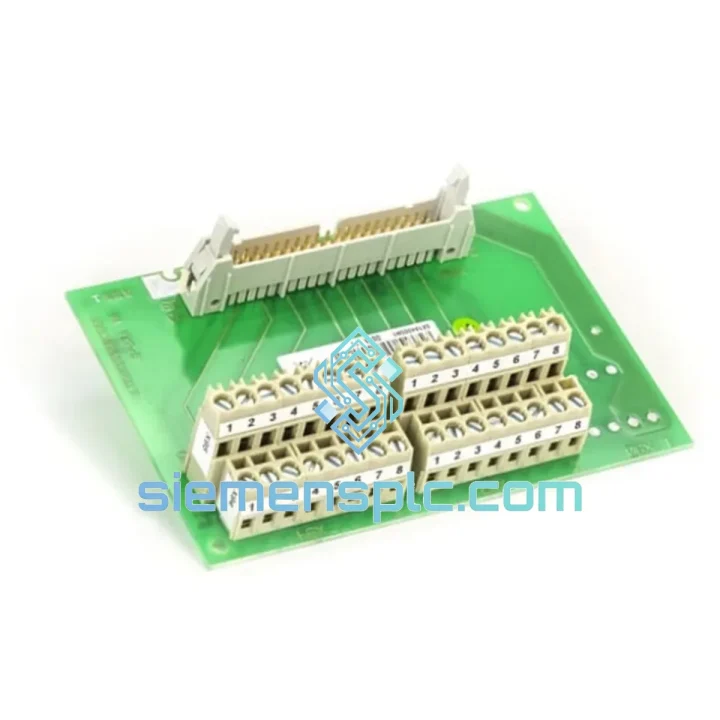

The DSTA171 (catalog reference 3BSE018311R1) is a passive connection unit module manufactured by ABB for deployment within the AC800M and Advant OCS (AC 450 / AC 410) distributed control system platforms. Its primary function is to serve as the physical and electrical interface between field instrument wiring and the I/O sub-module backplane, providing a structured, maintainable termination point that decouples field cabling from active electronics. In process automation architectures where uptime is measured in years rather than hours, this separation is not a convenience — it is a design requirement.

Within a typical AC800M rack assembly, field signals originating from transmitters, actuators, RTDs, and discrete sensors are routed to the DSTA171’s screw terminal block. From there, the module’s internal bus carries those signals to the corresponding I/O sub-module — AI810, DI810, AO810, or equivalent — mounted on the same backplane segment. The mechanical design ensures that field wiring remains undisturbed during I/O module extraction, a property that directly supports hot-maintenance procedures without interrupting live process signals. This architecture is consistent with IEC 61131-2 modular I/O design principles and ABB’s own S800 I/O system philosophy.

The DSTA171 is not a generic terminal block. It is an OEM-specified component with defined electrical characteristics, mechanical tolerances, and backplane connector geometry matched to ABB’s proprietary rack system. Substituting non-OEM alternatives introduces dimensional and impedance mismatches that can degrade signal fidelity, particularly in low-level analog circuits (4–20 mA, RTD, thermocouple) where contact resistance variations of even a few milliohms affect measurement accuracy at the controller input.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSTA171’s hardware design reflects ABB’s approach to separating passive field termination from active signal conditioning. The module’s screw-clamp terminal block uses a low-resistance copper alloy contact surface, maintaining stable contact impedance across the rated temperature range. In analog measurement circuits, this matters: a 1 Ω variation in loop resistance on a 4–20 mA circuit with a 250 Ω burden resistor introduces a measurable offset at the ADC input of the paired AI810 module. ABB’s terminal geometry is specified to hold contact resistance below 10 mΩ per terminal under rated torque, preserving measurement chain accuracy.

From an EMC standpoint, the DSTA171 provides a defined cable shield termination point. Proper shield grounding at the field termination unit — rather than at the I/O module itself — is a standard practice in IEC 61000-5-2 compliant installations. The DSTA171’s chassis connection point allows shield drain wires to be grounded at a single, controlled location, reducing common-mode noise injection into the analog input chain. In environments with variable-frequency drives, high-current motor feeders, or RF sources in proximity, this grounding architecture measurably reduces 50/60 Hz and switching-frequency interference at the controller input.

The backplane connector on the DSTA171 uses a gold-plated multi-pin interface that mates with the corresponding I/O sub-module. Gold plating on low-current signal contacts prevents oxide layer formation that would otherwise increase contact resistance over time in humid or mildly corrosive atmospheres — a relevant consideration in coastal process plants, offshore platforms, and tropical climates. The connector retention mechanism provides a defined insertion force and extraction force, ensuring the I/O module seats fully without relying on operator judgment.

The module’s passive architecture means it introduces no active failure modes of its own. There is no firmware, no ASIC, and no power rail beyond what is drawn from the backplane for any indicator LEDs. Mean time between failures (MTBF) for passive connection hardware of this class typically exceeds 500,000 hours under rated conditions, making the DSTA171 one of the lowest-risk components in the I/O assembly. When a DSTA171 does fail, the failure mode is almost always mechanical — terminal loosening from vibration or thermal cycling — rather than electronic, and is detectable through routine loop resistance checks during preventive maintenance.

System Integration Benefits

• Field Wiring Isolation During Maintenance: Field cables remain terminated on the DSTA171 while the I/O sub-module is extracted for replacement or bench testing. This eliminates the need to disconnect and re-identify field wires — a significant source of wiring errors during corrective maintenance.
• Deterministic Signal Routing: The fixed backplane bus geometry between the DSTA171 and its paired I/O module eliminates variable-length field wiring runs inside the cabinet, reducing parasitic capacitance and inductance that would otherwise affect high-frequency discrete signal edges.
• Diagnostic Transparency: With field signals accessible at the DSTA171 terminal block, technicians can perform loop current measurements, insulation resistance tests, and continuity checks using standard instruments without accessing the I/O module’s internal circuitry.
• Reduced Commissioning Time: Pre-wiring field cables to DSTA171 units before I/O modules are installed allows parallel commissioning workflows — field wiring teams and controls engineers can work simultaneously without dependency conflicts.
• Platform Longevity Support: AC800M and Advant OCS installations frequently operate for 15–25 year lifecycles. Stocking DSTA171 units as MRO spares ensures that field termination failures do not force premature platform migration.
• Backward Compatibility: The DSTA171 is mechanically and electrically compatible across both AC800M and legacy Advant OCS rack generations, simplifying spare parts inventory management for sites running mixed-generation DCS hardware.
• Vibration Resistance: Screw-clamp terminals with defined torque specifications maintain connection integrity in environments subject to mechanical vibration — compressor halls, turbine decks, and rotating equipment areas where spring-clamp alternatives may fatigue over time.
• ESD Protection at Field Interface: The DSTA171’s terminal block provides a defined point for installing surge protection devices (SPDs) in field loops subject to lightning-induced transients, protecting downstream I/O module inputs from overvoltage damage.

Quality Assurance & Global Logistics

Every DSTA171 3BSE018311R1 unit offered through siemensplc.com is sourced from verified ABB OEM supply channels and authorized surplus distributors with documented chain-of-custody records. Prior to dispatch, each module undergoes a structured pre-shipment inspection protocol: visual examination of housing integrity, label verification against ABB’s part number and revision format, backplane connector pin inspection for deformation or contamination, and terminal block torque verification. Units that do not pass inspection are quarantined and not offered for sale.

Packaging follows IEC 60068-2 transport protection standards: each unit is sealed in an anti-static ESD bag, cushioned in foam-lined corrugated carton, and accompanied by a humidity indicator card for long-haul ocean freight shipments. Commercial invoice, packing list, and Certificate of Conformity (CoC) are included as standard documentation. Datasheet and ABB installation manual are available on request at no additional charge.

Logistics operations are based in Xiamen, China — a major international port with direct freight connections to Europe, North America, Southeast Asia, the Middle East, and Australia. In-stock units ship within 1–3 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with full tracking provided from dispatch to delivery. For project procurement requiring multiple units or consolidated shipments, sea freight and air freight consolidation options are available with competitive lead times. Export documentation including HS code classification, CITES compliance (where applicable), and country-of-origin certificates is prepared as standard for all international shipments.
