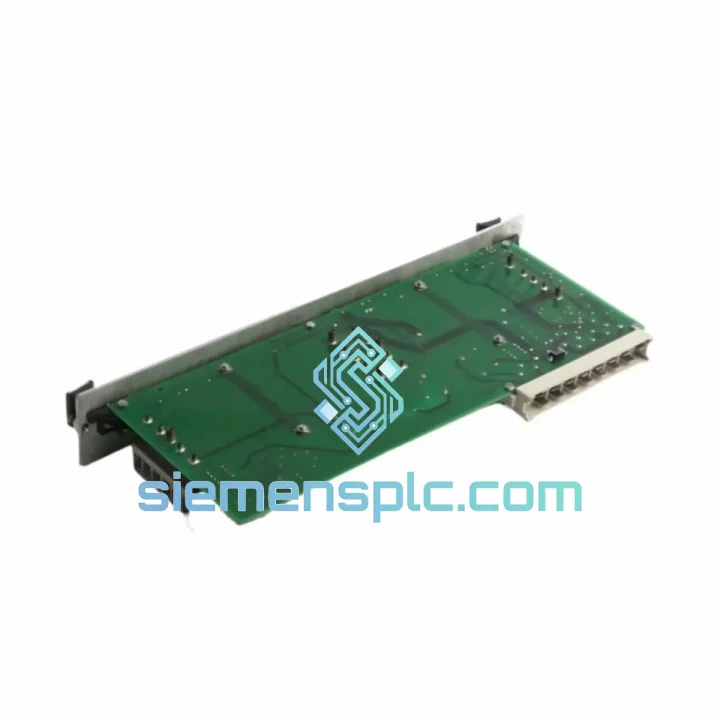

ABB EC24V 086362-001 DCS Control Board Module – AC800M Freelance

ABB EC24V (P/N 086362-001) — Processor Control Board for AC800M and Freelance DCS Architectures

The ABB EC24V, identified by part number 086362-001, is a processor-class control board module engineered for deployment within ABB’s AC800M and Freelance distributed control system (DCS) platforms. In a DCS control loop, this card occupies the computational core of the controller rack: it receives digitized process variable data from I/O sub-modules via the internal backplane bus, executes the configured control strategy (PID, cascade, feedforward, or custom function block sequences), and issues deterministic output commands to actuator interfaces within a fixed scan cycle. The module’s role is not peripheral — it is the arbitration point between field instrumentation and the supervisory SCADA or operator station layer.

Unlike generic embedded controllers, the EC24V is designed to operate within ABB’s proprietary rack ecosystem, where backplane communication is handled through a high-speed parallel bus architecture that enforces strict timing guarantees. This determinism is non-negotiable in process industries where a missed scan cycle in a reactor temperature loop or a compressor surge control application can result in unplanned shutdowns or equipment damage. The module’s firmware is tightly coupled to ABB’s engineering tools, enabling configuration, diagnostics, and online parameter modification without process interruption.

From a procurement standpoint, the EC24V-086362-001 is a direct form-fit-function replacement for installed units in existing AC800M and Freelance installations. No backplane hardware modification is required. In most system revisions, the module accepts the existing configuration download from the engineering workstation without requiring a full system re-commissioning cycle, which is a critical operational advantage when replacing a failed card in a live production environment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The EC24V’s internal architecture reflects ABB’s design philosophy for high-availability process control: deterministic execution, fault isolation, and diagnostic transparency at the hardware level.

Backplane Bus Arbitration: The module interfaces with the AC800M rack via a synchronous parallel backplane bus. Bus arbitration is managed by a dedicated bus controller ASIC embedded in the EC24V, which enforces fixed-priority scheduling between the processor core and I/O sub-modules. This prevents bus contention from introducing jitter into the control scan cycle — a critical requirement in fast-loop applications such as compressor anti-surge or boiler drum level control where scan-to-scan timing variance must remain below 1 ms.

EMC and Signal Integrity Design: The PCB layout employs multi-layer ground plane segmentation to isolate the analog signal conditioning circuitry from the digital processing domain. Differential signal traces are length-matched and routed with controlled impedance to suppress common-mode noise induced by adjacent power cabling in the control cabinet. Transient voltage suppression (TVS) diodes are placed at all backplane connector pins to clamp electrostatic discharge events to safe levels without latching — a design detail that extends module service life in environments with frequent maintenance activity.

Power Supply Filtering: The 24 V DC input passes through an LC filter stage before reaching the internal DC-DC converter. This stage attenuates high-frequency switching noise from the rack power supply, preventing power-rail disturbances from corrupting the processor’s clock domain. The converter output is regulated to ±1 % across the full operating temperature range, ensuring stable logic supply voltage under thermal cycling conditions.

Watchdog and Fault Isolation: An independent hardware watchdog timer monitors the processor’s execution cycle. If the main CPU fails to service the watchdog within the configured timeout window (typically 100–500 ms depending on application configuration), the watchdog asserts a hardware reset and flags a diagnostic event to the system controller. This prevents a hung processor from silently holding output states — a failure mode that is particularly hazardous in safety-instrumented system (SIS) adjacent applications.

System Integration Benefits

• Deterministic Scan Cycle Execution: The EC24V enforces a fixed-priority task scheduler that guarantees control loop execution within the configured scan period, eliminating the non-determinism associated with general-purpose operating systems in time-critical process control applications.
• Online Diagnostics Without Process Interruption: The module exposes a full diagnostic register set accessible via the ABB engineering workstation during live operation. Engineers can read CPU load, memory utilization, bus error counters, and I/O channel status without halting the control program — reducing planned maintenance windows.
• Hot-swap Compatible Rack Architecture: In redundant AC800M configurations, the EC24V supports bumpless transfer to the standby controller upon detection of a primary module fault, with state synchronization latency measured in milliseconds rather than seconds.
• Direct Configuration Download: The module accepts configuration downloads from ABB’s Control Builder engineering tool over the backplane or Ethernet service port without requiring a cold restart in most firmware revisions, enabling parameter updates during scheduled process pauses.
• Integrated Event Logging: A non-volatile event buffer stores timestamped fault records, state transitions, and communication errors with millisecond resolution. This log is retrievable post-fault for root-cause analysis without requiring external data acquisition hardware.
• Scalable I/O Expansion: The EC24V’s backplane bus supports connection to ABB’s full range of S800 I/O modules, allowing the control architecture to scale from a few dozen to several hundred I/O points within a single controller domain without changing the processor card.
• Firmware Version Management: ABB’s asset management tools track firmware versions across all installed EC24V units in a plant, enabling coordinated upgrade campaigns and rollback procedures that maintain system-wide configuration consistency.
• Reduced Spare Parts Inventory Complexity: As a common processor card across both AC800M and Freelance platform variants, a single EC24V spare covers multiple controller types in a mixed-platform plant, simplifying MRO inventory management and reducing carrying costs.

Quality Assurance & Global Logistics

Every ABB EC24V 086362-001 unit supplied by siemensplc.com is sourced from verified channels — authorized distributor overstock, OEM-certified surplus, or direct factory allocation — and undergoes a structured pre-shipment inspection protocol before dispatch from our Xiamen, China facility.

Inspection Protocol: Each unit is visually inspected for PCB integrity, connector pin condition, label authenticity, and serial number legibility. Functional verification is performed where test fixtures are available, with results documented in an inspection record that accompanies the shipment. Anti-static ESD packaging (conductive bag + foam-lined carton) is applied as standard for all electronic module shipments.

Traceability: Serial numbers are cross-referenced against ABB documentation where available. Counterfeit-risk mitigation procedures include UV label verification and component-level visual inspection against known-genuine reference units.

Logistics: Shipments originate from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide Express available as standard carriers. Typical transit times are 3–5 business days to Europe and North America, 2–4 days to Southeast Asia. Export documentation (commercial invoice, packing list, certificate of origin) is prepared to facilitate customs clearance. EXW Xiamen and CIF destination port terms are both available. All shipments include full tracking with proactive status updates.

Warranty: 12 months from the date of shipment. Defective units are eligible for replacement or credit note. Return authorization is issued within 2 business days of a warranty claim submission.
