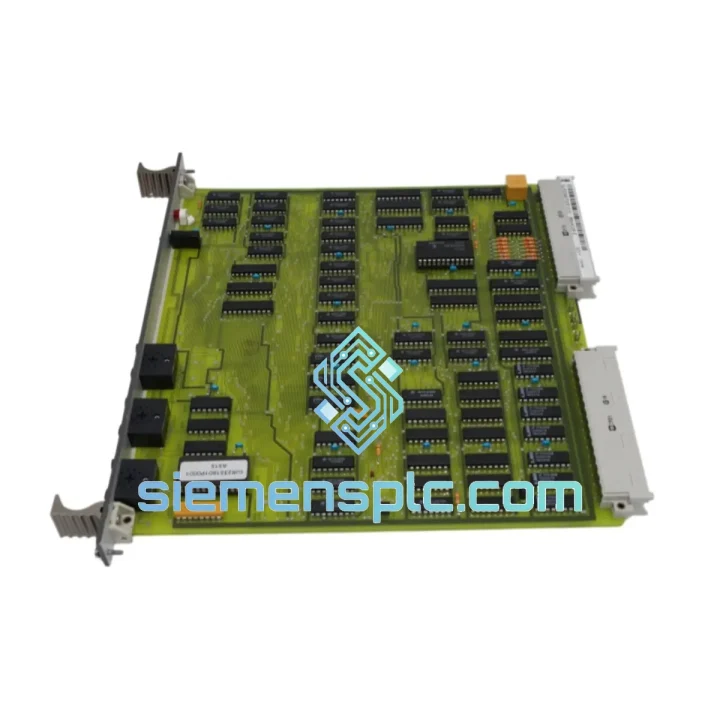

ABB GJR2365700R1010 88VA02A-E PLC Circuit Board

ABB GJR2365700R1010 88VA02A-E — Stop the Clock on Your Downtime

Your AC500 rack just threw a fault. The line is cold. Every minute you spend waiting for a part is money bleeding out of your operation — and you already know it. The ABB GJR2365700R1010 88VA02A-E circuit board is on our shelf in Xiamen right now. We ship same day via DHL Express or FedEx International Priority. That’s the only thing that matters when you’re standing in front of a dead PLC at 2 AM.

This board is the backbone of signal processing and internal bus communication within the ABB AC500 PLC platform — one of the most widely deployed automation controllers across power, water, manufacturing, and infrastructure sectors globally. When it fails, the entire rack can go dark. There is no workaround. You need the exact part, verified genuine, tested, and in your hands fast.

We’ve shipped this exact module to plant engineers in Germany, Malaysia, Brazil, and the UAE — all under emergency conditions. We know what you need and we don’t waste your time.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on ABB AC500 systems, here’s what actually matters when you’re swapping this board under pressure:

1. Confirm the fault before you pull the board. On the AC500 CPU (PM5xx series), check the diagnostic LED pattern first. A solid red SF (System Fault) LED combined with a flashing RUN LED typically points to an internal bus communication failure — which is exactly what this board handles. Pull the diagnostic log via CODESYS or ABB Automation Builder before powering down. You want the fault code on record.

2. Power down the entire rack — not just the CPU. The GJR2365700R1010 sits on the internal backplane bus. Hot-swapping is not supported on this sub-assembly. Cut 24VDC supply to the rack, wait 30 seconds for capacitors to discharge, then proceed.

3. No DIP switches or address configuration required. Unlike some I/O expansion modules, this circuit board does not carry user-configurable addressing. It is a fixed-function sub-assembly. Once seated correctly, the CPU will auto-detect it on next power-up. No jumper changes, no firmware flashing at the board level.

4. Firmware compatibility check. Before ordering, confirm your CPU firmware version in Automation Builder (Help → About → Firmware). The GJR2365700R1010 88VA02A-E is compatible with AC500 firmware V2.x and V3.x. If you’re running a legacy V1.x installation, contact us — we’ll verify compatibility before shipping.

5. Common fault codes associated with this board:

• 0x8200 / Internal Bus Error — Primary indicator of board failure. Check seating first; if reseating doesn’t clear it, the board is the culprit.
• 0x4100 / Communication Timeout — Can appear when the board is partially functional. Often precedes complete failure by 24–72 hours.
• 0x1001 / Hardware Configuration Mismatch — Appears after replacement if the project configuration in Automation Builder doesn’t match the physical rack. Re-download the project after board swap.

6. Post-replacement verification. After installing the new board and powering up, force a full project download from Automation Builder. Do not rely on the existing program in CPU flash — a fresh download ensures the CPU re-initialises all internal bus parameters correctly. Run a 15-minute warm cycle before returning the line to production.

Reliability in Harsh Conditions

ABB designed the AC500 platform for environments that would kill consumer-grade electronics. The GJR2365700R1010 88VA02A-E is built to the same standard. Operating temperature range spans -25°C to +60°C, covering everything from unheated outdoor enclosures in northern climates to hot press rooms in tropical manufacturing facilities. Vibration resistance meets IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), which means it holds up on machine frames with significant mechanical vibration — presses, compressors, conveyor drives.

Humidity tolerance is rated to 95% non-condensing, and the board carries conformal coating on critical circuit areas to resist moisture ingress in high-humidity environments like food processing, chemical plants, and coastal installations. EMC compliance to EN 61000 ensures the board doesn’t introduce noise into sensitive measurement circuits — a common failure point with non-genuine replacement parts.

Every unit we ship has been stored in climate-controlled conditions with ESD protection. We don’t pull boards from open shelves. Anti-static bags, moisture barrier packaging, and foam-lined boxes are standard — not optional.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s how a typical emergency order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express or FedEx International Priority label generated within 2 hours of payment confirmation.
• Transit to Europe (DE, NL, UK, FR): 2–3 business days door-to-door.
• Transit to Southeast Asia (SG, MY, TH, ID): 1–2 business days.
• Transit to Middle East (UAE, SA, QA): 2–4 business days.
• Transit to Americas (US, CA, BR, MX): 3–5 business days.

All shipments include full commercial invoice, packing list, and country-of-origin certificate. For orders requiring import permits or specific customs documentation (e.g., SABER for Saudi Arabia, IMEI for certain markets), contact us before ordering and we’ll prepare the paperwork in parallel with dispatch. Tracking numbers are sent via email and WhatsApp within 1 hour of carrier pickup.

We do not use consolidators or freight forwarders for emergency orders. Every urgent shipment goes direct carrier, priority service, no exceptions.
