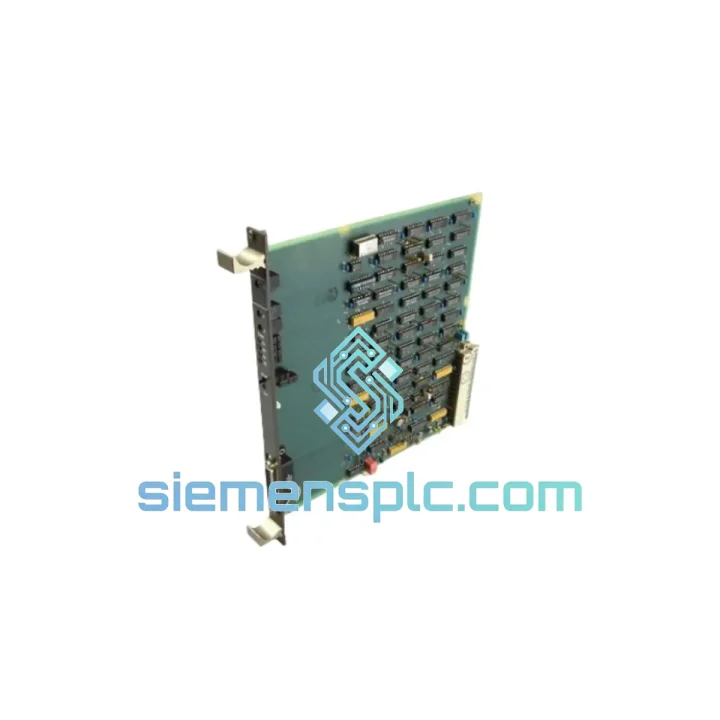

ABB GJR2370800R0200 88FN02A-E Bus Coupling Device – S500 I/O

ABB GJR2370800R0200 88FN02A-E — S500 I/O Bus Coupling Device for Distributed AC500 Control Architectures

In distributed I/O architectures, the bus coupling device occupies a structurally critical position: it is the sole arbitration point between the fieldbus segment and the downstream I/O station. The ABB GJR2370800R0200, catalog reference 88FN02A-E, fulfills this role within ABB’s S500 I/O platform — a modular, DIN-rail-mounted system designed for deterministic data exchange in process-intensive and discrete manufacturing environments. Unlike passive terminal blocks, this module actively manages protocol translation, station addressing, and diagnostic data aggregation, making it a functional node rather than a passive conduit.

The S500 system is engineered to interface with ABB’s AC500 PLC family across multiple fieldbus protocols including PROFIBUS-DP, CANopen, DeviceNet, and PROFINET, depending on the coupler variant. The GJR2370800R0200 88FN02A-E is rated for continuous industrial duty, with a design envelope that accommodates the thermal and electromagnetic stress profiles typical of panel-mounted automation cabinets in oil & gas, power generation, and chemical processing facilities.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The GJR2370800R0200 88FN02A-E operates as a dual-interface bridge: on the fieldbus side, it implements the physical layer and data link layer of the respective protocol stack (e.g., RS-485 differential signaling for PROFIBUS-DP at up to 12 Mbit/s), while on the station side it drives ABB’s proprietary K-Bus — a synchronous, time-deterministic backplane that cycles I/O data at sub-millisecond intervals independent of fieldbus cycle time.

Optical Isolation Architecture: The boundary between the fieldbus interface and the K-Bus logic is galvanically isolated via optocoupler arrays. This isolation barrier — typically rated at 500 V AC or higher — prevents ground loop currents and common-mode transients originating from field cabling from propagating into the backplane logic. In environments with variable-frequency drives (VFDs) or large inductive loads, this isolation is the primary defense against data corruption and hardware damage.

Station Address Management: The module stores its PROFIBUS node address or CANopen node ID in non-volatile EEPROM, eliminating address loss during power cycling. Address assignment is performed via rotary DIP switches on the module face, providing a hardware-locked configuration that cannot be overwritten by software errors or PLC program faults — a critical feature in safety-adjacent applications.

Watchdog and Fail-Safe Logic: An internal hardware watchdog monitors fieldbus communication continuity. If the master fails to poll the station within the configured watchdog timeout (configurable from 10 ms to several seconds), the coupler autonomously drives all connected output modules to their defined safe states — typically de-energized — without requiring CPU intervention. This behavior is implemented in dedicated firmware logic, not in the PLC application program, ensuring fail-safe response even during CPU faults.

EMC Design: The module housing incorporates a grounded metal shield on the fieldbus connector side, and the PCB layout follows IEC 61000-4-4 burst immunity guidelines with transient suppression diodes (TVS) on all external-facing signal lines. Ferrite beads on the K-Bus power rails attenuate high-frequency conducted emissions generated by adjacent switching power supplies.

System Integration Benefits

• Deterministic Cycle Time Decoupling: The K-Bus operates on a fixed internal scan cycle independent of fieldbus traffic, ensuring that I/O data latency is bounded and predictable regardless of fieldbus load or network congestion.
• Transparent Diagnostic Reporting: The module maps station-level diagnostics — including module fault flags, power supply status, and communication errors — directly into the PROFIBUS diagnostic telegram (DPV1), making fault data immediately visible in the PLC engineering tool without additional polling logic.
• Hot-Swap Module Replacement: S500 I/O modules connected downstream can be replaced under power without removing the bus coupler or interrupting fieldbus communication, reducing maintenance downtime to the time required for physical module swap.
• Scalable Station Expansion: A single GJR2370800R0200 coupler supports up to 10 S500 I/O modules per station, with aggregate I/O capacity determined by the downstream module mix — enabling compact stations for simple applications and fully populated stations for complex process cells.
• Multi-Protocol Ecosystem Compatibility: The S500 platform supports coupler variants for PROFIBUS-DP, CANopen, DeviceNet, Modbus RTU, and PROFINET, allowing the same I/O module hardware to be reused across different fieldbus architectures by swapping only the coupler — protecting hardware investment during system migrations.
• Integrated Power Distribution: The coupler distributes 24 V DC logic power to all downstream I/O modules via the K-Bus rail, eliminating the need for individual power wiring to each module and simplifying cabinet layout.
• Engineering Tool Integration: The module is fully described by a GSD (General Station Description) file for PROFIBUS or an EDS file for CANopen/DeviceNet, enabling drag-and-drop configuration in ABB Automation Builder, Siemens TIA Portal (as a third-party device), and other IEC 61158-compliant engineering environments.
• Redundancy-Ready Architecture: In high-availability configurations, the S500 platform supports media redundancy at the fieldbus level (MRP for PROFINET variants), and the coupler’s non-volatile address storage ensures seamless failover without manual reconfiguration after a standby unit takes over.

Quality Assurance & Global Logistics

Every ABB GJR2370800R0200 88FN02A-E unit supplied by siemensplc.com is sourced through verified channels with full part traceability. Pre-shipment inspection covers label authenticity verification against ABB’s serialization database, physical connector integrity check (pin alignment, locking tab condition), and power-up functional test confirming K-Bus initialization and fieldbus address broadcast.

Units are packed in anti-static PE foam inserts within double-wall corrugated cartons, conforming to ISTA 2A transit testing standards. For international shipments from our Xiamen, China warehouse, we partner with DHL Express, FedEx International Priority, and UPS Worldwide Expedited — with typical transit times of 3–5 business days to Europe and North America. Air freight with full AWB tracking is standard; sea freight consolidation is available for bulk orders exceeding 20 units. All shipments include a commercial invoice, packing list, and certificate of conformance. A 12-month warranty against manufacturing defects is provided from the date of shipment, with advance replacement available for critical production environments upon agreement.
