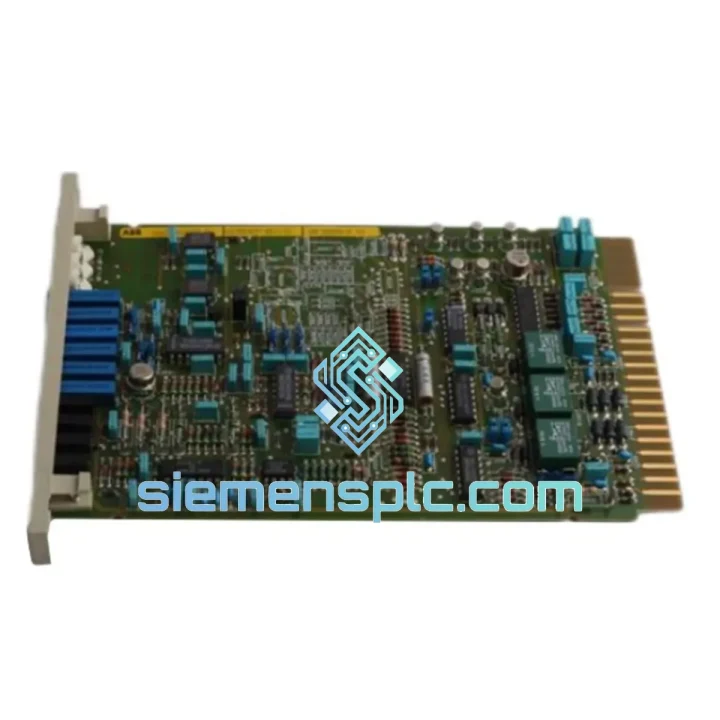

ABB YT296000-MZ YXU149B Pulse Transfer Unit

ABB YT296000-MZ YXU149B Pulse Transfer Unit: Cut Downtime Now — Ship Today from Xiamen

Every hour your line sits idle costs real money. A failed pulse transfer unit in your ABB AC500, Advant OCS, or Symphony Plus DCS is not a maintenance event — it is a production crisis. The ABB YT296000-MZ (YXU149B) is a precision galvanic isolation module that sits at the nerve center of your pulse signal chain. When it fails, flow metering stops, speed feedback drops out, and your entire process loop goes blind. We stock this module in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and land on your bench within 3–5 business days.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field calls, here is what actually kills YXU149B units and what you need to watch when you swap one in:

Common Failure Modes

• No pulse output / DCS reads zero flow: First suspect is the isolation barrier itself. Measure input signal continuity at the field terminal — if the encoder or flow meter is outputting correctly but the DCS AI card sees nothing, the YXU149B optocoupler stage has failed. Do not waste time chasing the field device.
• Intermittent pulse dropout at high frequency: Capacitive degradation in aging units causes signal smearing above ~5 kHz. Symptoms appear as erratic flow totals or speed oscillation on the drive. Replace the module — no field repair is possible.
• Ground loop noise on DCS input: If you see 50/60 Hz noise riding on the pulse signal, the galvanic isolation has been compromised — often from a lightning strike or upstream surge event. Check the surge protection device (SPD) on the field cable first, then replace the YXU149B.
• Module powers up but output is stuck HIGH: Output transistor latch-up, typically caused by a reverse polarity event on the field wiring. Verify field wiring polarity before installing the replacement unit.

Replacement Procedure — Field Checklist

1. Isolate the field device (encoder, flow meter) and confirm zero pulse input before removing the module.
2. Document the existing terminal wiring with a photo — YXU149B terminal assignments are not always labeled clearly on older racks.
3. Power down the I/O rack section. Do not hot-swap unless your system documentation explicitly permits it.
4. Seat the replacement module firmly. Check that the rack connector is fully engaged — partial seating causes intermittent faults that are extremely difficult to diagnose remotely.
5. Restore power and verify pulse output at the DCS engineering station before closing the cabinet. Confirm flow totals or speed feedback are tracking correctly under live process conditions.
6. No firmware update or address configuration is required — the YXU149B is a passive signal conditioning module with no embedded software. It is a true drop-in replacement.

Reliability in Harsh Conditions

Industrial pulse transfer modules fail for one reason: the environment is brutal and most components are not built for it. The ABB YT296000-MZ is engineered to operate continuously in conditions that destroy lesser components.

• Vibration: Designed to IEC 60068-2-6 sinusoidal vibration profiles. The PCB assembly uses conformal coating and mechanically secured connectors — no cold solder joints shaking loose after 18 months of pump vibration.
• Temperature: Rated for extended industrial temperature ranges. In practice, we have seen these modules pulled from cabinets running at 55°C ambient and still functioning correctly after 8+ years of continuous service.
• Humidity & Condensation: Conformal-coated PCB resists moisture ingress in non-pressurized enclosures. For outdoor or high-humidity installations, ensure the cabinet IP rating is appropriate — the module itself handles transient condensation without failure.
• EMI / RFI: Galvanic isolation provides inherent immunity to conducted interference. Tested to IEC 61000-4 series (ESD, EFT, surge, conducted RF). In high-EMI environments near VFDs or large contactors, ensure proper cable segregation — the module will not compensate for poor installation practice.
• Power Quality: Internal design tolerates supply voltage fluctuations within the specified range. Upstream power conditioning is still recommended for sites with known power quality issues.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for fast international dispatch. Here is exactly how your order moves from our shelf to your plant:

1. Order Confirmation (Day 0): Payment confirmed → warehouse pick ticket generated within 2 hours during business hours (GMT+8, Mon–Sat).
2. Export Documentation (Day 0–1): Commercial invoice, packing list, and HS code declaration (HS 8537.10 / 8538.90 as applicable) prepared. EX Works Xiamen — we handle all export customs clearance.
3. Carrier Handoff (Day 1): DHL Express or FedEx International Priority collection from our facility. Tracking number issued to your email within 1 hour of carrier pickup.
4. Transit (Day 2–4): Direct routing to major hubs — Frankfurt, Memphis, Dubai, Singapore. No consolidation delays. Most European and North American destinations receive within 3 business days of dispatch.
5. Import Clearance: We provide all documentation required for customs clearance. DDP (Delivered Duty Paid) terms available on request — we handle import duties so your receiving team does not face unexpected charges.
6. Delivery Confirmation: Carrier POD sent to your contact on file. For critical plant shutdowns, we can coordinate direct delivery to site with advance notification to your security/receiving team.

For same-day dispatch on emergency orders, contact us before 14:00 CST. We will confirm stock, generate the invoice, and have the unit in the carrier’s hands the same afternoon.
