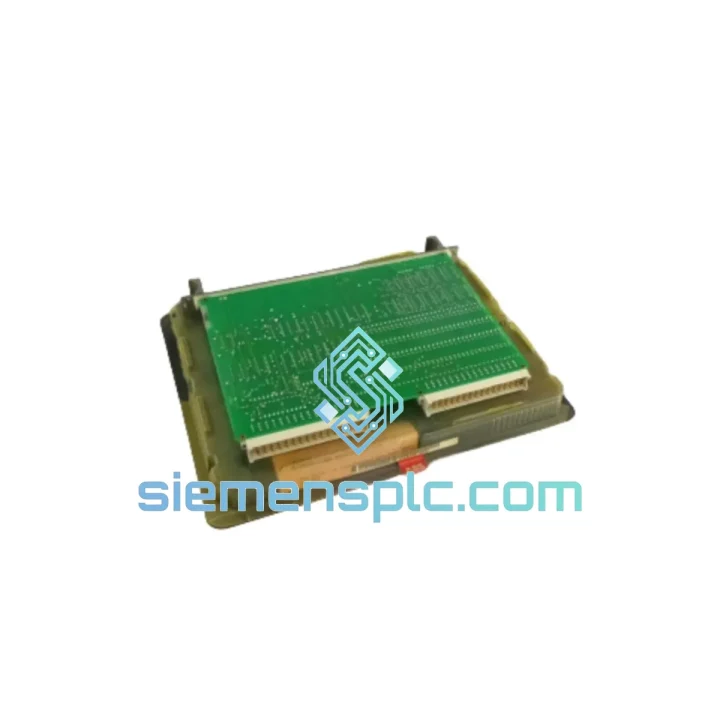

ABB GKWE850000R0100 81EB10D DC Drive Control Module – DCS800 Series

ABB GKWE850000R0100 81EB10D: Gate-Drive and Signal-Conditioning Assembly for DCS800-Series DC Drive Systems

The ABB GKWE850000R0100 81EB10D is a purpose-built control assembly module that occupies the gate-drive coordination and analog signal-conditioning layer within ABB’s DCS800 DC drive platform. Unlike generic interface boards, this module is factory-calibrated to the DCS800 backplane timing architecture, where it receives torque demand and speed reference data from the SDCS-CON main controller and translates those values into precisely timed thyristor firing commands. The hardware revision suffix 81EB10D identifies a specific PCB iteration with defined component tolerances, optocoupler part numbers, and firmware handshake compatibility — all of which must be matched when sourcing replacement units for installed drives.

DC drive applications that depend on this module include continuous-process industries such as metals rolling mills, paper machine drives, mine hoists, and large-scale HVAC fan drives where armature current control accuracy directly determines product quality or operational safety margins. In these environments, the GKWE850000R0100 functions as the deterministic bridge between the digital control domain and the high-voltage thyristor power stage, a role that demands sub-millisecond timing consistency across the full operating temperature range.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The GKWE850000R0100 81EB10D integrates several discrete hardware subsystems onto a single PCB substrate. Understanding each subsystem’s design logic is essential for maintenance engineers evaluating compatibility and failure-mode behavior.

Zero-Crossing Synchronization Circuit: The module derives its firing-angle reference from a zero-crossing detector locked to the AC supply frequency (50 Hz or 60 Hz, auto-detected). The zero-crossing signal is filtered through a second-order active low-pass filter to suppress high-frequency noise from nearby switching equipment before being fed to the firing-angle computation logic. This ensures that supply-frequency disturbances — common in industrial facilities with large motor loads — do not introduce phase jitter into the thyristor conduction sequence. Firing angle α is resolved to better than 0.1° of electrical cycle, which at 50 Hz corresponds to a timing resolution of approximately 5.6 µs.

Split Ground-Plane EMC Architecture: The PCB employs a split ground-plane topology with a single star-point connection between the analog signal ground and the digital logic ground. This layout prevents return currents from the digital switching circuits from flowing through the analog measurement ground, which would otherwise introduce millivolt-level offsets into the speed feedback and current measurement signals. Ferrite bead filters (impedance ≥600 Ω at 100 MHz) are placed on all inter-board signal lines at the backplane connector to suppress common-mode conducted EMI — a necessary measure in drive cabinets where gate-drive switching transients can reach dV/dt values exceeding 1 kV/µs on adjacent busbars.

Optocoupler Gate Drive Isolation: Each thyristor gate channel is driven through a dedicated high-speed optocoupler with a current transfer ratio (CTR) selected for consistent operation across the full operating temperature range. The optocoupler output stage drives a gate pulse transformer, which provides a second galvanic isolation barrier and impedance matching to the thyristor gate-cathode circuit. This dual-isolation architecture ensures that fault currents in the power circuit cannot propagate back into the control electronics, protecting the SDCS-CON main controller from damage during thyristor commutation failures.

Hardware Watchdog and Gate-Block Logic: An independent hardware watchdog monitors the heartbeat signal from the SDCS-CON controller at a fixed polling interval. If the heartbeat is absent for longer than the configured timeout (typically 20–50 ms, drive-parameter dependent), the watchdog asserts a gate-block output that inhibits all thyristor firing pulses simultaneously. This hardware-level interlock operates asynchronously from the drive’s software state machine, providing a fail-safe coasting stop that is immune to firmware hangs or communication bus faults. The gate-block state is latched and requires an explicit reset command from the controller to clear, preventing automatic restart after a watchdog trip.

NTC Thermistor Interface and Thermal Derating Logic: The module includes a precision NTC thermistor input circuit with a linearization network that converts the thermistor’s nonlinear resistance-temperature characteristic into a linear voltage signal suitable for the backplane ADC. The digitized temperature value is reported to the main controller at each control cycle, enabling the drive’s thermal model to apply current derating before the hardware over-temperature threshold is reached. This predictive derating approach extends thyristor and heatsink service life in applications with cyclic load profiles, such as crane hoists or rolling mill reversing drives.

System Integration Benefits

• Cycle-Accurate Firing Angle Delivery: Hardware-synchronized zero-crossing detection eliminates the scheduling latency inherent in software-based firing angle computation. Thyristor conduction angles are consistent to within ±0.1° cycle-to-cycle, reducing torque ripple at low speeds — a measurable advantage in tension-controlled winding applications where armature current ripple translates directly to web tension variation.
• Standardized Backplane Connector for Rapid Field Replacement: The GKWE edge connector is mechanically and electrically standardized across the DCS800 module family. A trained technician can remove and reseat the module in under 15 minutes without any rewiring, reducing mean time to repair (MTTR) in unplanned outage scenarios.
• Dual Galvanic Isolation Barrier: The combination of optocoupler and gate pulse transformer isolation between the control domain and the thyristor power circuit prevents ground-loop currents from corrupting analog feedback signals — a failure mode that is particularly prevalent in installations where drive cabinets share a common earth conductor with instrumentation panels or DCS I/O marshalling cabinets.
• Firmware-Transparent Gate Drive Operation: The module’s gate-drive hardware functions are independent of the drive’s application firmware version. Only the parameter dataset stored in the SDCS-CON controller requires updating during a firmware upgrade, preserving the module’s operational continuity and eliminating the need for module-level firmware flashing during routine software maintenance.
• Structured Fault Code Mapping: Fault conditions detected by the module — including gate-drive open-circuit, thermistor wire-break, and watchdog timeout — are mapped to ABB’s standard DCS800 fault code table. Maintenance personnel can cross-reference fault codes directly against the published hardware manual without proprietary diagnostic software, reducing diagnostic time during unplanned stops.
• Predictive Thermal Derating: Continuous heatsink temperature reporting to the main controller enables current derating before hardware trip thresholds are reached. In cyclic-load applications, this extends thyristor service intervals and reduces the frequency of thermal-stress-induced nuisance trips that would otherwise require manual reset and production restart.
• Consolidated Bill of Materials for Spare-Parts Planning: The GKWE850000R0100 integrates gate-drive, signal conditioning, and thermal monitoring functions that in earlier drive generations required separate discrete boards. A single module line item in the plant’s critical-spares inventory replaces what would otherwise be two or three separate part numbers, simplifying procurement and reducing carrying costs.
• ESD-Compliant Packaging and Handling: All units are shipped in anti-static shielding bags with humidity indicator cards, conforming to ANSI/ESD S20.20 handling requirements. This is a non-negotiable requirement for installations in semiconductor fabrication facilities, pharmaceutical cleanrooms, or any environment where ESD damage to control electronics carries disproportionate replacement and requalification costs.
• Long-Term OEM Supply Chain Continuity: ABB maintains production and service support for DCS800-family modules through its extended product lifecycle program, with published end-of-life timelines communicated to registered asset owners. Procurement teams can structure multi-year spare-parts strategies with documented supply chain visibility rather than relying on spot-market availability.
