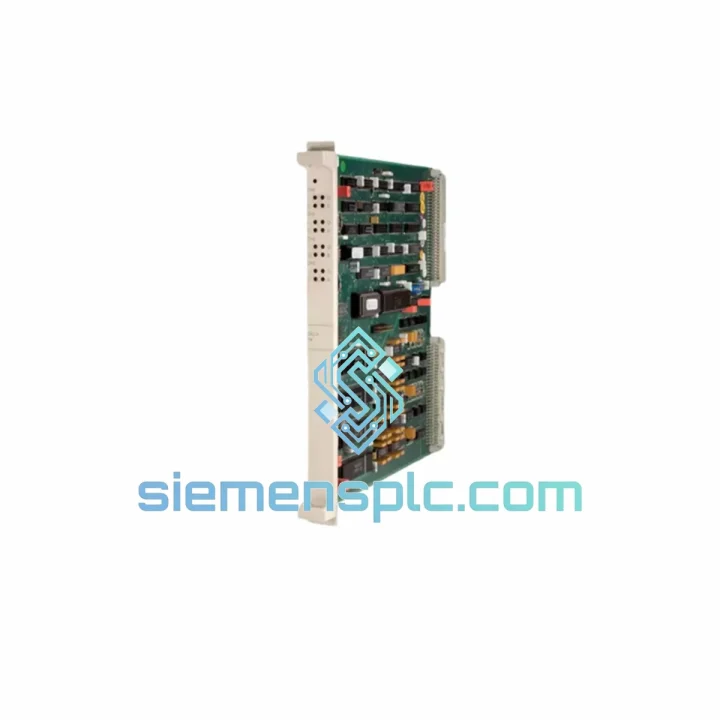

ABB Harmony-07 DCS Control Module – Harmony Series

ABB Harmony-07 DCS Control Module: Core Process Controller in Distributed Automation Architectures

The ABB Harmony-07 is a dedicated control module within ABB’s Harmony Series distributed control system (DCS) platform — a field-proven architecture deployed across power generation, oil & gas, chemical processing, and pulp & paper facilities globally. Within a Harmony Series control loop, the Harmony-07 functions as a primary process execution unit, responsible for executing control algorithms, managing I/O data exchange across the backplane bus, and maintaining deterministic scan-cycle timing under continuous industrial load.

Unlike general-purpose PLCs that rely on software-configurable I/O mapping at runtime, the Harmony-07 operates within a hardware-defined module slot architecture. Each module position on the Harmony Series carrier board is electrically assigned to a specific functional role — power, communication, or process I/O — eliminating address conflicts and reducing commissioning ambiguity in multi-loop installations. The module’s internal firmware manages real-time data arbitration between field instruments and the DCS supervisory layer, maintaining loop integrity even during partial system faults or communication degradation events.

In process-critical environments where scan-cycle jitter above 5 ms can trigger false alarms or destabilize PID control loops, the Harmony-07’s deterministic execution model provides the timing consistency that field engineers require. Its hardware architecture supports both simplex and redundant configurations, allowing system designers to specify the appropriate fault-tolerance level based on process criticality and SIL classification requirements.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The Harmony-07’s hardware design reflects ABB’s engineering discipline in three specific areas that distinguish it from commodity control modules:

Backplane Bus Arbitration: The Harmony Series backplane operates as a time-division multiplexed (TDM) data bus. The Harmony-07 contains dedicated bus arbitration logic that negotiates slot priority during each scan cycle. This prevents data collision between adjacent modules and ensures that high-priority I/O channels — typically safety-related or fast-response analog inputs — receive guaranteed bus access within each execution window. The arbitration hardware is implemented in discrete logic rather than firmware, making it immune to software faults that could otherwise delay critical data transfers.

EMC and Signal Isolation Architecture: Field-side signal inputs on the Harmony-07 pass through optocoupler-based galvanic isolation barriers before reaching the module’s internal logic circuitry. This isolation architecture provides a minimum 500 V_rms working isolation between field wiring and the control bus, protecting the DCS backplane from ground loops, common-mode transients, and surge events originating at field instrument terminals. The isolation barrier also attenuates high-frequency conducted noise — a common source of ADC measurement error in electrically noisy plant environments such as motor control centers and variable-frequency drive (VFD) installations.

Watchdog and Fault Detection Logic: An independent hardware watchdog timer monitors the module’s internal processor execution cycle. If the processor fails to reset the watchdog within the configured timeout window — indicating a firmware hang, memory fault, or bus communication failure — the watchdog asserts a hardware fault signal to the Harmony Series system controller. This triggers a controlled module failover sequence without requiring operator intervention, maintaining process continuity in redundant configurations. The fault event is simultaneously logged to the DCS event journal with a timestamp resolution of 1 ms, providing precise fault chronology for post-incident analysis.

Thermal Management: The module’s PCB layout places high-dissipation components — primarily the backplane interface driver ICs and analog signal conditioning circuits — along the module’s ventilation axis, aligned with the natural convection airflow path within the Harmony Series enclosure. This passive thermal management approach eliminates the need for forced-air cooling fans, which are a known reliability liability in continuous-duty industrial applications due to bearing wear and contamination ingress.

System Integration Benefits

• Deterministic Scan-Cycle Execution: The Harmony-07 maintains consistent control loop execution timing regardless of I/O channel load, preventing scan-cycle jitter from propagating into PID output instability in tight process control applications.
• Transparent Diagnostic Reporting: Module health status, channel-level fault codes, and communication error counters are exposed to the DCS supervisory layer via the Harmony Series diagnostic protocol, enabling maintenance teams to identify degrading hardware before it causes a process trip.
• Hot-Swap Capability: In redundant Harmony Series configurations, the Harmony-07 supports live module replacement without requiring a system shutdown, reducing planned maintenance windows and eliminating the production loss associated with cold-swap procedures.
• Backward Compatibility: The Harmony-07 is electrically and mechanically compatible with existing Harmony Series carrier boards and power supply modules, allowing direct drop-in replacement in installed systems without carrier board modification or firmware re-flashing of adjacent modules.
• Scalable Redundancy: The module supports both 1:1 hot-standby redundancy and N+1 spare configurations, giving system architects flexibility to match redundancy cost to process criticality without redesigning the control cabinet layout.
• Integrated HART Pass-Through: Where the system configuration includes HART-capable I/O channels, the Harmony-07 passes HART secondary variable data to the DCS historian without requiring a separate HART multiplexer, reducing panel wiring complexity and hardware BOM cost.
• Event Logging with 1 ms Resolution: All module-level fault events, I/O state changes, and communication alarms are time-stamped at 1 ms resolution and forwarded to the DCS sequence-of-events (SOE) recorder, supporting post-trip analysis and regulatory compliance reporting.
• Reduced Commissioning Time: The slot-addressed hardware architecture eliminates manual I/O address assignment during commissioning. The DCS engineering workstation automatically recognizes the Harmony-07 upon insertion and loads the pre-configured channel parameters from the project database, reducing per-module commissioning time from hours to minutes.

Quality Assurance & Global Logistics

Every ABB Harmony-07 unit supplied by siemensplc.com is sourced exclusively through verified OEM supply channels. Units are inspected upon receipt against ABB’s published physical identification criteria — including label format, serial number structure, PCB revision markings, and component placement — to confirm authenticity before entering our inventory. No grey-market, counterfeit, or unverified surplus units are accepted into stock.

Pre-shipment functional verification is performed on each unit using Harmony Series test fixtures that simulate backplane bus communication and I/O channel response. Units that fail any verification step are quarantined and not offered for sale. Each shipped unit is accompanied by available OEM documentation, including datasheet references and, where available, original ABB test records.

Packaging follows IEC 60068-2 transport protection standards: anti-static shielding bag, foam-lined rigid carton, and moisture-barrier outer packaging. For international air freight shipments, units are packed to withstand the pressure differential and handling conditions of commercial air cargo. Export documentation — commercial invoice, packing list, and HS code declaration — is prepared to comply with Chinese customs export regulations and destination country import requirements.

Shipments originate from our warehouse in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Standard transit times to major industrial hubs: Europe 3–5 business days, Southeast Asia 2–3 business days, Middle East 4–6 business days, North America 4–6 business days. Emergency same-day dispatch is available for orders confirmed before 14:00 CST.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and premature component failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched from stock where available to minimize customer downtime.
