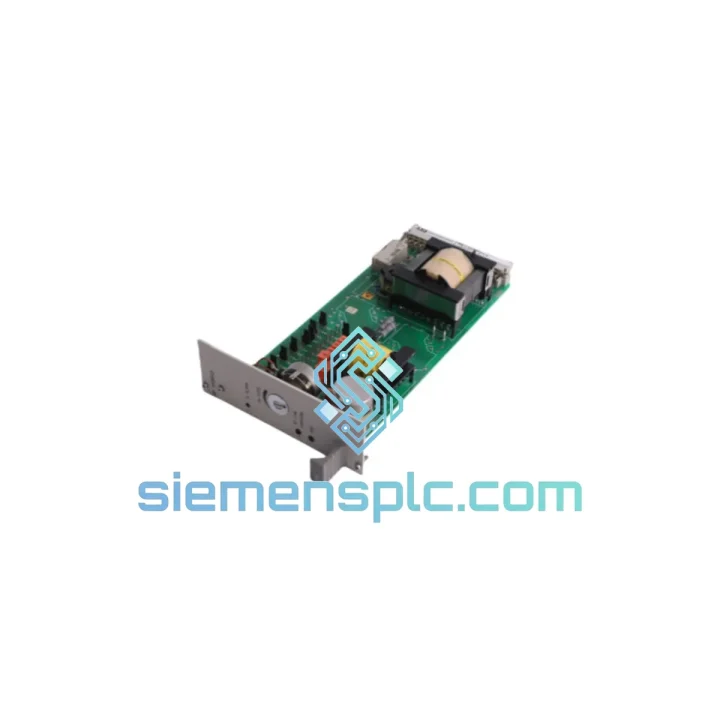

ABB HENF209568R0001 P3LB Hybrid Board

ABB HENF209568R0001 P3LB — Stop the Clock on Your Downtime. Ship Today.

Every hour your line sits idle costs real money. When an ABB Advant DCS node goes dark because the P3LB hybrid board fails, you don’t have time for a 6-week factory lead time. We stock HENF209568R0001 P3LB in Xiamen and can have it on a DHL or FedEx flight within 24 hours of order confirmation. That’s the difference between a shift delay and a week-long production loss.

The HENF209568R0001 P3LB is a hybrid I/O board used inside ABB’s Advant OCS and HENF-series distributed control architectures. It handles mixed analog and digital signal routing between field instruments and the controller backplane. When this board fails — and it does fail, usually from capacitor aging, connector oxidation, or a surge event — the entire I/O node it serves goes offline. There is no graceful degradation. You need a replacement, and you need it fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the board, confirm the fault is actually the P3LB and not a backplane or power supply issue. Here’s the field sequence that saves you from swapping a good board:

Step 1 — Isolate the fault. Check the ABB Advant system log for I/O node fault codes. Codes in the range ERR 4x / ERR 5x on the affected node typically point to a hybrid board communication failure rather than a field wiring fault. If you’re seeing ERR 41 (I/O board not responding) or ERR 52 (hybrid board checksum error), the HENF209568R0001 P3LB is the primary suspect.

Step 2 — Power down the node correctly. The P3LB does not support hot-swap. Initiate a controlled node shutdown from the Advant engineering station before touching the board. Pulling it live risks corrupting the backplane EEPROM on older rack revisions.

Step 3 — Check the DIP switch configuration. The P3LB carries a node address DIP switch bank on the board edge. Before inserting the replacement, photograph the switch positions on the failed board. The new board ships in factory default (all OFF). You must replicate the original address settings exactly — a mismatch will cause the controller to reject the node on startup with a duplicate address or unknown node fault.

Step 4 — Inspect the backplane connector. HENF backplane connectors are gold-plated but accumulate oxidation in humid environments. Use IPA and a lint-free swab on the female backplane socket before seating the new board. A high-resistance connection here will cause intermittent ERR 41 faults even with a good replacement board.

Step 5 — Firmware compatibility check. If your Advant system is running a firmware revision below 3.x on the CPU module, verify P3LB hardware revision compatibility with ABB’s HENF compatibility matrix. Boards with hardware revision suffix R0001 are compatible with all Advant firmware from 2.4 onward. No firmware update is required for a like-for-like swap.

Step 6 — Post-installation diagnostics. After power-up, monitor the node status for 10 minutes. The P3LB runs a self-test cycle on boot. A solid green LED on the board face indicates normal operation. A flashing amber indicates the board is in address-learning mode — recheck your DIP switch settings. A solid red means the board has failed its internal RAM test; contact us for an immediate exchange.
