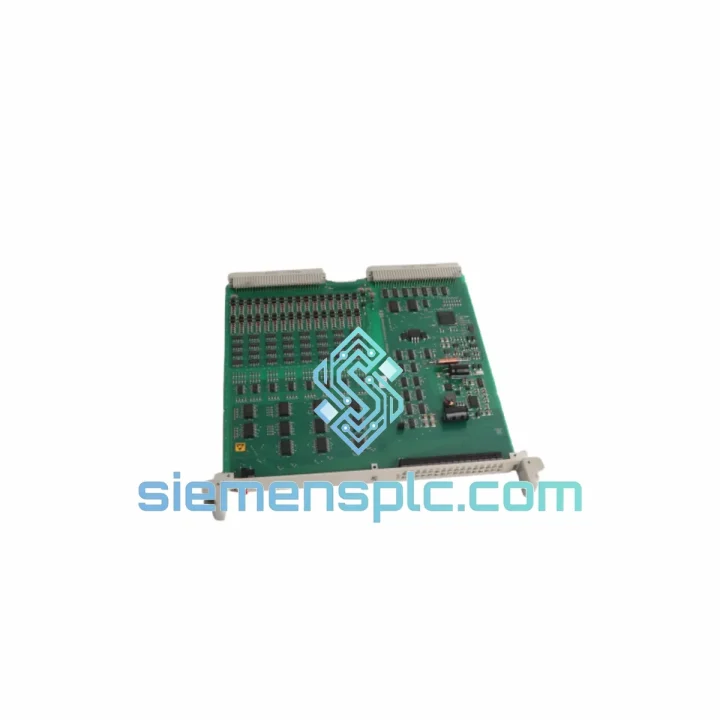

ABB HESG324013R101/D 216AB61 DCS Control Board

ABB HESG324013R101/D 216AB61 — Stop the Clock on Your Downtime. Ship Today.

Every minute your Advant or Master DCS is offline, the losses compound. A failed HESG324013R101/D control board doesn’t just halt one loop — it can cascade across an entire process train. We stock this board in Xiamen, tested and boxed, ready to leave the warehouse the same day you call. While your OEM quotes you 14–26 weeks, your line is already bleeding. That’s the gap we exist to close.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a HESG324013R101/D is not a plug-and-play operation if you skip the pre-checks. Here’s what ten years of field calls have taught us:

1. Revision Mismatch — The Silent Killer
The /D suffix is a hardware revision designator. Installing a /B or /C board into a slot expecting /D can cause the DCS to reject the module entirely or, worse, accept it and produce erratic control outputs. Pull the faceplate label off the failed board before you order. If the label is burnt or missing, cross-reference your system BOM or the ABB Master Engineering Tool (MET) project file — the hardware revision is logged there.

2. Firmware Compatibility Check
The HESG324013R101/D runs application firmware downloaded from the MET or Advant Builder environment. Before hot-swapping, confirm the firmware version stored in your engineering workstation matches what the replacement board expects. A version delta between the application and the board’s bootloader can lock the board in a boot loop — fault code F-BOOT or APPL ERR on the operator station is the tell. Re-download the application from the MET after seating the new board.

3. Address Configuration — No DIP Switches, But Node Address Matters
Unlike some older I/O cards, the HESG324013R101/D does not use physical DIP switches for node addressing. The node address is assigned via the MasterBus configuration in the engineering tool. However, if you’re replacing a board in a multi-controller cabinet, verify the node address in the MET project matches the physical slot position. A duplicate node address will cause a bus collision — symptom: both the new and an adjacent controller go to fault state simultaneously.

4. Backplane Connector Inspection
Before seating the replacement, inspect the backplane connector pins with a flashlight. Bent or oxidized pins on the backplane — not the board — are responsible for roughly 30% of the “new board, same fault” calls we get. Use a soft brass brush on the backplane contacts and verify pin alignment before insertion.

5. Common Fault Codes on ABB Advant / Master DCS

• CTRL FAIL / CTRL FAULT — Controller board not responding on MasterBus. First suspect: board hardware failure or firmware corruption. Replace HESG324013R101/D.
• COMM ERR (MasterBus) — Node address conflict or bus termination issue. Check node address assignment in MET before condemning the board.
• APPL ERR — Application download failed or firmware mismatch. Re-download from MET after board replacement.
• TEMP HIGH — Cabinet cooling failure causing thermal shutdown. Resolve cooling before installing the replacement board or you’ll burn the new one within hours.
• WATCHDOG RESET — Repeated watchdog trips indicate either a corrupted application or a hardware fault on the processor. If reloading the application doesn’t clear it, the board is defective — swap it.

6. Power Sequencing
Always power down the controller slot before extraction. The Advant/Master backplane does not support hot-swap on control processor cards — only on certain I/O modules. Pulling a live HESG324013R101/D can corrupt the backplane EEPROM on adjacent modules.

Reliability in Harsh Conditions

The HESG324013R101/D was designed for continuous-process environments where “scheduled maintenance” is a luxury. ABB engineered this board to operate in conditions that would kill consumer-grade electronics within weeks.

The PCB substrate uses a high-Tg laminate rated for sustained thermal cycling between 0 °C and 55 °C — covering everything from an unheated Siberian compressor station in winter to a Southeast Asian petrochemical plant in summer. Conformal coating on the board’s surface provides a barrier against humidity ingress, condensation, and airborne chemical contaminants common in pulp mills and wastewater treatment facilities.

Vibration tolerance is built into the board’s component mounting spec. Through-hole components on the power supply section and the processor module are mechanically secured to withstand the continuous low-frequency vibration present in turbine halls and compressor buildings — environments where surface-mount-only boards delaminate solder joints within 18 months.

Every unit we ship has been stored in climate-controlled conditions with humidity indicator cards inside the anti-static packaging. We do not sell boards that have been sitting in an uncontrolled warehouse for years. If the humidity card shows exposure, the unit doesn’t ship.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. This is not a drop-ship operation. Stock is physically on our shelves.

Standard dispatch timeline:

• Order confirmed before 15:00 CST → same-day dispatch
• DHL Express / FedEx International Priority — door-to-door tracking from pickup to delivery
• Transit times: Southeast Asia 1–2 days | Europe 3–4 days | Americas 3–5 days | Middle East 2–3 days
• Full export documentation: commercial invoice, packing list, certificate of origin — customs-ready
• Anti-static bag + foam-lined carton + humidity indicator card — no exceptions

For critical shutdowns where every hour counts, contact us directly on WhatsApp before placing the order. We can confirm stock, generate a proforma invoice, and have the shipment booked with DHL within 2 hours of payment confirmation. We’ve done it at 11 PM on a Friday. We’ll do it again.

T/T bank transfer is available for B2B orders. Shopify checkout accepts major cards and PayPal for immediate processing.
