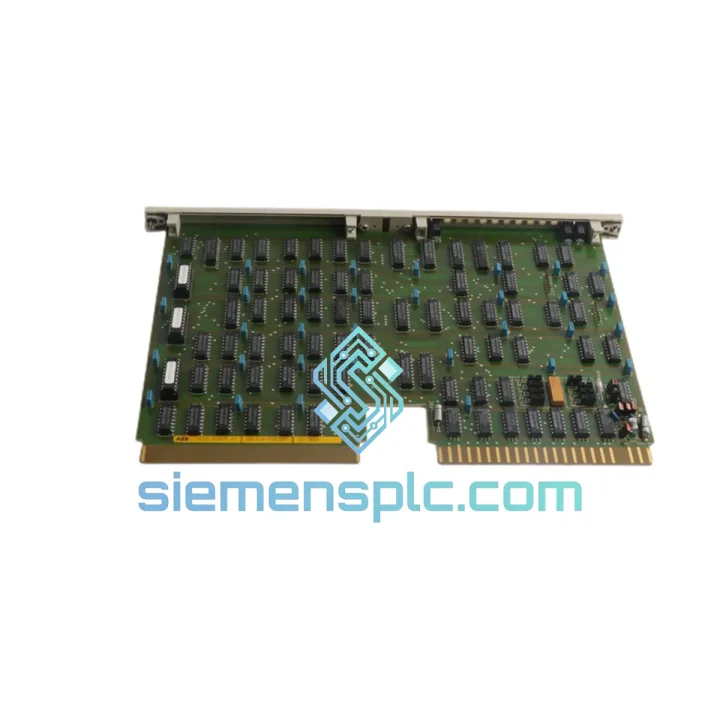

ABB HESG330015R1 ED1833 DCS PC Board – Advant Master Series

ABB HESG330015R1 ED1833: Signal Conditioning and I/O Interface Board in Advant Master DCS Architecture

The HESG330015R1 ED1833 is a printed circuit board assembly produced by ABB for deployment within the Advant / Master distributed control system platform. Its primary function within the control loop is to serve as the hardware boundary between field-level analog and digital signals and the controller’s internal data bus. The board handles signal conditioning, galvanic isolation, and analog-to-digital conversion for process variables originating from transmitters, actuators, and field instruments. In a typical Advant OCS rack configuration, this module occupies a defined slot in the I/O sub-rack, where it communicates with the controller CPU via the S100 or S800 backplane bus at deterministic scan intervals — typically 10 ms to 100 ms depending on the configured task cycle. The ED1833 hardware revision designates a specific PCB layout and component population that aligns with a defined firmware compatibility window within ABB’s hardware matrix, ensuring predictable behavior when integrated into existing Advant installations without requiring controller firmware updates.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The HESG330015R1 ED1833 board architecture reflects ABB’s design philosophy for high-availability process control: deterministic signal handling with hardware-enforced fault containment. Several design characteristics are worth examining at the circuit level.

Opto-coupler Isolation Architecture: Each I/O channel group on the HESG330015R1 passes through dedicated opto-coupler stages. This galvanic isolation barrier — typically rated at 500 V DC or higher between field and logic sides — prevents ground loop currents and common-mode transients from propagating into the controller backplane. In refinery and power generation environments where ground potential differences between field instruments and control room panels can reach tens of volts, this isolation layer is not optional; it is the primary EMC defense mechanism at the hardware boundary.

EMC Shielding and PCB Layout: The ED1833 revision PCB uses a multi-layer stackup with dedicated ground planes separating analog signal traces from digital logic domains. High-frequency switching noise from the backplane bus is attenuated by ferrite bead filters on the power supply rails entering the analog section. Trace routing follows a star-ground topology at the analog reference point, minimizing return current coupling between channels — a design discipline that directly reduces cross-talk error in multi-channel analog input configurations.

Backplane Bus Arbitration: Communication with the Advant controller CPU occurs over the S100/S800 backplane bus using a time-division multiplexed protocol. The HESG330015R1 holds a fixed slot address determined by physical DIP switch or jumper configuration on the board. The controller’s I/O scan task reads this board’s data register at each configured task cycle. Because the bus arbitration is hardware-timed rather than software-polled, jitter in data acquisition is bounded — a property critical for closed-loop PID control where scan-time variability directly affects derivative term accuracy.

On-board A/D Conversion: Analog input signals are digitized by a successive-approximation register (SAR) ADC integrated on the board. The SAR architecture provides a fixed conversion time per channel, which contributes to the deterministic scan behavior described above. Resolution and input range are defined by the specific HESG variant; the HESG330015R1 is configured for standard 4–20 mA process current loop inputs with 12-bit resolution, yielding a theoretical resolution of approximately 4 µA per count across the full span.

System Integration Benefits

• Zero-modification slot replacement: The HESG330015R1 ED1833 is a direct hardware substitute for worn or failed boards in existing HESG-series racks. No backplane rewiring, no address reconfiguration in most ED1833-compatible systems — pull the failed board, seat the replacement, and the controller resumes normal I/O scan at the next power cycle.
• Deterministic real-time response: Fixed-slot bus arbitration and SAR ADC conversion ensure that process variable data arrives at the controller CPU within a bounded time window every scan cycle. This predictability is a prerequisite for tuned PID loops in temperature, pressure, and flow control applications.
• Diagnostic transparency via Advant Builder: The board’s register map is fully readable by ABB’s Advant Builder and MOD 300 maintenance terminals. Engineers can query channel status, fault flags, and communication error counters without removing the board from service — reducing diagnostic time from hours to minutes during plant troubleshooting.
• Fault isolation at the channel level: Hardware-level opto-coupler isolation means a field wiring fault — short circuit, open loop, or overvoltage — is contained to the affected channel. Adjacent channels and the controller backplane remain operational, preventing a single field fault from cascading into a controller trip.
• Reduced spare-parts inventory complexity: The HESG series uses a standardized Euro-card form factor across multiple I/O types. Maintenance teams can stock a smaller number of board variants while covering a wider range of I/O functions, reducing warehouse carrying costs.
• Compatibility with existing firmware baselines: ED1833 revision boards are validated against ABB’s published hardware compatibility matrix. Integrating this board does not require a controller firmware upgrade, preserving the stability of validated control system configurations — a critical requirement in SIL-rated or FDA-regulated environments.
• Extended operational lifespan for legacy DCS installations: Many Advant / Master DCS systems remain in service 20–30 years after initial commissioning. Availability of verified spare boards like the HESG330015R1 ED1833 allows plant operators to defer costly full-system migrations while maintaining process uptime and regulatory compliance.
• ESD-safe handling and packaging compliance: Boards are shipped in IEC 61340-compliant anti-static packaging with humidity indicator cards. This preserves the integrity of CMOS logic components and fine-pitch SMD devices on the PCB during transit — particularly important for long-haul international shipments from Xiamen, China to end destinations in Europe, the Middle East, and Southeast Asia.

Quality Assurance & Global Logistics

Every HESG330015R1 ED1833 unit supplied by siemensplc.com undergoes a structured pre-shipment verification process. Visual inspection is conducted per IPC-A-610 Class 2 workmanship standards, covering solder joint integrity, component seating, connector pin condition, and PCB surface for delamination or burn marks. Where test fixtures are available, functional power-on testing is performed to verify bus communication and channel response prior to dispatch. A certificate of conformance (CoC) is issued for each unit, and actual photographs of the specific board being shipped are provided to the buyer within 24 hours of order confirmation — eliminating ambiguity about the physical condition of the unit before it leaves our facility.

Logistics operations are managed from Xiamen, China, a major international freight hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard transit times are 3–5 business days to Europe, 4–6 business days to the Middle East and South Asia, and 5–8 business days to the Americas. For time-critical plant maintenance windows, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include commercial invoice, packing list, and HS code documentation to support customs clearance at the destination port. Export compliance screening is performed on all orders prior to shipment.
