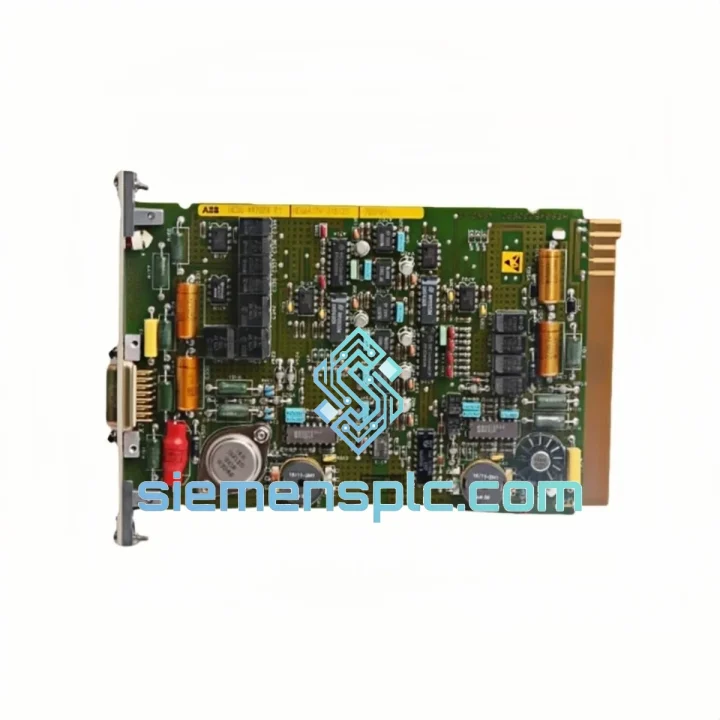

ABB HESG447024R1/70BT01C Bus Transmitter Module

ABB HESG447024R1/70BT01C — Every Hour of Downtime Costs You. We Ship Today.

Your Advant DCS Master Bus just went silent. The HESG447024R1/70BT01C Bus Transmitter Module is the single point of failure between your controllers and your entire I/O network — and right now, your plant is standing still. We stock this module in Xiamen and can have it on a DHL Express flight within hours of your order confirmation. No broker delays, no grey-market risk. Original ABB hardware, fully tested, ready to go.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work on Advant systems, these are the failure patterns I see most often with the HESG447024R1/70BT01C — and the mistakes that turn a 2-hour fix into a 2-day nightmare.

Common Fault Signatures:

• Master Bus communication loss (all nodes offline simultaneously): This is the classic sign. If your AC 450 is throwing a bus fault and every downstream I/O station has gone dark at once, the bus transmitter is your first suspect — not the controller CPU.
• Intermittent bus resets under load: Thermal cycling causes solder joint fatigue on the bus driver ICs. The module works fine at startup, fails after 30–60 minutes of operation. Touch the module housing — if it’s running hot, it’s failing.
• Single-node dropouts that migrate: If different I/O stations drop off the bus at different times, the transmitter’s signal conditioning is degrading. Replace before it takes the whole segment down.
• Error codes to watch: Advant OS will log MBUS_COMM_ERR, BUS_TIMEOUT, or NODE_UNREACHABLE in the system event log. Three or more of these within a 24-hour window on the same bus segment = replace the transmitter now.

Replacement Procedure — Field Checklist:

• Step 1 — Confirm revision suffix: The suffix /70BT01C is a hardware revision designator. Do not substitute /70BT01B or /70BT01D without first checking your Advant OS software version. Revision mismatches cause silent bus errors that are extremely difficult to diagnose.
• Step 2 — No DIP switch configuration required: Unlike some Advant I/O modules, the HESG447024R1/70BT01C does not use DIP switches for node addressing. The module is auto-addressed by the controller on power-up. Do not attempt to manually configure addressing.
• Step 3 — Power down the bus segment, not the whole system: On AC 450 systems with redundant bus architecture, you can isolate the failed bus segment while the redundant path maintains control. Confirm with your system topology diagram before proceeding.
• Step 4 — Seat the module firmly: The backplane connector on this module is a 96-pin DIN 41612 type. Partial seating causes intermittent contact faults that mimic bus transmitter failure. Push until you feel the positive click of the ejector levers.
• Step 5 — Cold restart the bus segment: After module swap, perform a controlled bus segment restart from the Advant Engineering Workstation (AEW). Do not rely on hot-swap recovery — the new module needs a clean initialization cycle to register on the Master Bus.
• Step 6 — Verify firmware compatibility: If your Advant OS is running version 3.x or earlier, confirm with ABB documentation that the /70BT01C hardware revision is supported. Firmware mismatches will not prevent the module from powering up, but will cause degraded bus performance.

Reliability in Harsh Conditions

The HESG447024R1/70BT01C was engineered for the environments where DCS failures are most catastrophic — not climate-controlled server rooms, but real industrial floors.

The module’s bus driver circuitry is rated for continuous operation at ambient temperatures up to 55 °C, with transient tolerance to 70 °C for short-duration thermal events. In oil & gas installations where control room HVAC failures are a real operational risk, this thermal headroom has saved plants from cascading shutdowns.

Vibration resistance meets IEC 60068-2-6 standards — the module has been validated on offshore platform installations where structural vibration from compressors and pumps is constant. The PCB conformal coating provides protection against humidity ingress up to 95% RH non-condensing, making it suitable for coastal chemical plants and tropical process facilities where moisture is a persistent threat to electronics.

EMC shielding on the bus interface circuitry suppresses conducted and radiated interference from variable frequency drives, large motor starters, and welding equipment operating in the same facility. In steel mills and heavy manufacturing environments, this shielding is the difference between stable bus communication and constant noise-induced resets.

All units we ship have passed a 72-hour burn-in test under thermal cycling conditions before leaving our warehouse. We do not ship modules that have only passed a static power-on test — thermal cycling is where latent failures reveal themselves, and we find them before you do.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. This is not a drop-shipping operation. Stock is physically on our shelves.

Standard Express Timeline (from order confirmation):

• Order confirmed before 15:00 CST: Same-day dispatch. DHL Express airway bill generated within 2 hours of payment.
• Southeast Asia (SG, MY, TH, ID, VN): 1–2 business days door-to-door.
• Middle East (AE, SA, QA, KW): 2–3 business days via DHL Express.
• Europe (DE, NL, GB, FR, IT): 2–4 business days via FedEx International Priority.
• North America (US, CA): 2–3 business days via DHL Express or FedEx.
• Australia / New Zealand: 3–4 business days.

Every shipment includes a commercial invoice with accurate HS code classification (HS 8537.10) for smooth customs clearance. We provide EXW, FOB Xiamen, and CIF pricing on request for procurement teams that require specific Incoterms. For emergency plant-down situations, we can arrange customs pre-clearance documentation in advance to eliminate border delays.

Real-time tracking is provided via DHL/FedEx tracking number sent to your email within 1 hour of dispatch. For critical shipments, our logistics team monitors the shipment actively and will notify you of any customs holds or routing exceptions before they impact your delivery window.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
