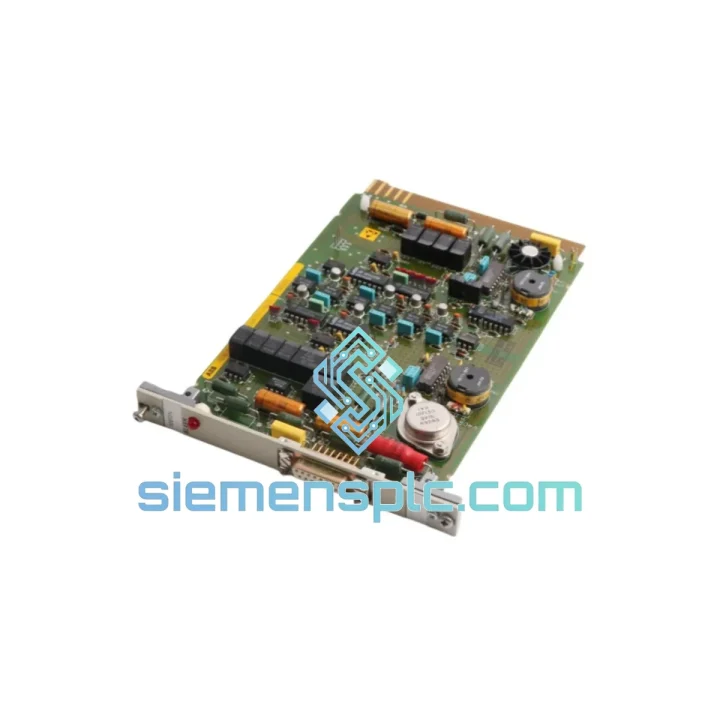

ABB HESG447024R1 Analog Input Module

ABB HESG447024R1 – Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every minute your Advant OCS or MOD 300 DCS sits idle, the losses compound. A failed analog input signal conditioning module shouldn’t cost you a production shift. The ABB HESG447024R1 is on the shelf, tested, and ready to leave our Xiamen warehouse today via DHL or FedEx Express. We’ve handled enough emergency callouts to know that the difference between a 4-hour fix and a 3-day nightmare is having the right part in hand before you open the cabinet.

This is not a listing for a part that “may be available.” If it’s showing in stock, it ships. If you need confirmation before raising a PO, call us now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The HESG447024R1 is a sub-module that slots into the analog input carrier board (typically DSAI130 or DSAI155) inside your Advant OCS or MOD 300 I/O rack. Before you pull the old unit, work through this sequence — it saves callbacks.

Step 1 – Confirm the fault is the module, not the field wiring. Disconnect the field terminals at the carrier board and measure sensor output directly with a calibrated loop calibrator. If the signal is clean at the terminals but the DCS still reads fault or out-of-range, the HESG447024R1 is the likely culprit. Common fault codes pointing here: AI channel “FAIL,” “OPEN CIRCUIT” on a known-good sensor, or persistent “HARDWARE FAULT” on a single AI channel that doesn’t clear after a controller restart.

Step 2 – Power down the I/O rack section before extraction. The MOD 300 rack supports hot-swap on some configurations, but the HESG447024R1 sub-module is a PCB-level component seated on the carrier — do not attempt live extraction. Isolate the rack section, discharge any residual capacitance (wait 30 seconds after power-off), then use the extraction tool or a flat-blade screwdriver at the designated ejector points. Never lever against the PCB edge.

Step 3 – Check the carrier board connector pins before seating the replacement. Bent or corroded pins on the DSAI carrier are a common secondary fault that gets missed. A replacement module seated on a damaged connector will fail within weeks. Clean with IPA and a fine brush; straighten any bent pins with a dental pick before insertion.

Step 4 – No DIP switches or jumper configuration required on the HESG447024R1 itself. Address assignment is handled at the carrier board and controller level in the Advant engineering tool (Master). However, if you are replacing a module in a system that has been running for years, verify the channel configuration in the Master database matches the physical slot position — database drift after undocumented field changes is a real issue on aging Advant systems.

Step 5 – Post-replacement verification. After seating the new module and restoring power, force a channel scan from the Advant Master or MOD 300 engineering station. Confirm the AI channel transitions from FAIL to NORMAL status. Apply a known reference signal (e.g., 4 mA for 0% range) and verify the DCS reads correctly within ±0.1% of span. If the channel still reads fault, the issue is upstream — check the carrier board power rail (+5 V, ±15 V) with a multimeter before condemning the new module.

Common fault scenario: Single AI channel reading fixed value (e.g., stuck at 0 mA or 20 mA) while adjacent channels on the same carrier are healthy. This is the classic HESG447024R1 failure signature — internal op-amp or reference circuit failure. The module does not self-recover; replacement is the only resolution.

Reliability in Harsh Conditions

ABB engineered the Advant OCS platform for continuous operation in environments that would destroy consumer-grade electronics. The HESG447024R1 reflects that design philosophy. The PCB substrate is selected for low moisture absorption, and the conformal coating applied during manufacturing provides a barrier against condensation, airborne process chemicals, and conductive dust — all common in the petrochemical and pulp-and-paper environments where this platform is most heavily deployed.

Vibration tolerance is not an afterthought. The module’s connector system is designed to maintain contact integrity under the continuous low-frequency vibration typical of pump rooms and compressor halls. Field experience across oil and gas installations in Southeast Asia and the Middle East confirms service lives exceeding 15 years in properly maintained cabinets — the modules that fail early almost always trace back to a cabinet cooling failure or a one-time electrical transient, not inherent component weakness.

Thermal performance is rated for the standard Advant rack operating range. In practice, the limiting factor is cabinet ambient temperature, not the module itself. If your cabinet is running hot (above 40°C ambient at the rack inlet), address the cooling before replacing the module — thermal stress is the primary accelerant of analog circuit degradation on this platform.

Units supplied by siemensplc.com are inspected for corrosion, delamination, and connector wear before dispatch. Refurbished units are cleaned, re-coated where necessary, and functionally tested under load. We do not ship untested grey-market stock.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct DHL and FedEx Express gateway access. This is not a drop-ship arrangement. Stock is physically on our shelves, and orders confirmed before 15:00 CST ship the same business day.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, Poland): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express

All shipments include full commercial invoice, packing list, and country-of-origin documentation. For customers in regulated industries requiring additional export documentation or ECCN classification confirmation, contact us before ordering — we handle this routinely and it does not delay dispatch.

Customs clearance support is available for shipments to markets with complex import procedures. We have established broker relationships in the UAE, India, and Indonesia. For urgent shipments where customs delay is a risk, we can advise on HS code classification and valuation documentation to minimize clearance time.

Packaging: anti-static bag, bubble wrap inner, double-wall corrugated outer carton. Humidity indicator card included. Suitable for air freight without additional preparation.
