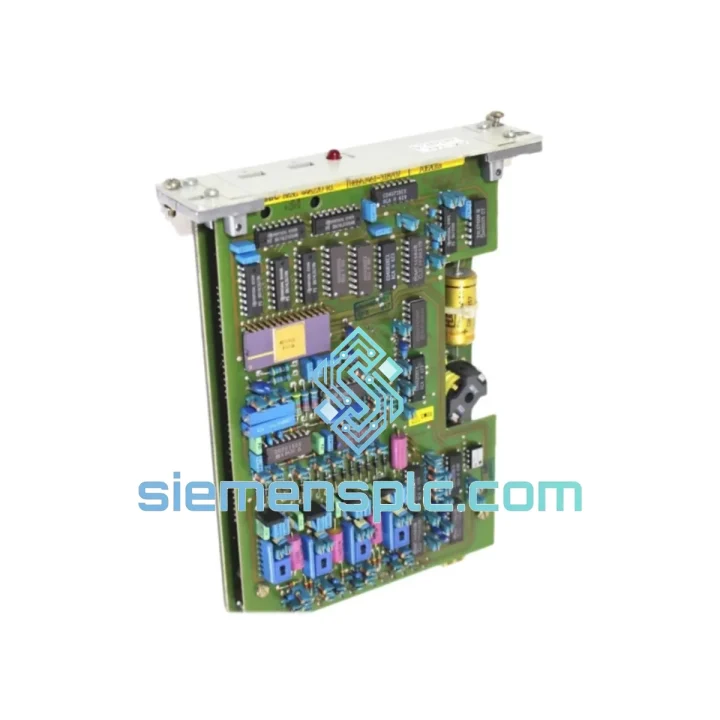

ABB HESG447398R0020/70EA06A-E DCS Analog Input Module

ABB HESG447398R0020/70EA06A-E: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every hour your Advant DCS rack sits idle with a failed analog input module, you’re bleeding money. A single unplanned shutdown in a refinery or power plant can cost $50,000–$500,000 per day. The HESG447398R0020/70EA06A-E is one of the most failure-prone cards in aging MasterPiece 200/1 and Advant OCS installations — and we keep it on the shelf precisely because you can’t afford to wait 6 weeks for an OEM lead time. We ship from Xiamen within 24 hours of order confirmation. DHL Express puts it on your bench in 3–5 business days, anywhere on the planet.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Top failure signatures on HESG447398R0020/70EA06A-E:

• All channels reading 0 or full-scale simultaneously — almost always a blown backplane power rail on the card, not a field wiring fault. Swap the module first before chasing field loops.
• Intermittent channel dropout (1–2 channels only) — check the front-end terminal block for micro-corrosion on screw terminals. Clean with contact spray, re-torque to spec. If dropout persists, the input multiplexer IC on that channel bank has failed — replace the module.
• CPU fault code F1xx / AI-FAIL alarm in Advant Control Builder — the module has lost S-bus communication. Reseat the card firmly; the edge connector oxidizes after 10+ years. If the fault clears momentarily then returns, test in an adjacent slot before condemning the module.
• RTD/TC channels reading -200°C or open-circuit — verify jumper configuration on the module rear connector block. RTD and TC input modes require specific jumper positions (J1–J4 on most 70EA06A-E revisions). Mismatched jumpers after a swap are the #1 cause of “new module, same fault” callbacks.

Step-by-step hot-swap replacement procedure:

1. Confirm with your DCS operator that the affected I/O group is in manual or that the process loop is bypassed at the field device. Never pull an AI card live without loop bypass — you will generate spurious alarms and potentially trip interlocks.
2. In Advant Control Builder, force the affected channels to a safe substitute value before extraction.
3. Loosen the two captive screws on the module front panel. Pull the card straight out — do not rock it side-to-side; the S-bus edge connector is fragile on aged units.
4. Verify jumper positions J1–J4 match the extracted card before insertion. Photograph the old card jumpers before removal.
5. Seat the new module firmly until both captive screws engage. The S-bus LED should illuminate green within 5 seconds of insertion.
6. Release forced values in Control Builder and monitor channel readings for 2–3 minutes. Compare against adjacent redundant channels or field transmitter local indicators.
7. Clear the F1xx fault log and confirm no new alarms before returning the loop to automatic.

Self-addressing note: The HESG447398R0020/70EA06A-E does not use rotary DIP switches for slot addressing — the Advant OCS rack assigns I/O addresses automatically via S-bus topology. No address configuration is required on the module itself. However, if moving this card to a different rack slot, you must update the I/O configuration in Control Builder and perform a full download to the controller before the new slot address is recognized.

Reliability in Harsh Conditions

ABB engineered the Advant I/O platform for continuous operation in environments that destroy consumer-grade electronics. The HESG447398R0020/70EA06A-E carries galvanic isolation on every input channel — a measurable electrical barrier that prevents ground loops from corrupting 4–20 mA signals in plants where VFDs, welding equipment, and high-voltage switchgear share the same cable trays.

The module’s conformal-coated PCB resists humidity ingress in coastal and tropical installations where ambient RH regularly exceeds 80%. Units deployed in pulp mills and offshore platforms routinely log 15+ years of continuous service before first failure — a testament to the conservative thermal derating ABB applied to every active component on this board. Operating junction temperatures are held well below the rated maximum even at the 55°C ambient ceiling, which is why capacitor aging progresses slowly on this platform compared to cheaper alternatives.

Vibration resistance meets IEC 60068-2-6 test profiles applicable to rotating machinery environments. If your Advant rack is mounted within 10 meters of a large compressor or turbine, this module will not develop solder joint fatigue failures on the timescales that plague competitor I/O platforms. The dual-screw captive fastener system prevents vibration-induced partial ejection — a failure mode we see frequently on other platforms in high-vibration skids.

Global Express Logistics

Our Xiamen warehouse operates on a same-business-day dispatch model for confirmed orders received before 15:00 CST. Here is exactly what happens after you send your purchase order:

• Hour 0–2: Order confirmation and stock verification. We photograph the unit label, serial number, and physical condition and send you the images before invoicing.
• Hour 2–6: ESD-safe packaging — anti-static bag, foam-lined double-wall carton, desiccant pack. Export documentation prepared: commercial invoice, packing list, HS code declaration (HS 8537.10).
• Hour 6–24: DHL Express or FedEx International Priority pickup. Tracking number issued to your email within 1 hour of carrier collection.
• Day 2–5: Delivery to your site. Europe: 3–4 days. Southeast Asia: 2–3 days. Americas: 4–5 days. Middle East: 3–4 days.

For genuinely critical shutdowns, we arrange DHL Express Worldwide with next-flight-out priority booking — contact us directly on WhatsApp for same-day freight options. We have shipped to refineries in Saudi Arabia, power plants in Germany, and paper mills in Canada on emergency timelines. We know what a production shutdown costs. We move accordingly.

All shipments include full export compliance documentation. We handle customs classification — you do not need to provide HS codes or commodity descriptions. EU customers can receive EUR.1 movement certificates where applicable to reduce import duty under trade agreements.
