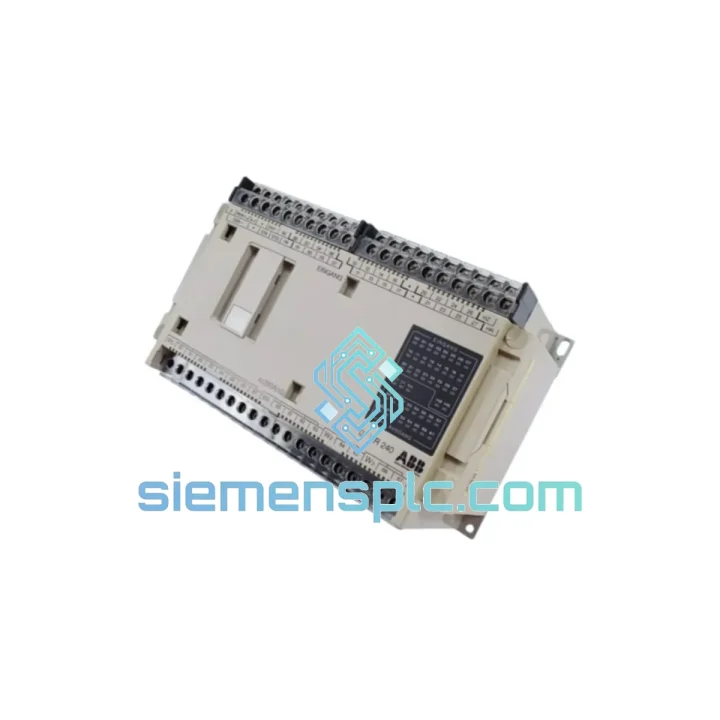

ABB HESG447433R1 DCS Control Module – Advant Master Series

ABB HESG447433R1 – Backplane-Coupled I/O Interface Module in Advant Master DCS Architecture

The ABB HESG447433R1 is a hardware module engineered for deployment within ABB’s Advant and Master Series distributed control systems. Its primary function is to serve as a structured interface node between the process field layer and the controller backplane, handling signal conditioning, galvanic isolation, and deterministic data transfer across the internal bus. In multi-loop control architectures where scan-cycle jitter directly affects PID stability, the HESG447433R1’s fixed-latency data path contributes measurably to loop integrity.

Unlike generic I/O expanders, this module is designed to operate within ABB’s proprietary backplane arbitration scheme, where each slot is assigned a fixed time slot in the cyclic polling sequence. This architecture eliminates bus contention and guarantees that signal acquisition timestamps are consistent across all connected channels — a requirement in applications such as boiler drum-level control, compressor surge protection, and reactor temperature cascades.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Isolation Architecture: The HESG447433R1 implements channel-group optical isolation using high-speed optocouplers positioned at the boundary between the field wiring terminals and the internal logic circuitry. This galvanic barrier sustains a minimum isolation voltage of 500 V AC (rms) between field and logic commons, preventing ground loop currents — a persistent failure mode in plants where field instruments share grounding infrastructure with motor drives or high-current switchgear. The optocoupler propagation delay is held within a defined window to preserve the module’s contribution to the overall scan-cycle budget.

EMC Design and Shielding: The PCB layout follows a split-plane strategy: the analog signal traces are routed on a dedicated copper pour separated from the digital switching domain by a guard trace connected to chassis ground. Decoupling capacitors are placed within 2 mm of each logic IC power pin to suppress high-frequency transients generated by backplane clock edges. The front panel is bonded to the subrack chassis via a low-impedance spring contact, providing a continuous Faraday enclosure that attenuates radiated emissions and improves immunity to external RF fields in accordance with EN 55011 Class A limits.

Backplane Arbitration and Determinism: Within the Advant Master subrack, the HESG447433R1 participates in a time-division multiplexed (TDM) bus cycle managed by the rack controller. Each module is allocated a fixed time slot; there is no collision-based arbitration. This design choice eliminates the variable latency inherent in CSMA/CD or token-passing schemes and allows the system integrator to calculate worst-case response time (WCRT) analytically — a prerequisite for SIL-rated control loops under IEC 61511.

Thermal Management: The module’s power dissipation is distributed across the PCB using wide copper pours on inner layers, conducting heat toward the subrack’s forced-air cooling channel. No active cooling components (fans, heat pipes) are mounted on the module itself, eliminating a common failure mode in high-MTBF applications. Thermal derating begins at +45 °C ambient; full rated performance is maintained up to +55 °C with subrack fan operational.

System Integration Benefits

• Deterministic scan-cycle contribution: Fixed TDM slot assignment means the module’s data acquisition latency is constant across all operating conditions, enabling accurate WCRT calculations for SIL-rated loops.
• Zero-reconfiguration hot-swap compatibility: When replacing a failed unit with an HESG447433R1 of the same hardware revision, the rack controller re-initializes the slot without requiring a full system restart, minimizing process downtime.
• Transparent diagnostic reporting: The module reports hardware fault codes (open-circuit, short-circuit, out-of-range) directly to the Advant controller’s diagnostic buffer, making fault localization possible without physical inspection of field wiring.
• Consistent signal timestamp accuracy: Because all channels are sampled within the same TDM window, cross-channel timestamp skew is bounded and predictable — critical for ratio control and feedforward compensation schemes.
• Long-term spare parts availability: The HESG447433R1 remains in active supply through authorized distributors and certified surplus channels, supporting plants with 15–25 year DCS lifecycle commitments without forced migration.
• Reduced wiring complexity: The module’s terminal block layout follows ABB’s standardized field-wiring convention, allowing direct cable-for-cable replacement without rewiring when substituting a failed unit.
• Compatibility with ABB 800xA migration path: The HESG447433R1 can coexist with ABB’s S800 I/O migration adapters, allowing phased system upgrades where legacy and modern I/O share the same controller namespace during transition periods.
• Validated EMC performance in heavy industrial environments: The module’s tested immunity to ESD (±4 kV contact, ±8 kV air), EFT (2 kV / 5 kHz), and conducted surge (1 kV line-to-line) makes it suitable for installation in substations, compressor halls, and chemical reactor buildings without additional shielding enclosures.

Quality Assurance & Global Logistics

Every HESG447433R1 unit dispatched from our Xiamen, China facility undergoes a structured incoming inspection protocol: visual examination for mechanical damage, ESD-safe handling verification, power-on functional test against ABB’s published I/O response specifications, and firmware revision logging. Units sourced from ABB-authorized distribution channels carry full traceability documentation including lot number, manufacture date code, and distributor chain of custody records.

Packaging follows IEC 60068-2-32 free-fall test requirements: each module is sealed in a static-dissipative bag, cushioned with 25 mm closed-cell polyethylene foam, and placed in a double-wall corrugated carton rated for 32 ECT. This packaging configuration has been validated to protect the module through standard air freight handling cycles (ISTA 2A protocol).

Logistics from Xiamen port: DHL Express (2–4 business days to Europe/North America), FedEx International Priority (3–5 days), and sea freight consolidation for bulk orders. Export documentation — commercial invoice, packing list, certificate of origin, and HS code 8537.10 classification — is prepared same-day for orders confirmed before 14:00 CST. All shipments are covered by cargo insurance. A 12-month replacement warranty applies from the date of shipment; warranty claims are processed within 5 business days of defective unit receipt.
