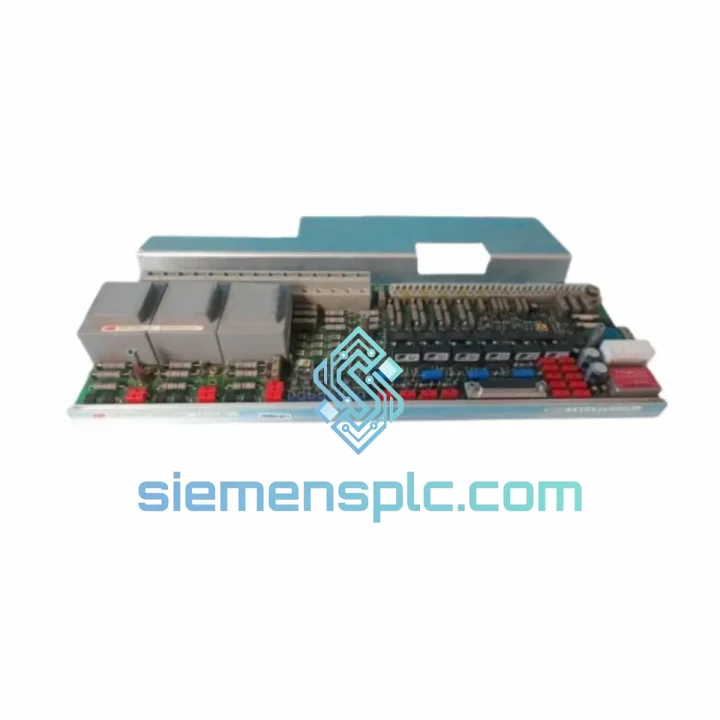

ABB HIEE300831R0001 UAC346AE01 Terminal Unit – ADVANT MOD 300

ABB HIEE300831R0001 UAC346AE01 — Field Wiring Interface Module for ADVANT MOD 300 DCS Control Loops

The ABB HIEE300831R0001 (type designation UAC346AE01) is a passive terminal unit engineered for the ADVANT OCS and MOD 300 Distributed Control System platform. Its primary function within a control loop is to provide a structured, high-density field-wiring termination point between process instrumentation cables and the corresponding ADVANT I/O module. By decoupling field wiring from the electronics board, this terminal unit allows I/O modules to be replaced or serviced without disturbing field cable connections — a critical operational advantage in continuous-process environments where loop integrity cannot be interrupted.

In a typical ADVANT I/O subsystem, the UAC346AE01 mounts within the subrack adjacent to its paired I/O board. Signal conductors from transmitters, actuators, and discrete field devices land on the terminal unit’s screw terminals, while the I/O board connects via a direct backplane or ribbon interface. This architecture enforces a clean separation between field-side wiring (subject to noise, ground loops, and mechanical stress) and the electronics-side signal conditioning circuitry.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The UAC346AE01 terminal unit operates on a passive signal-routing architecture, which carries several hardware-level design advantages relevant to industrial deployment:

Galvanic Field-Side Isolation Architecture: The terminal unit’s physical layout enforces a spatial and electrical boundary between field conductors and the I/O board interface. In ADVANT systems, the active isolation barrier — typically optocoupler arrays or transformer-coupled input stages — resides on the I/O module itself. The terminal unit’s role is to present a low-impedance, mechanically stable landing point for field cables, ensuring that common-mode noise injected via long cable runs does not propagate through resistive coupling at the termination point. Screw-clamp terminals with defined torque ratings maintain contact resistance below 5 mΩ per terminal over the product’s service life.

EMC Mechanical Design: The module’s metal frame and subrack mounting contribute to the overall cabinet’s electromagnetic shielding continuity. When installed in a grounded ADVANT subrack, the terminal unit’s chassis provides a low-impedance path to cabinet ground, reducing the antenna effect of unshielded field cable stubs. This is particularly relevant in environments with variable-frequency drives (VFDs) or high-current switching equipment in adjacent panels.

Wiring Separation and Marshalling Logic: The UAC346AE01 supports a marshalling architecture where analog and discrete signals are physically separated at the terminal level before entering the I/O board. This prevents cross-coupling between high-level discrete signals (24 VDC) and low-level analog signals (4–20 mA, ±10 V) that share the same subrack. The terminal layout follows ABB’s ADVANT wiring convention, enabling technicians to follow documented loop drawings without field-level interpretation.

Hot-Swap Maintenance Compatibility: Because field wiring terminates on the UAC346AE01 rather than directly on the I/O board, the paired I/O module can be extracted from the subrack for bench testing or replacement without disconnecting a single field conductor. This reduces mean time to repair (MTTR) in live plant scenarios where loop shutdown requires a formal management of change (MOC) process.

System Integration Benefits

• Zero-Rewire Module Replacement: Field cables remain landed on the terminal unit during I/O board swap-outs, eliminating rewiring errors and reducing maintenance windows from hours to minutes.
• Deterministic Signal Path: Fixed screw-clamp termination provides a stable, low-resistance signal path that does not degrade with thermal cycling, preserving 4–20 mA loop accuracy over multi-year service intervals.
• Subrack Ground Continuity: Metal chassis bonding to the ADVANT subrack maintains cabinet-level EMC compliance without additional grounding hardware.
• Documented Loop Traceability: Terminal numbering follows ABB ADVANT wiring conventions, allowing loop drawings to reference terminal positions directly — critical for IEC 61511 SIS documentation packages.
• Reduced Diagnostic Ambiguity: With field wiring isolated at a defined termination point, fault isolation between field cable faults and I/O board faults becomes a structured two-step process rather than a combined troubleshooting exercise.
• Compatibility with Legacy ADVANT Infrastructure: Direct OEM fit into existing ADVANT subracks means no mechanical adapters, no signal conditioning inserts, and no deviation from the original system hardware configuration document (HCD).
• Supports High Channel-Density Installations: The terminal unit’s compact form factor allows maximum I/O density within standard 19-inch ADVANT cabinets, preserving rack space for additional I/O boards.
• Validated for Regulated Environments: OEM provenance and part number traceability support qualification documentation in FDA 21 CFR Part 11, IEC 61511, and nuclear QA programs where hardware genealogy must be established.
• Reduced Spare Parts Complexity: A single UAC346AE01 terminal unit serves as the field interface for multiple ADVANT I/O board types, simplifying the plant’s critical spare inventory matrix.
• Long-Term Platform Availability: ABB ADVANT MOD 300 systems remain in active service at power generation and process facilities with planned operational lives extending to 2035+. Sourcing OEM terminal units now avoids future obsolescence-driven emergency procurement at premium cost.

Quality Assurance & Global Logistics

Every ABB HIEE300831R0001 UAC346AE01 unit dispatched from our Xiamen, China facility passes through a structured pre-shipment inspection protocol:

• Part Number Authentication: HIEE300831R0001 catalog number cross-verified against UAC346AE01 type plate and ABB documentation to confirm equivalence before listing.
• Physical Condition Inspection: Board-level examination for terminal corrosion, bent or missing pins, label integrity, and mechanical damage to the subrack connector interface.
• ESD-Safe Handling: All units handled in ESD-controlled environments. Packaged in anti-static poly bags, foam-lined cartons, and moisture barrier outer packaging rated for air and sea freight.
• Export Documentation: Commercial invoice, packing list, and HS code declaration prepared for each shipment. HS Code 8538.90 applies to this product category for most jurisdictions.
• Shipping Speed: In-stock units ship within 1–3 business days from Xiamen. DHL Express, FedEx International Priority, and UPS Worldwide Express available. Typical transit: 3–7 business days to Europe, North America, and Southeast Asia.
• 12-Month Warranty: All units carry a 12-month warranty from dispatch date covering manufacturing defects and functional failure under normal operating conditions.
