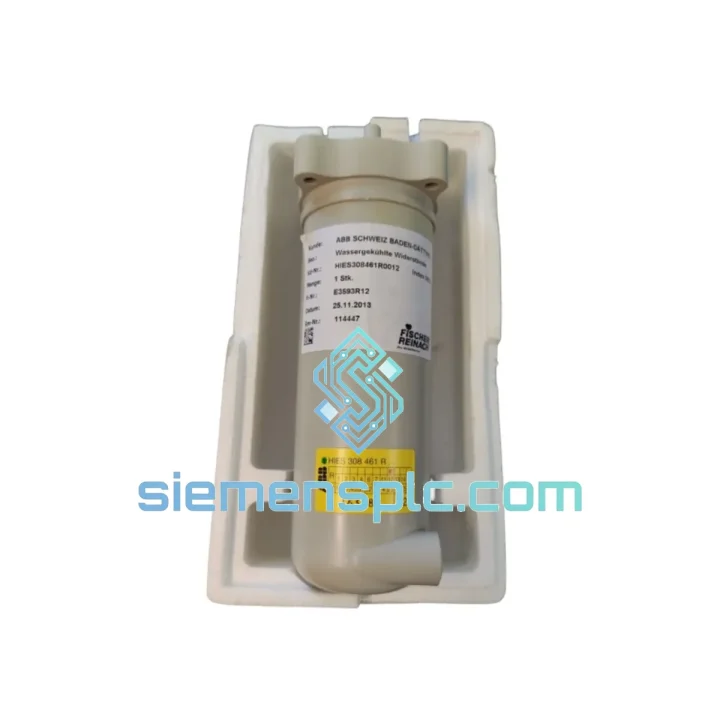

ABB HIES308461R0012 Braking Resistor

ABB HIES308461R0012 — Stop the Clock on Your Downtime, Ship Today

Every minute your drive line sits idle, you’re bleeding money. A failed braking resistor on an ABB ACS800 or ACS880 platform doesn’t just trip a fault code — it halts production, triggers safety shutdowns, and puts your maintenance team under pressure. The ABB HIES308461R0012 is a 2.5 Ω water-cooled braking resistor, and we have it on the shelf in Xiamen right now. No lead-time negotiation, no factory back-order queue. You call, we ship — same day for orders confirmed before 14:00 CST.

This is not a generic substitute. It is the OEM-specified component pulled from ABB’s own drive accessories catalog, designed to drop into your existing cooling circuit and braking chopper without a single field modification. If your plant runs cranes, rolling mills, mining conveyors, or marine winch systems on ABB drives, this is the exact part that gets you back online.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

When the HIES308461R0012 fails, your ABB drive will typically throw one of these fault codes before it shuts down hard:

• F-0022 / BRAKE RESISTOR OVERTEMP — The resistor’s thermal model has exceeded its limit. If the cooling water flow rate has dropped or the coolant temperature is above spec, the resistor is absorbing more heat than it can shed. Check flow rate first before condemning the resistor itself.
• F-0023 / BRAKE CHOPPER OVERCURRENT — A shorted or open-circuit resistor will cause the chopper IGBT to see an abnormal current waveform. Measure resistance across the terminals with the drive de-energized and DC bus fully discharged. A reading significantly above or below 2.5 Ω confirms the resistor has failed.
• F-0009 / DC OVERVOLTAGE — If the braking resistor circuit is open (failed resistor or broken connection), regenerative energy from a decelerating load has nowhere to go. The DC bus voltage climbs until the drive trips. This is the most common presentation of a failed braking resistor in crane and hoist applications.

Replacement procedure (field-verified steps):

1. Issue a controlled stop and lock out / tag out the drive cabinet. Verify DC bus voltage is below 50 V using a calibrated meter — do not rely on the drive’s display alone.
2. Isolate the cooling water circuit. Close the inlet and outlet valves, then drain the resistor’s internal water passages using the bleed port. Have absorbent material ready — residual coolant will drain.
3. Disconnect the two power terminals (note polarity markings — the resistor is non-polarized, but document your wiring for reinstallation). Disconnect the coolant hoses.
4. Remove the mounting hardware. The HIES308461R0012 uses standard M6 bolts on a panel-mount flange.
5. Install the new unit. Torque mounting bolts to ABB’s specified value (refer to drive installation manual). Reconnect coolant hoses and verify no leaks before energizing.
6. Before powering up, perform a cold resistance check: 2.5 Ω ± tolerance at ambient temperature. If the reading is correct, restore the cooling water circuit, bleed air from the loop, and confirm flow rate.
7. Power up the drive and clear active faults. Run a low-speed deceleration test to confirm the braking chopper activates and the resistor temperature remains stable.

No firmware update or parameter change is required for a like-for-like HIES308461R0012 replacement. The drive’s thermal model parameters are tied to the resistor type code, which remains unchanged.

Reliability in Harsh Conditions

The HIES308461R0012 is not a lab component. It is built to survive the environments where ABB drives actually operate — and those environments are unforgiving.

Vibration: Industrial crane and mining conveyor installations subject drive cabinet components to continuous low-frequency vibration from structure-borne machinery noise. ABB qualifies this resistor to IEC 60068-2-6 sinusoidal vibration profiles. The water-cooled construction — with its solid resistive element and rigid coolant manifold — has fewer resonant failure modes than wire-wound air-cooled alternatives.

Thermal cycling: Every braking event is a thermal pulse. The resistor heats during deceleration and cools between cycles. Over thousands of cycles, differential thermal expansion stresses the resistive element and its terminations. ABB’s liquid-cooled design keeps the element temperature delta significantly lower than air-cooled equivalents, extending fatigue life in high duty-cycle applications like rolling mills and test benches.

Humidity and condensation: Marine and coastal installations expose drive components to salt-laden humid air. The HIES308461R0012’s sealed construction and water-cooled thermal management eliminate the need for forced-air ventilation through the resistor body, removing the primary ingress path for corrosive moisture. This is why it is the specified solution for offshore winch and marine propulsion applications.

High ambient temperature: In tropical plant environments or poorly ventilated drive rooms, ambient temperatures can push 45–50 °C. Air-cooled resistors derate significantly at elevated ambient. The water-cooled HIES308461R0012 maintains its rated power dissipation as long as coolant temperature and flow rate remain within spec — a critical advantage when your cooling water is at 30 °C and your air-cooled alternative is already derated by 30%.

Every unit we ship has passed ABB’s factory acceptance testing. We do not supply field-repaired or reconditioned units. What you receive is new, original, and ready to install.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your order:

• Same-day dispatch for orders confirmed before 14:00 CST (UTC+8). Orders received after cutoff ship the following business morning.
• DHL Express Worldwide — Transit times: Europe 2–3 business days, North America 3–4 business days, Southeast Asia 1–2 business days, Middle East 3–5 business days.
• FedEx International Priority — Available as an alternative carrier. Transit times are comparable to DHL. We select the faster option based on your destination unless you specify a preference.
• Export documentation — Commercial invoice, packing list, and certificate of conformity prepared and included with every shipment. HS code declared for customs clearance. We have experience with import requirements in EU, US, AU, and GCC markets.
• Tracking — AWB number sent to your email within 2 hours of dispatch. Real-time tracking link provided.
• Emergency freight — For critical shutdowns, we can arrange next-flight-out courier on request. Contact us directly on WhatsApp for fastest response.

We have shipped ABB drive components to plant engineers in Germany, Australia, South Korea, Saudi Arabia, and Brazil — all with zero customs holds on properly documented shipments. If your procurement team needs a proforma invoice before payment, we issue it within 1 business hour of your inquiry.
