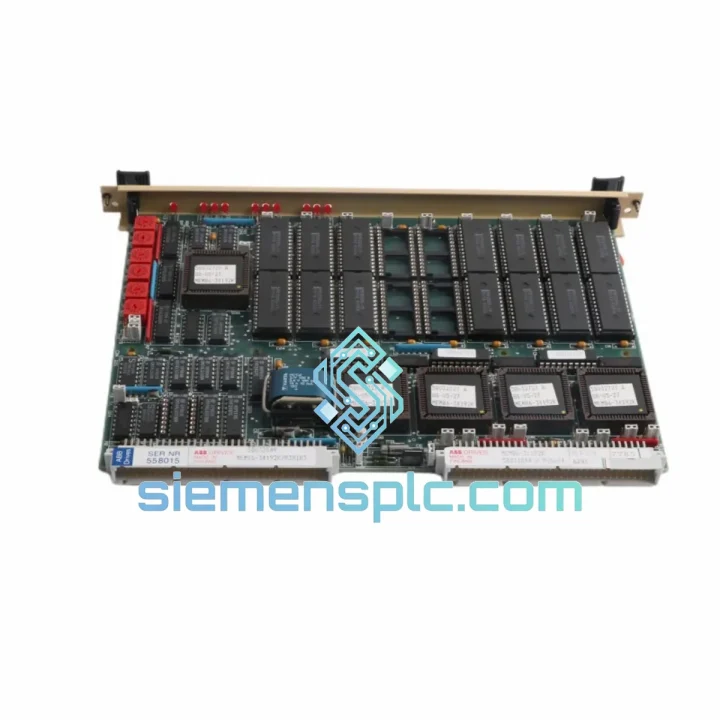

ABB MEM86-3*192 R3R1R3 DCS Memory Module

ABB MEM86-3*192 R3R1R3 — Revision-Locked, Bench-Tested, Leaving Xiamen Today

The controller is down. The fault log is pointing at the memory board. You have already burned two hours confirming the diagnosis. What you need now is not another datasheet — you need the right board, the right revision, physically in transit before your next shift change. The ABB MEM86-3*192 R3R1R3 is on our shelf in Xiamen. Revision confirmed. Battery replaced. Functional test passed. It ships the same day your order clears, packed for the worst leg of any international express route.

The revision string on this part is not cosmetic. R3R1R3 encodes three discrete compatibility layers: PCB generation 3, firmware handshake interface revision 1, and edge connector pinout revision 3. An R1 or R2 board installed against an R3-generation CPU will boot into a firmware handshake fault — the system will not execute, and the fault code will look identical to a hardware memory failure. Engineers who have been through this once do not make the substitution twice. We cross-reference your CPU board revision against the memory board revision before the shipment leaves the building. If there is a mismatch, we flag it before dispatch, not after delivery.

Every hour a MOD 300 or Advant OCS controller stays down in a refinery, a chemical plant, or a power generation facility is a quantifiable loss. Feedstock throughput, product yield, regulatory compliance windows, and shift labor costs all accumulate against a single failed board. The MEM86-3*192 R3R1R3 is not a high-volume commodity part — it is a revision-specific component for a mature DCS platform, and sourcing it through standard procurement channels can take days or weeks. We exist to close that gap. Stock on hand. Same-day dispatch. No freight consolidation delays.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the board, spend five minutes ruling out the two most common misdiagnoses. They cost nothing and can save you from replacing a functional module.

Check the backup battery first. Probe the battery terminals directly on the board with a multimeter. Anything below 2.8 V means the SRAM lost its contents on the last power cycle. The board hardware is intact — the program partition is simply empty. A battery swap and a cold download from your engineering workstation backup will restore operation without a board replacement. This failure mode is frequently misread as board hardware failure because the symptom — CPU HALT, no I/O scan — is identical in both cases.

Inspect the edge connector before condemning the board. Oxidized or mechanically deformed pins on either the board or the chassis slot produce intermittent MEM FAULT codes that are electrically indistinguishable from SRAM cell failure. Clean the connector with isopropyl alcohol and a non-abrasive contact cleaner. If the fault clears and returns on a thermal cycle, you have a connector issue, not a board issue. If the fault is steady and does not respond to connector cleaning, proceed with board replacement.

Fault code reference — what the LEDs are actually telling you:

• MEM FAULT — steady red: CPU self-test detected a failed SRAM cell or address line. Genuine hardware failure. Replace the board. Photograph the LED pattern before cutting power — use it to verify the replacement comes up clean.
• CPU HALT, I/O scan stopped: Processor found no executable program in the memory partition. Either battery failure caused SRAM content loss, or the program partition was corrupted during an abnormal shutdown. Install the replacement board and perform a full cold download.
• Intermittent fault, clears on cold restart, returns after 60–90 minutes of runtime: Thermal-marginal SRAM cells. The board passes the cold-start self-test but fails as cabinet temperature rises. This is a classic end-of-life failure pattern. The board will fail permanently within weeks. Replace it during the next planned maintenance window — do not wait for the next emergency.
• Program checksum mismatch on download: The CRC stored in the memory partition does not match the engineering tool’s expected value. SRAM has degraded or the battery failed mid-write. Full cold download required after installing the replacement board.

Replacement sequence — field procedure: If the controller is still responsive, issue a software shutdown command before removing power. An abrupt power cut during an active write cycle can corrupt the program partition on an otherwise healthy replacement board. If the controller is already locked up, photograph every front-panel LED state before cutting power — this is your diagnostic baseline. Remove the failed board by releasing both ejector levers simultaneously; the edge connector is long and will bind if you lever from one side only. Inspect the chassis slot for debris or deformed pins before inserting the replacement. Seat the new board until both ejector levers click into the locked position. The backplane handles slot addressing automatically — no configuration on the memory board is required. On first power-up, the controller will boot into a no-program state. Connect your engineering workstation, download the backed-up application, and execute a full cold-start. Verify all I/O channels, PID loop initialization modes, and interlock logic before returning any loops to automatic control.

Reliability in Harsh Conditions

The MEM86-3*192 was not designed for a climate-controlled server room. It was designed for the inside of a sealed steel cabinet in a tropical refinery, a coastal petrochemical plant, or an offshore platform — environments where the ambient temperature at the cabinet door can swing 20 °C between a night shift and an afternoon shift, where salt-laden air finds every unsealed penetration, and where the structural frame the control cabinet is bolted to transmits continuous low-frequency vibration from pumps, compressors, and turbines running twenty meters away.

The full-board conformal coating is the primary defense against the condensation cycle that occurs when a cabinet door is opened during a cold morning shift and closed again in afternoon heat. This is one of the most common causes of premature PCB failure in process industry environments, and it is one that most engineers do not identify until they have seen it destroy a second board. The coating handles this without degradation across multi-year service intervals. The PCB substrate maintains dimensional and electrical stability at the top of the rated 60 °C operating range — thermal expansion does not open solder joints or delaminate traces.

Connector integrity under vibration is maintained by the chassis guide rail system and the ejector lever locking mechanism. The edge connector maintains reliable contact under continuous 5–50 Hz vibration — the frequency range generated by most rotating process equipment. Units sourced from facilities that ran them for over a decade in these conditions have arrived at our facility and tested within full electrical specification. The SRAM cells themselves are rated for the full operating temperature range with no derating — there is no thermal throttling or reduced access speed at elevated temperature.

Every unit dispatched from Xiamen goes through a structured pre-shipment inspection: PCB surface condition, connector pin geometry, component integrity, and battery voltage. Refurbished units are powered up in a compatible chassis and put through a functional test sequence — memory self-test pass, program load and verify cycle, and battery backup validation under simulated power interruption. Any unit that does not pass is rejected from fulfillment stock. It does not ship.

Global Express Logistics

Xiamen is a primary export gateway on China’s southeast coast with direct access to the major international express carriers. We hold direct accounts with DHL Express, FedEx International Priority, and UPS Worldwide Express. Orders are not routed through a freight consolidator or held for a weekly cycle. For in-stock units, orders confirmed before 14:00 CST on business days ship the same day. For plant-down emergencies, courier pickup can be arranged within two hours of order confirmation during business hours.

Packaging is engineered for the transit, not just the shelf. The MEM86 board ships in an ESD-safe anti-static bag, inside a foam-lined inner carton, inside a double-wall outer carton with a moisture barrier layer. The board arrives in the same condition it left our facility — whether it transited through Dubai, Rotterdam, or Houston in peak summer heat.

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France, Italy): 3–5 business days via DHL Express
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia & New Zealand: 3–5 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL Express
• Africa (South Africa, Nigeria, Egypt): 5–8 business days via DHL Express

Every shipment includes door-to-door tracking from carrier pickup through final delivery. We prepare the full customs documentation package — commercial invoice, packing list, HS code classification, and country-of-origin declaration — as standard. For buyers in markets with specific import documentation requirements, our team provides documentation support before the shipment leaves Xiamen.
