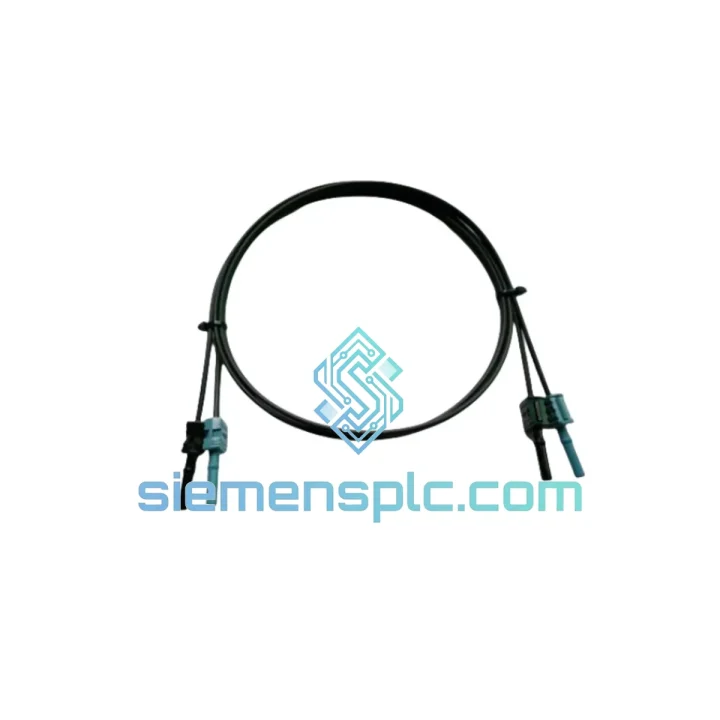

ABB NLWC-03 Fibre Optic Cable – NLWC Series

ABB NLWC-03 Twin Plastic Fibre Optic Cable — Signal Transmission Architecture in ABB DDCS Drive Networks

The ABB NLWC-03 is a twin-core plastic optical fibre (POF) cable engineered for point-to-point and ring-topology signal transmission within ABB’s Distributed Drives Communication System (DDCS). Its role in a drive control loop is not decorative — it is the physical medium over which time-critical torque reference, speed feedback, and fault status frames travel between master inverter units, follower drives, and supervisory control boards. In high-power multi-drive installations — steel rolling mills, paper machine sections, marine propulsion trains — the integrity of this optical link is a direct determinant of coordinated axis synchronisation accuracy.

Unlike copper-based fieldbus cabling, the NLWC-03 transmits data as modulated light pulses through a polymethyl methacrylate (PMMA) core. This eliminates galvanic coupling between drive sections operating at different DC bus potentials, removes ground loop interference paths, and provides inherent immunity to the conducted and radiated electromagnetic emissions generated by IGBT switching transients at frequencies from 2 kHz to 16 kHz. In environments where cable trays run parallel to motor power conductors — a common constraint in retrofit installations — this immunity is not a specification footnote; it is the reason the communication link remains stable under full load.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Galvanic Isolation Architecture. The NLWC-03 provides complete galvanic isolation between the transmitting and receiving nodes. In a multi-drive DDCS ring, each drive unit operates with its own DC bus reference. Without optical isolation, any potential difference between bus rails — even transient spikes during regenerative braking events — would appear as common-mode noise on a copper communication link. The POF medium breaks this coupling entirely: the electrical domain ends at the HFBR transmitter LED, and the receiving domain begins at the photodiode detector. No conducted path exists between nodes. This is not a filter — it is a physical discontinuity in the electrical circuit.

EMC Performance Under IGBT Switching Conditions. ABB ACS800 and ACS880 drives generate significant radiated emissions during switching. At a 4 kHz carrier frequency with 600 V DC bus, dV/dt values at the motor terminals can exceed 3,000 V/µs. Copper signal cables in proximity to motor output conductors require careful shielding and grounding to maintain signal integrity; even with shielding, capacitive coupling at high dV/dt rates can inject noise into low-level signal circuits. The NLWC-03 is immune to this mechanism. The PMMA fibre core carries no charge, supports no induced current, and presents no capacitive coupling surface to adjacent conductors. The signal-to-noise ratio at the receiving photodiode is determined solely by optical power budget, not by the electromagnetic environment of the cable tray.

DDCS Ring Topology Fault Propagation. In a DDCS optical ring, the NLWC-03 cables form the physical layer of a token-passing communication ring. ABB’s DDCS protocol includes hardware-level ring break detection: if a cable segment fails, the master controller detects the loss of token circulation within one communication cycle (typically 1–2 ms) and can initiate a controlled stop sequence before mechanical damage occurs. This deterministic fault response is only possible because the optical medium provides a binary link state — either the optical power budget is met and the link is active, or it is not. There is no degraded intermediate state that could cause intermittent data corruption without triggering a fault flag, a failure mode that is common in aged or poorly terminated copper fieldbus segments.

Connector Mechanical Design. The HFBR-style push-pull connector used on the NLWC-03 provides a positive latching mechanism that resists vibration-induced disconnection. In crane and hoist applications — where the drive enclosure is subject to continuous mechanical vibration from travel motors and load swings — connector retention force is a reliability parameter. The push-pull latch maintains connector seating without relying on friction alone, reducing the probability of intermittent optical link interruption under dynamic loading conditions.

System Integration Benefits

• Zero ground loop interference: Complete galvanic isolation eliminates ground potential difference effects between drive sections, removing a common source of unexplained communication faults in multi-drive installations.
• Deterministic latency: Optical signal propagation through the PMMA core introduces negligible latency (approximately 5 ns/m), ensuring that DDCS frame timing is governed by protocol cycle time rather than cable-induced delay variation.
• Simplified cable routing: No shielding or grounding requirements for the fibre cable itself; it can be routed in the same tray as power conductors without signal integrity compromise, reducing installation labour and tray space requirements.
• Binary link state diagnostics: The optical link either passes or fails the power budget threshold — there is no ambiguous degraded state. Maintenance teams can confirm link health with a simple optical power meter check, without requiring protocol analysers or oscilloscopes.
• Plug-and-play replacement: The NLWC-03 is a direct replacement for existing DDCS optical segments; no parameter changes or re-commissioning of the DDCS ring are required after cable substitution, provided the replacement cable length is within the optical budget of the installed transceivers.
• Scalable ring topology: Additional drive nodes can be inserted into the DDCS ring by adding NLWC-03 segments between nodes, without modifying existing cable runs — supporting phased capacity expansion without system downtime.
• Reduced maintenance interval sensitivity: POF cables do not corrode, do not suffer from insulation degradation due to oil or coolant exposure at the levels typical in drive enclosures, and do not require periodic impedance testing. Inspection intervals can be extended compared to copper fieldbus segments.
• Compatibility with legacy and current ABB platforms: The HFBR connector interface and 660 nm wavelength specification are consistent across ABB DDCS implementations from ACS600 through ACS880, allowing the NLWC-03 to serve as a common spare across multiple drive generations in a mixed-vintage installation.

Quality Assurance & Global Logistics

Every NLWC-03 unit supplied by siemensplc.com is sourced from ABB’s authorised distribution network or certified surplus channels with full batch traceability. ABB Oy manufactures this product under an ISO 9001-certified quality management system. Units are supplied in original ABB packaging with intact date codes and part number labels. No refurbished, relabelled, or third-party substitute units are offered under this part number.

Pre-shipment inspection covers connector end-face condition, jacket integrity, label authenticity, and packaging seal. Optical continuity is verified where test equipment is available. Sourcing documentation — including distributor invoices and batch records — is available upon request for regulated procurement processes.

siemensplc.com operates from Xiamen, Fujian Province, China. Xiamen Gaoqi International Airport supports direct cargo services via DHL Express, FedEx International Priority, and UPS Worldwide Express, with transit times of 2–5 business days to major industrial centres in Europe, North America, Southeast Asia, and the Middle East. Xiamen Port provides cost-effective sea freight consolidation for bulk orders. All shipments include commercial invoice, packing list, and certificate of origin. HS code classification and export documentation are prepared in compliance with Chinese customs regulations and destination-country import requirements. Multi-currency invoicing is available in USD, EUR, and CNY. Payment methods accepted: T/T wire transfer, PayPal, major credit cards, and Letter of Credit for orders above USD 5,000.
