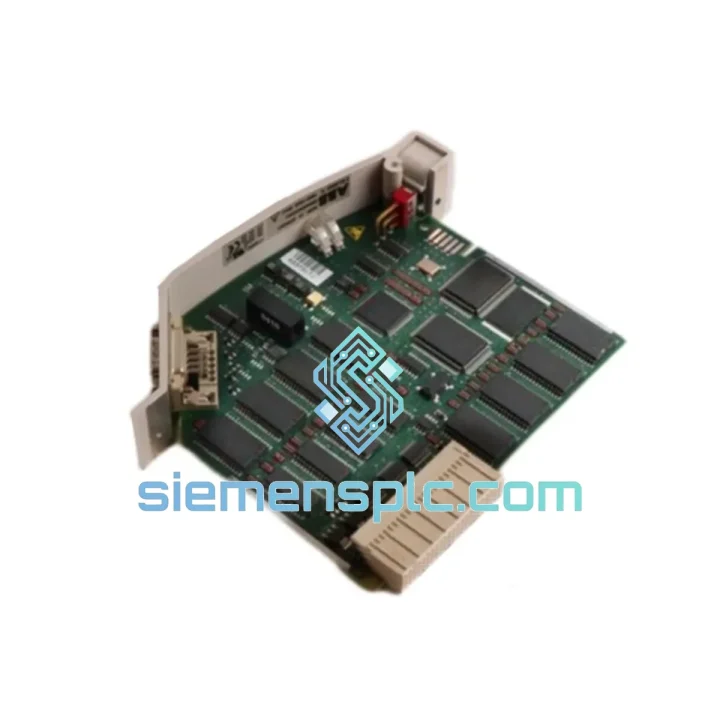

ABB NMTU-21C 3BSE017429R1 Digital Output Module

ABB NMTU-21C (3BSE017429R1) — Stop the Clock on Your Unplanned Shutdown

Every minute your Advant controller sits offline, the losses compound. A failed digital output module shouldn’t cost you a production day. The ABB NMTU-21C (3BSE017429R1) is in stock at our Xiamen warehouse — inspected, tested, and ready to leave today. We’ve shipped this exact module to refineries in the Middle East, paper mills in Scandinavia, and chemical plants across Southeast Asia. The process is the same every time: you call, we ship, your line restarts.

This is not a grey-market listing. Every unit we dispatch carries full traceability documentation — inspection photos, functional test records, and chain-of-custody paperwork. If your maintenance team needs it for audit compliance, it’s already prepared.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The NMTU-21C fails in predictable ways. After a decade of field calls, here’s what you’ll actually encounter:

Symptom: All DO channels show forced-off / no output, controller CPU healthy.
Root cause 90% of the time: the module’s internal DC/DC converter has failed. The backplane bus voltage is present but the field-side 24 V rail is dead. Swap the module — do not waste time probing individual output transistors. Confirm by measuring field-side terminal voltage before and after replacement.

Symptom: Intermittent channel faults, error code logged in Advant Engineer / MasterView 800.
Check the backplane connector first. Oxidized gold fingers on the edge connector cause intermittent bus communication errors that mimic channel hardware faults. Clean with isopropyl alcohol and reseat before condemning the module. If faults persist after reseating, the module is defective.

Symptom: Module inserted, CPU recognizes it, but outputs won’t energize under program control.
Verify the slot address assignment in your Advant Engineer configuration database. The NMTU-21C uses hardware slot addressing — the physical rack position must match the I/O address configured in the controller application. If a previous module was in a different slot, the address map won’t auto-update. Re-download the I/O configuration after physical installation.

Replacement procedure — field-verified steps:

1. Place the affected controller station in STOP mode. Confirm all associated outputs are de-energized at the field device level — do not rely solely on the software state.
2. Document the current slot position and wiring termination labels before disconnecting anything.
3. Remove the faulty NMTU-21C by releasing the front-panel locking lever and sliding the module out of the backplane. Handle by the front panel only — avoid touching the PCB or edge connector.
4. Inspect the replacement module’s edge connector for contamination. Wipe with lint-free IPA cloth if needed.
5. Seat the replacement module firmly until the locking lever clicks. Verify the module LED sequence on power-up: green RUN LED should illuminate within 5 seconds of backplane power application.
6. In Advant Engineer, perform an I/O scan or force a configuration download if the module was previously unrecognized. Confirm all channel status bits clear in the diagnostic display.
7. Return the station to RUN mode. Verify field outputs energize correctly under program control before releasing the process to operations.

Firmware note: The NMTU-21C is a hardware-only module with no user-programmable firmware. No firmware matching or upgrade procedure is required. The module is plug-compatible across all AC 450 and AC 460 revisions that support the Master Bus I/O architecture.

Reliability in Harsh Conditions

The Advant platform was designed for continuous-process industries where ambient conditions are rarely benign. The NMTU-21C reflects that design philosophy. The PCB is conformal-coated to resist moisture ingress and condensation — a real concern in coastal petrochemical facilities and tropical climates where humidity regularly exceeds 90% RH. The module’s galvanic isolation barrier protects the backplane from field-side transients: inductive kickback from solenoid valves, ground potential differences between field cabinets, and surge events from nearby switchgear operations.

Vibration tolerance is built into the mechanical design. The edge connector and front-panel locking mechanism maintain positive electrical contact under continuous vibration loads typical of compressor buildings and rotating equipment enclosures. Industrial-grade capacitors and resistors rated for extended temperature ranges ensure the module performs consistently whether the control room is air-conditioned to 20°C or the cabinet is sitting at 55°C in a summer shutdown.

Units we supply from new-surplus stock have never been subjected to field stress cycles. Tested-refurbished units undergo a 48-hour burn-in at elevated temperature before dispatch. Either way, what arrives at your site is a module that will perform from the first power-on.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx international gateway access. Here’s how the logistics chain works from the moment you confirm your order:

Day 0 (Order Confirmed): Module pulled from climate-controlled storage, final visual and functional check completed, packed in anti-static foam with desiccant. Commercial invoice, packing list, and inspection report prepared. Shipment booked with DHL Express or FedEx International Priority — carrier selected based on your destination country’s fastest available service.

Day 1: Shipment collected by carrier and processed through Xiamen customs. HS code 8537.10 (or applicable sub-heading) declared. Export documentation complete. Tracking number issued to you within 2 hours of carrier pickup.

Days 2–4: Transit to destination depending on region. Europe: typically 3 business days. Middle East: 2–3 business days. Southeast Asia: 1–2 business days. Americas: 3–5 business days. We flag shipments as commercial samples or spare parts as appropriate to expedite customs clearance at destination.

For genuine plant emergencies, contact us directly on WhatsApp before placing the order. We can confirm real-time stock, arrange same-day dispatch, and provide the airway bill number before end of business. We’ve done it before — we’ll do it again.
