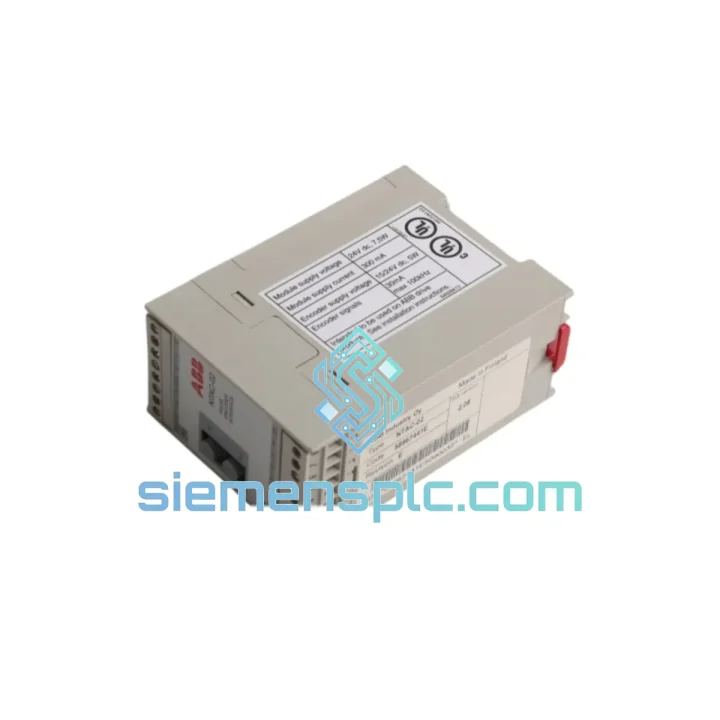

ABB NTAC-02 58967441 Pulse Encoder Interface Module

ABB NTAC-02 58967441 – Stop the Clock on Your Downtime. Ship Today.

Your ACS800 or DCS800 drive just tripped on encoder feedback fault. The line is cold. Every hour offline is burning through your production schedule and your margin. The NTAC-02 pulse encoder interface module is the single component standing between you and full restart — and we have it on the shelf in Xiamen right now.

This is not a listing for a lead-time quote. This is a ready-to-ship, 100% original ABB NTAC-02 (ordering code 58967441), pulled from verified OEM stock, inspected, and boxed for express dispatch within 24 hours of order confirmation. DHL and FedEx International Priority are our standard carriers. Most destinations in Asia receive within 2–3 business days. Europe and North America: 3–5 business days.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that point directly to a failed NTAC-02:

• ACS800 Fault 31 – ENCODER ERROR: Drive loses encoder signal mid-run. First check cable continuity and shield grounding at both ends. If the cable checks out and the fault persists after a cold restart, the NTAC-02 input stage is the next suspect — particularly the differential line receiver ICs, which degrade under sustained ground-loop stress.
• ACS800 Fault 37 – SPEED FEEDBACK: Speed measured via encoder deviates beyond the tolerance set in parameter 50.04. If the encoder itself tests good on an oscilloscope (clean A/B square waves, no missing pulses), the NTAC-02’s signal conditioning path has likely drifted.
• DCS800 Fault F522 – ENCODER LOSS: Identical root cause. The DCS800 is less tolerant of intermittent encoder signal than the ACS800; even a single missed Z-pulse during homing can latch this fault.

Step-by-step replacement procedure (field-tested):

1. De-energize the drive fully. Wait for the DC bus voltage to discharge below 50 V (check with a meter — do not rely on the panel indicator alone).
2. Photograph the existing NTAC-02 wiring at the terminal block before disconnecting. The A+/A−/B+/B−/Z+/Z− and supply terminals are easy to transpose under pressure.
3. Note the encoder supply voltage jumper position (X3 on the PCB: pins 1-2 = 15 V, pins 2-3 = 24 V). Set the replacement module to match before installation.
4. Slide the old module out of the option slot. The slot locking tab is on the left side — press inward while pulling the card handle.
5. Seat the new NTAC-02 firmly until the locking tab clicks. A half-seated card will cause intermittent faults that are extremely difficult to diagnose.
6. Reconnect the encoder cable exactly as photographed. Verify shield is terminated at the drive end only (floating at the encoder end) to prevent ground loops.
7. Power up the drive. Navigate to parameter group 50 (ACS800) or the encoder configuration menu (DCS800) and verify pulse count per revolution matches your encoder nameplate (parameter 50.01 on ACS800).
8. Run the drive at low speed (5–10 Hz) and monitor the actual speed feedback signal in the drive’s diagnostic panel. Confirm it tracks the reference without oscillation.
9. If Fault 31 or F522 reappears immediately after replacement, the encoder cable itself is the problem — not the module. Replace the shielded cable run before condemning the new NTAC-02.

Configuration notes engineers miss: The NTAC-02 does not self-address on the DDCS bus. After installation, parameter 98.02 (ACS800) must be set to the correct option slot number (typically slot 1 or 2 depending on your drive’s hardware revision). Skipping this step leaves the drive ignoring the new module entirely — a frustrating 20-minute troubleshooting loop that costs you nothing once you know it.

Reliability in Harsh Conditions

Industrial sites are not lab environments. The NTAC-02 was designed with that reality in mind. The PCB conformal coating provides resistance against condensation and airborne contaminants common in paper mills, cement plants, and coastal marine installations. The galvanic isolation barrier between the encoder input terminals and the drive’s internal DDCS bus is rated to withstand the kind of common-mode transients generated by large motor switching events — the same transients that destroy unprotected signal cards within months.

Vibration tolerance is validated to IEC 60068-2-6 (sinusoidal, 10–150 Hz, 1 g). In crane and hoist applications where the drive cabinet itself is mounted on a moving structure, this matters. The card-edge connector uses a positive-locking mechanism rather than friction fit, preventing the micro-fretting contact failures that plague cheaper option modules in high-vibration environments.

Thermal performance is equally robust. The module operates continuously at +55 °C ambient — the upper limit of most drive cabinet environments — without derating. In steel mill applications where cabinet cooling is marginal, this headroom is not theoretical; it is the difference between a module that lasts five years and one that fails in eighteen months.

All units we ship are stored in ESD-controlled, climate-regulated conditions. No shelf-aged stock sitting in an uncontrolled warehouse. The module you receive has the same electrical characteristics as the day it left the ABB factory in Finland.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your order:

• Day 0 (Order Confirmed): Module pulled from stock, inspected against part number label and connector condition, packed in anti-static bag with foam-lined carton. Commercial invoice and packing list prepared for customs clearance.
• Day 1 (Dispatch): Shipment handed to DHL Express or FedEx International Priority. Tracking number sent to your email within 2 hours of pickup scan.
• Day 2–3: Delivery to most Southeast Asia, Japan, South Korea, and Australia destinations.
• Day 3–5: Delivery to Europe (Germany, Netherlands, UK, Poland) and North America (USA, Canada, Mexico).
• Day 4–6: Delivery to Middle East, South Asia, and South America destinations.

Export documentation is prepared to comply with Chinese customs regulations and destination country import requirements. HS code 8537.10 is applied by default for drive option modules. If your procurement team requires a specific HS code, certificate of origin, or CITES/dual-use declaration, notify us at order placement — not after dispatch.

For critical plant shutdowns where standard express is not fast enough, we can arrange same-day courier handoff to international freight forwarders operating out of Xiamen Gaoqi International Airport. Contact us directly on WhatsApp for this option: +86 18359268345.
