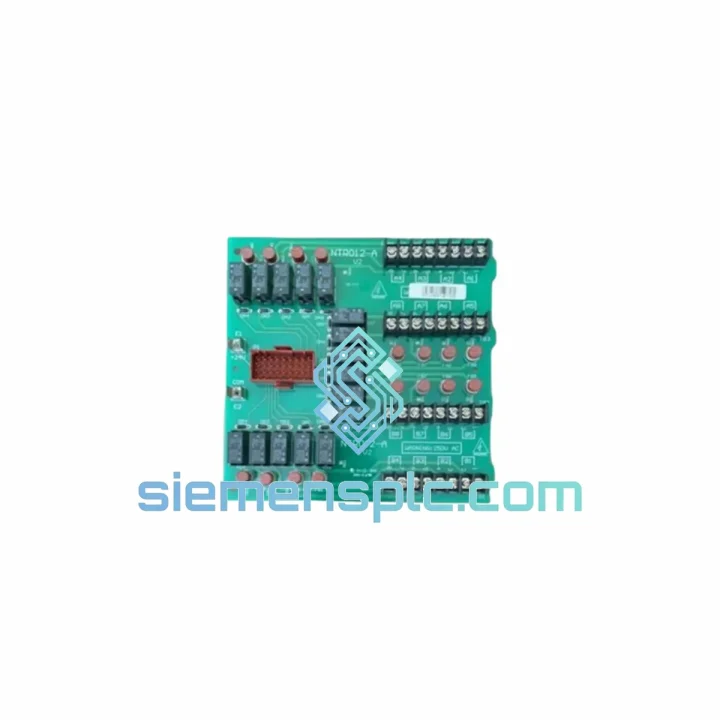

ABB NTRO12-A Analog Input Terminal Board

ABB NTRO12-A: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your DCS loop is dead. The operator screen is flat. Production is bleeding money by the minute. You’ve traced the fault to the analog input terminal board — the NTRO12-A — and you need a verified replacement in your hands before the next shift. That’s exactly why this page exists.

We stock the ABB NTRO12-A at our Xiamen warehouse, pre-inspected and ready for same-day dispatch via DHL Express or FedEx International Priority. No waiting on OEM lead times. No broker runaround. One call, one shipment, back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of pulling failed terminal boards out of live DCS racks, here’s what actually matters when you’re swapping an NTRO12-A under pressure:

1. Confirm the fault is the terminal board, not the AI module. The NTRO12-A is a passive termination board — it doesn’t carry firmware or active logic. If you’re seeing all channels fail simultaneously with no signal at the AI module input, suspect the backplane connector or the terminal board itself. A single-channel fault with correct wiring continuity usually points upstream to the AI module.

2. Check screw terminal torque before condemning the board. Vibration-induced terminal loosening is the #1 cause of intermittent analog faults on this series. Use a calibrated torque screwdriver (0.5–0.6 Nm typical for M3 terminals). Re-torque all field wiring connections before pulling the board.

3. No DIP switches or firmware on this board. The NTRO12-A is purely passive — no address switches, no jumpers, no firmware to match. Replacement is mechanical only. Seat the board firmly into the rack until the backplane connector clicks. Finger-tight is not enough; use the captive screws.

4. Verify field wiring polarity before powering up. Reversed 4–20 mA loop polarity will not damage the board but will produce a zero or negative reading at the controller. Tag and photograph all field wiring before disconnecting. The NTRO12-A uses standard two-wire loop termination — positive to the + terminal, shield to the designated ground bar.

5. Common fault codes to cross-reference:

• AI_FAIL / CHAN_ERR — Channel hardware fault; check terminal board seating and field wiring continuity.
• OPEN_LOOP — 4–20 mA loop broken; verify transmitter power and wiring at the NTRO12-A terminals.
• OVERRANGE / UNDERRANGE — Signal outside configured span; check transmitter calibration, not the terminal board.
• COMM_FAIL on AI module — Backplane connector issue; reseat both the NTRO12-A and the paired AI module.

6. Post-replacement loop check. After seating the new board, force a manual loop test from the DCS engineering station before returning the loop to automatic. Verify mA reading at 4 mA (0%) and 20 mA (100%) against a calibrated loop calibrator. Document the as-found and as-left readings in your maintenance record.

Reliability in Harsh Conditions

The ABB NTRO12-A was designed for continuous duty in process plant environments where air conditioning is a luxury, not a guarantee. The PCB substrate is rated for sustained operation at 55°C ambient — covering the majority of tropical and equatorial plant environments without derating. Conformal coating on production units provides moisture resistance against humidity spikes during monsoon season or steam-laden atmospheres in pulp and paper mills.

Vibration tolerance is built into the connector design. The ABB proprietary backplane connector uses a multi-point contact array that maintains electrical continuity under the low-frequency vibration profiles typical of compressor halls and turbine decks (IEC 60068-2-6 compliant). Field wiring screw terminals are self-locking under vibration when correctly torqued — a detail that separates this design from cheaper third-party alternatives.

EMC performance is equally robust. The terminal board’s layout minimizes ground loops between field cable shields and the DCS chassis ground, reducing susceptibility to variable-frequency drive (VFD) interference — one of the most common sources of analog signal corruption in modern plants. If you’re running VFDs within 10 meters of your I/O racks, the NTRO12-A’s shielding architecture is a genuine advantage over generic terminal boards.

Units in our Xiamen stock are stored in climate-controlled conditions, individually bagged in anti-static ESD packaging, and inspected for connector pin integrity and PCB condition before dispatch. We do not ship boards with bent pins, corroded terminals, or cracked substrates — full stop.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s how your shipment moves:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express or FedEx International Priority, your choice.
• Transit time to Southeast Asia: 1–2 business days.
• Transit time to Middle East / Europe: 2–4 business days.
• Transit time to Americas: 3–5 business days.
• Customs documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) prepared for every shipment. We handle export customs clearance from the China side.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent to your email.
• Emergency freight: For critical shutdowns, contact us directly on WhatsApp for charter freight or hand-carry courier options.

We’ve shipped to refineries in Saudi Arabia, power plants in Vietnam, chemical complexes in India, and paper mills in Scandinavia. The logistics process is proven. Your part arrives when we say it will.
