ABB NVAR-55 Varistor Protection Board — Transient Voltage Clamping Architecture in ABB Drive Systems

In high-power variable frequency drive (VFD) and DC drive installations, the DC bus is continuously exposed to voltage transients originating from grid switching events, motor back-EMF spikes, capacitor bank commutation, and upstream utility disturbances. Without a dedicated, low-impedance energy absorption layer positioned between the rectifier output and the IGBT inverter stage, these transients propagate unchecked — stressing gate oxide layers, accelerating electrolytic capacitor degradation, and ultimately causing catastrophic IGBT failure. The ABB NVAR-55 is the factory-engineered varistor board that occupies this critical protection position within ABB’s modular drive power stack.

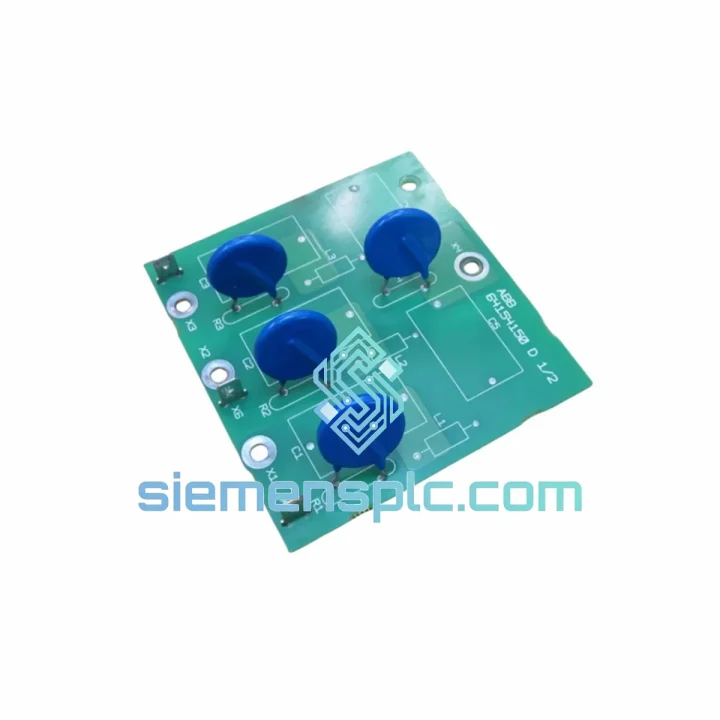

The NVAR-55 is a discrete PCB sub-assembly integrating Metal Oxide Varistor (MOV) elements arranged in a topology matched to the DC bus voltage rating of the target drive frame. MOVs are non-linear resistive devices: under normal operating voltage, their impedance is effectively infinite, drawing negligible leakage current. When a transient event drives the bus voltage above the varistor’s clamping threshold — typically 20–40% above nominal DC bus voltage — the MOV transitions into a low-impedance conduction state within nanoseconds, diverting surge current away from sensitive power semiconductors and dissipating the transient energy as heat within the varistor body. The NVAR-55’s PCB layout is engineered to minimize parasitic inductance in the clamping current path, ensuring the clamping response is not delayed by stray inductance — a design detail that distinguishes OEM boards from generic aftermarket substitutes.

Within ABB’s ACS series (ACS800, ACS880, ACS580, ACS550) and DCS series DC drive platforms, the NVAR-55 is positioned as a field-replaceable unit (FRU). This modularity is a deliberate serviceability design: rather than replacing an entire power module assembly — which may cost tens of thousands of dollars — a maintenance engineer can isolate the varistor board, verify MOV degradation via resistance measurement, and swap the NVAR-55 as a standalone component. This approach directly reduces mean time to repair (MTTR) and lowers the total cost of ownership across the drive’s operational lifecycle.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NVAR-55’s hardware design addresses three distinct failure modes that varistor protection boards must withstand in industrial drive environments:

1. Parasitic Inductance Minimization: The PCB trace routing between the DC bus connection points and the MOV array is optimized for minimum loop inductance. In a conventional through-hole varistor installation, lead inductance can reach 50–100 nH, which introduces a measurable delay in the clamping response and allows the transient voltage to overshoot the clamping level before the MOV conducts. The NVAR-55 uses surface-mount MOV packages with controlled pad geometry and a ground plane structure that reduces effective loop inductance to single-digit nanohenry values — ensuring the clamping voltage seen by the IGBT gate drivers remains within safe operating area (SOA) limits.

2. Thermal Derating and Surge Energy Budget: MOV elements degrade with cumulative energy absorption. Each surge event deposits joules of thermal energy into the varistor body, causing incremental grain boundary degradation in the zinc oxide ceramic matrix. The NVAR-55’s multi-element parallel array distributes this energy across multiple varistor bodies, extending the board’s operational service life compared to single-element designs. The board’s thermal interface to the drive chassis also facilitates passive heat dissipation between surge events, preventing thermal runaway under repetitive transient conditions.

3. EMC Compliance and Conducted Emission Suppression: Beyond surge clamping, the NVAR-55’s MOV array provides a low-impedance path for high-frequency conducted emissions on the DC bus. In drives operating with high switching frequencies (4–16 kHz IGBT switching), the DC bus carries significant high-frequency ripple. The varistor array’s capacitive characteristic at sub-clamping voltages acts as a passive filter element, attenuating high-frequency noise that would otherwise couple into the control board power supply rails and degrade analog measurement accuracy in current and voltage feedback loops.

4. Counterfeit Resistance by Design: ABB’s NVAR-55 incorporates PCB-level authentication features including controlled impedance traces, specific silkscreen markings, and component placement patterns that are difficult to replicate without access to ABB’s Gerber files. Procurement engineers sourcing this board should verify holographic labels, PCB color consistency, and component date codes against known-good references.

System Integration Benefits

• Deterministic Transient Response: Sub-25 ns clamping response ensures IGBT gate drivers never see voltage excursions beyond their rated collector-emitter voltage (Vce), preserving gate oxide integrity and preventing latent damage accumulation.
• Reduced IGBT Replacement Frequency: By absorbing surge energy at the varistor board level, the NVAR-55 directly extends IGBT module service life — IGBTs stressed by repetitive overvoltage events exhibit accelerated bond wire fatigue and solder joint delamination.
• Modular FRU Architecture: The board’s design as a standalone field-replaceable unit allows maintenance teams to perform targeted component replacement without disturbing the drive’s power module wiring, reducing the risk of re-commissioning errors.
• Diagnostic Transparency: MOV degradation is measurable with a standard insulation resistance tester. A degraded NVAR-55 exhibits reduced off-state resistance, providing a quantitative maintenance indicator before catastrophic failure occurs — enabling condition-based maintenance scheduling.
• Compatibility Across Drive Frame Sizes: The NVAR-55 is deployed across multiple ABB drive frame sizes within the ACS and DCS families, reducing the number of unique spare part numbers that a maintenance department must stock.
• Grid Disturbance Immunity: In industrial facilities with weak grid connections, voltage sags and swells are common. The NVAR-55 provides the first line of defense against swell-induced overvoltage events that would otherwise trigger drive overcurrent trips or damage DC bus capacitors.
• Capacitor Bank Protection: DC bus electrolytic capacitors are sensitive to voltage stress. By clamping transient peaks, the NVAR-55 prevents capacitor voltage rating exceedance, which is the primary cause of electrolytic capacitor failure in drive systems.
• Reduced Unplanned Downtime: Proactive replacement of the NVAR-55 during scheduled maintenance intervals — before MOV degradation reaches critical levels — eliminates the unplanned downtime scenario caused by varistor board failure during production operation.
