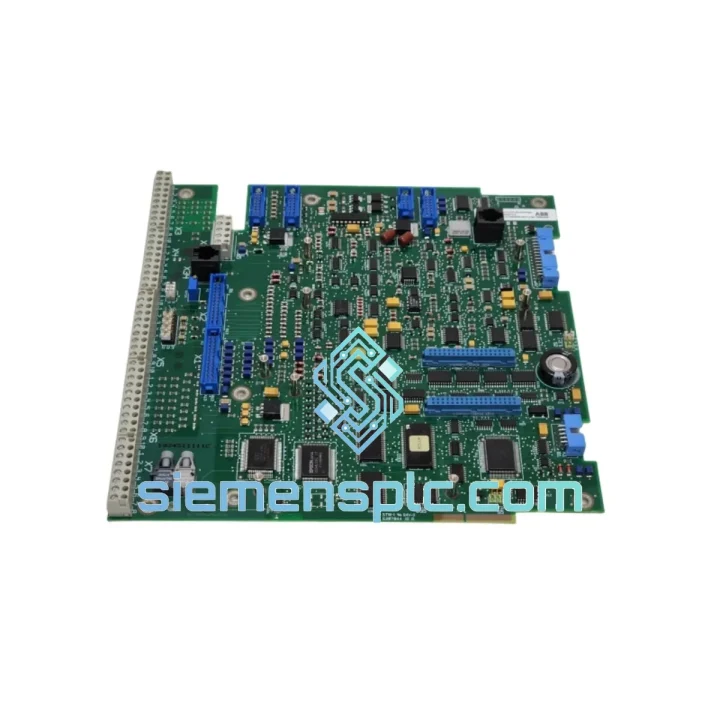

ABB SDCS-CON-2B 3ADT309600R1012 DC Drive Control Board – DCS Series

ABB SDCS-CON-2B 3ADT309600R1012 – Core Control Architecture of the DCS DC Drive Platform

The SDCS-CON-2B (catalog reference 3ADT309600R1012) is the central processing and regulation board within ABB’s DCS-series DC drive family, covering the DCS400, DCS500, and DCS600 converter platforms. Its function extends well beyond simple signal routing: this board executes the closed-loop armature current regulation, field current supervision, speed feedback processing, and all fieldbus communication arbitration that define the deterministic behavior of a DC drive system. In high-inertia applications — steel rolling mills, paper machine sections, mine hoists, and marine winch drives — the SDCS-CON-2B is the component whose failure immediately halts production. Stocking a verified spare is not optional; it is a maintenance engineering requirement.

The board interfaces directly with the SDCS-POW-4 power supply board via a dedicated backplane connector, receiving regulated ±15 V and +5 V rails. It communicates with the SDCS-FEX-2 field excitation board through an internal serial link operating at 1 Mbit/s, enabling coordinated armature-field weakening transitions without external wiring. The SDCS-MEM-8 memory board plugs into a dedicated socket on the SDCS-CON-2B, storing all drive parameters in non-volatile EEPROM so that a board swap does not require full recommissioning — parameter upload from DriveWindow or DriveAP restores the drive to its pre-failure state within minutes.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SDCS-CON-2B is built around a 16-bit fixed-point DSP core clocked at 20 MHz, executing the current regulation loop at a 3.3 ms cycle time — fast enough to respond to armature current transients in thyristor-bridge converters without introducing phase lag that would destabilize the outer speed loop. The current controller uses a PI structure with anti-windup clamping, preventing integrator saturation during current-limit events such as motor stall or rapid deceleration.

Optical Isolation Architecture: All eight digital inputs pass through 6N137 high-speed optocouplers with a propagation delay of less than 60 ns. This isolation barrier sustains 2,500 V RMS between the field wiring and the board’s logic ground, protecting the DSP from common-mode transients generated by thyristor firing events — a critical design requirement in SCR-based DC drives where dV/dt on the DC bus can exceed 500 V/μs.

EMC Design: The PCB uses a four-layer stackup with dedicated ground and power planes. Analog signal traces are routed on the inner layers, shielded from the digital switching noise on the outer layers. Ferrite beads are placed on all power supply entry points, and the DDCS fiber-optic interface eliminates galvanic coupling on the fieldbus entirely — a significant advantage over copper RS-485 implementations in electrically noisy drive cabinets.

Redundancy Arbitration Logic: In master-follower drive configurations (common in multi-motor paper machine sections), the SDCS-CON-2B implements a hardware-level torque-sharing arbitration via the DDCS ring. If the master drive loses its speed reference, the board’s firmware detects the loss-of-signal condition within one control cycle (3.3 ms) and asserts a configurable fault output, allowing the PLC to execute a controlled ramp-down rather than an uncontrolled coast-stop.

Thermal Management: The board operates without active cooling up to +55 °C ambient. Critical power components — the onboard DC/DC converter and the relay output drivers — are mounted on the board edge closest to the drive cabinet’s forced-air duct, leveraging convective airflow from the drive’s internal fan without requiring dedicated heatsinks on the control board itself.

System Integration Benefits

• Zero-recommissioning board swap: With SDCS-MEM-8 installed, replacing a failed SDCS-CON-2B requires no parameter re-entry. The memory module retains all tuning data, reducing MTTR from hours to under 30 minutes.
• Deterministic current loop timing: The 3.3 ms current regulation cycle is hardware-fixed, not OS-scheduled, ensuring consistent torque response regardless of fieldbus load or diagnostic polling activity.
• Fiber-optic DDCS isolation: The CH0 DDCS interface eliminates ground-loop interference between the drive and the PLC/DCS host, a common source of nuisance trips in plants with long cable runs between motor control centers and control rooms.
• Modular fieldbus expansion: A single option slot accepts NPBA-12 (PROFIBUS-DP), NIBA-01 (DeviceNet), or NMBA-01 (Modbus RTU) adapters without hardware modification to the base board, protecting the investment when plant communication standards change.
• Integrated diagnostic transparency: The board exposes 32 fault codes and 16 alarm codes via the DDCS link, each with a timestamp referenced to the drive’s internal clock. This data is accessible in DriveWindow without interrupting drive operation, enabling root-cause analysis without production downtime.
• Coordinated field weakening: The 1 Mbit/s internal link to SDCS-FEX-2 allows the armature and field controllers to exchange setpoints every control cycle, enabling smooth field-weakening transitions above base speed without the phase mismatch that occurs when armature and field are regulated by separate, unsynchronized controllers.
• Scalable drive topology support: The same SDCS-CON-2B hardware supports single-quadrant, two-quadrant, and four-quadrant (regenerative) converter configurations through firmware parameter selection, reducing spare-part inventory complexity for plants operating mixed drive topologies.
• Long-term parts availability: The DCS series has an extended service life in heavy industry. Maintaining a board-level spare for the SDCS-CON-2B — the highest-failure-risk component in the drive — is a lower-cost strategy than holding a complete drive spare, particularly for large-frame DCS600 units.

Quality Assurance & Global Logistics

Every SDCS-CON-2B 3ADT309600R1012 unit dispatched from our Xiamen facility is sourced through documented industrial supply channels and subjected to a structured pre-shipment inspection protocol. Visual examination covers PCB surface condition, component marking authenticity, solder joint integrity, and connector pin condition. Where test fixtures are available, power-on verification confirms that the board’s onboard power rails and communication interfaces are functional prior to packaging.

Shipments originate from Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard in-stock orders are dispatched within 1–3 business days of payment confirmation. Export documentation — commercial invoice, packing list, and Certificate of Origin — is prepared for every shipment. HS Code 8537.10 is declared for customs classification. For time-critical plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST.

Bulk procurement (5 units or more) qualifies for volume pricing and consolidated freight options. All units carry a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Technical pre-sales support — including compatibility verification against your drive serial number and firmware version — is available at no charge via email or WhatsApp.
