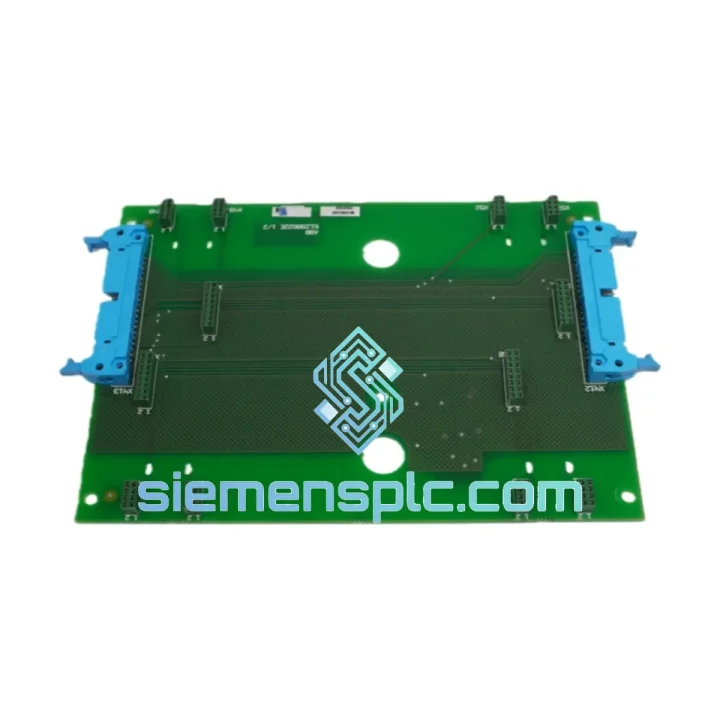

ABB NXPP-03C 64008544 Control Distribution Board – NXPP Series

ABB NXPP-03C 64008544 – Power Distribution Architecture in Distributed Control Environments

The ABB NXPP-03C (catalog reference 64008544) is a factory-original control distribution board engineered for deployment within ABB’s NXPP-series modular control infrastructure. Its primary function is to route and condition 24 VDC bus power across downstream I/O and communication modules while maintaining galvanic separation between field-side and logic-side circuits. In multi-rack DCS architectures, this board acts as the electrical backbone that sustains deterministic power delivery to each module slot, directly influencing the stability of scan-cycle timing and the integrity of analog signal chains.

Unlike generic distribution boards, the NXPP-03C integrates per-channel overcurrent protection logic that isolates individual module slots upon fault detection without interrupting adjacent slots. This design prevents a single shorted field device from cascading into a full-rack shutdown — a critical requirement in continuous-process industries such as petrochemical refining, pulp and paper, and power generation where unplanned downtime carries measurable financial and safety consequences.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NXPP-03C employs a distributed power-rail topology rather than a centralized bus bar. Each module slot receives power through an independent copper trace segment rated for 2 A continuous, with a shared ground plane that minimizes common-mode noise injection between adjacent channels. This trace-level segmentation is the hardware foundation for the board’s fault-isolation behavior: when a downstream module draws excess current, a solid-state protection element on that specific trace enters current-limiting mode within microseconds, clamping the fault current before the upstream fuse or breaker responds.

From an EMC standpoint, the board incorporates a multi-layer PCB stack-up with a dedicated ground plane between the power layer and the signal layer. This geometry reduces radiated emissions from the 24 VDC switching transients that occur during module hot-insertion events. Ferrite beads placed at each slot connector further attenuate high-frequency noise (typically above 10 MHz) that could otherwise couple into adjacent analog input modules and degrade measurement accuracy.

The board’s connector interface to the NXPP backplane uses a gold-plated, 64-pin edge connector with a wiping action on insertion, which mechanically displaces surface oxidation and maintains contact resistance below 10 mΩ over the rated 500 insertion cycles. This is particularly relevant in maintenance-intensive environments where modules are swapped during scheduled outages.

Thermal management is handled passively through a copper heat-spreading layer bonded to the PCB substrate. Under full 10 A aggregate load at 60 °C ambient, the board’s internal temperature rise is constrained to approximately 15 K above ambient, keeping all protection elements within their rated operating envelope without requiring forced-air cooling.

System Integration Benefits

• Slot-level fault isolation: Per-channel electronic protection prevents a single module fault from propagating to adjacent slots, preserving partial-system availability during fault conditions.
• Deterministic power delivery: Regulated per-slot current limiting ensures that module inrush during power-up does not cause voltage sag on the shared 24 VDC rail, maintaining stable logic supply to CPU and communication modules throughout the startup sequence.
• Hot-swap compatibility: The board’s protection circuitry handles the inrush current spike associated with module insertion under live-bus conditions, enabling online replacement without rack de-energization.
• Diagnostic transparency: Fault status on each slot is reflected via backplane status bits readable by the NXPP CPU module, allowing the control system to log fault events with millisecond-resolution timestamps for post-incident analysis.
• Reduced wiring complexity: Centralized power distribution through the board eliminates the need for individual fuse holders and terminal blocks per module, reducing panel wiring density and associated installation labor.
• Noise immunity for analog chains: The multi-layer PCB ground plane and per-slot ferrite filtering reduce common-mode noise coupling, directly improving signal-to-noise ratio on 4–20 mA and ±10 V analog input modules installed in the same rack.
• Long-term contact reliability: Gold-plated backplane connectors with wiping-action insertion maintain sub-10 mΩ contact resistance across the rated service life, preventing intermittent faults caused by connector oxidation in humid or chemically aggressive environments.
• Thermal headroom for high-density racks: Passive copper heat spreading limits internal temperature rise to ≤15 K above ambient at full load, allowing deployment in high-density rack configurations without forced-air cooling infrastructure.

Quality Assurance & Global Logistics

Every ABB NXPP-03C 64008544 unit supplied by siemensplc.com is sourced through verified ABB-authorized distribution channels. Units retain original ABB factory markings, serial numbers, and date codes. Prior to dispatch, each board undergoes a structured inspection protocol: visual examination of PCB surface and connector pins, continuity verification across all slot power rails, and cross-check of the catalog number against ABB’s published part database to confirm revision-level accuracy.

Shipments originate from our Xiamen, China logistics hub. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every order. For customers requiring expedited delivery, DHL Express and FedEx International Priority services provide 3–5 business day transit to major industrial hubs in Europe, the Americas, the Middle East, and Southeast Asia. Economy freight options via EMS or consolidated sea freight are available for bulk procurement. All units are shipped in ESD-protective packaging with desiccant inserts to prevent moisture ingress during transit.

A 12-month warranty covers all units against manufacturing defects and DOA (Dead on Arrival) conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued accordingly.
