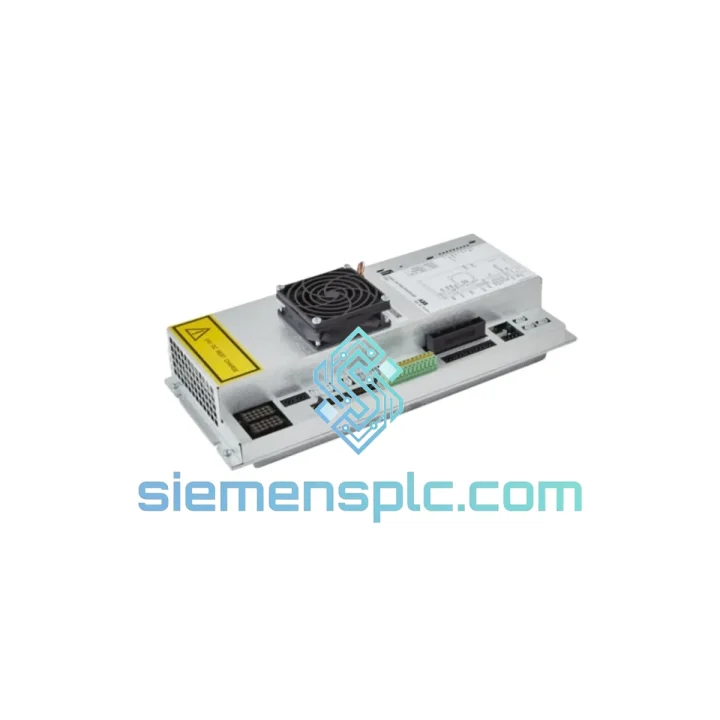

ABB PDB-02 3HNA023093-001 Thermocouple Module

ABB PDB-02 3HNA023093-001 — Stop the Clock on Your Downtime

Every minute your IRC5 or S4C+ robot controller sits idle, you’re bleeding production output. The ABB PDB-02 (Part No. 3HNA023093-001) Thermocouple/mV Input Module is a single-point failure that can halt an entire welding cell, casting line, or automotive body shop. We stock it. We ship it today. From Xiamen to your dock — fast.

This is not a listing page. This is your recovery plan.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience. If you’re here, you’re probably staring at one of these fault codes or symptoms:

Common Fault Indicators Pointing to PDB-02 Failure:

• ERR_TC_OPEN / Thermocouple Open Circuit: The module has lost continuity on one or more TC channels. Before condemning the module, verify wiring at the terminal block — a broken TC wire mimics a dead module. If wiring checks out, the PDB-02’s input conditioning circuit has failed.
• Temperature Reading Frozen or Drifting: ADC degradation inside the module. Common after years of thermal cycling in foundry or welding environments. The reading won’t throw a hard fault — it just lies to you. Check against a calibrated reference thermometer on the same TC.
• CJC Offset Error: If all channels read consistently high or low by a fixed offset (e.g., +15°C across the board), the cold junction compensation circuit is drifting. This is a module-level fault — not a sensor issue.
• IRC5 Event Log: “Analog Input Board Communication Fault”: The backplane communication between the PDB-02 and the main CPU board has dropped. Reseat the module first. If the fault persists after reseating, the module’s bus interface is damaged.

Step-by-Step Replacement Procedure:

1. Safe State First: Command the robot to a safe position, engage E-stop, and isolate the IRC5 cabinet from mains power. Wait 5 minutes for capacitors to discharge before opening the controller.
2. Document Before You Touch: Photograph the existing wiring at the PDB-02 terminal block. TC polarity matters — reversing a Type K pair will give you a mirror-image temperature reading that looks plausible but is wrong.
3. Module Extraction: The PDB-02 is a plug-in PCB. Release the retention latch (if fitted), grip the module by its ejector handles, and pull straight out. Do not rock side-to-side — the backplane connector pins are fragile.
4. Inspect the Backplane Connector: Before inserting the new module, visually inspect the backplane socket for bent pins or corrosion. A damaged backplane socket will kill a new module within hours.
5. Insert New Module: Align the PCB guide rails, push firmly until the backplane connector fully seats, and engage the retention latch. A half-seated module will power up but produce erratic readings.
6. No DIP Switch or Address Configuration Required: The PDB-02 in IRC5 systems uses automatic slot addressing via the backplane — the controller assigns the I/O address based on physical slot position. No manual address setting needed. Confirm the slot number matches your RobotWare I/O configuration.
7. Firmware Compatibility: The PDB-02 is compatible with RobotWare 5.x and 6.x without firmware flashing. If you are running an older S4C+ system, verify the controller’s system software version supports the 3HNA023093-001 revision. Contact us if you need revision-specific units.
8. First Power-Up Check: After restoring power, navigate to the FlexPendant → Event Log. A clean startup shows no analog I/O faults. Verify live TC readings against a known temperature source before releasing the robot to production.

Reliability in Harsh Conditions

The PDB-02 was designed for environments that would destroy consumer-grade electronics. ABB’s IRC5 platform is deployed in automotive stamping plants, aluminum die-casting cells, and offshore oil & gas automation — none of which are gentle operating environments.

The module’s PCB uses conformal coating on signal-layer traces, providing resistance to condensation and airborne contaminants common in foundry and food-processing facilities. The backplane connector is rated for thousands of insertion cycles, critical in maintenance-intensive operations where modules are swapped during scheduled shutdowns.

Vibration tolerance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the frequency ranges generated by heavy stamping presses and robotic gantry systems operating in proximity. Thermal performance is validated across the full 0–55°C operating range with derating curves published in ABB’s IRC5 hardware manual — the module does not require forced cooling in standard cabinet configurations.

Units we supply from tested surplus stock are inspected for capacitor ESR degradation (a primary aging failure mode in analog input modules), solder joint integrity under X-ray or visual magnification, and connector contact resistance. We do not ship modules that pass visual inspection but fail electrical characterization.

Global Express Logistics

Our Xiamen warehouse is positioned for speed. Xiamen Gaoqi International Airport (XMN) operates direct cargo routes to Frankfurt, Amsterdam, Chicago O’Hare, Dubai, and Singapore — covering the major industrial hubs in Europe, North America, the Middle East, and Southeast Asia.

Standard Express Flow:

• Order Confirmed → Same Day: Module pulled from shelf, ESD-bagged, and packed in double-wall carton with foam suspension. Export documentation (commercial invoice, packing list, HS code 8537.10) prepared.
• Day 1: DHL Express or FedEx International Priority pickup. Tracking number issued to buyer within 2 hours of handover.
• Day 2–4 (Europe/Middle East): Typical transit time via DHL Express from XMN. Customs clearance handled by DHL’s brokerage network — no action required from the buyer in most EU countries.
• Day 3–5 (Americas): FedEx IP to US/Canada/Mexico. FDA/CBP entry handled automatically for HS 8537.10 industrial components.
• Day 2–3 (Southeast Asia): DHL or SF Express for regional delivery to Thailand, Vietnam, Indonesia, Malaysia, Philippines.

For genuine production emergencies, contact us directly on WhatsApp before placing an order — we can confirm real-time stock, arrange same-day cutoff, and coordinate with the courier for priority handling. We have shipped to active production facilities on a Saturday morning when the plant manager needed a module by Monday’s first shift.

All shipments include ESD-safe inner packaging, a printed test report (where applicable), and a copy of the commercial invoice for customs. Duties and taxes are buyer’s responsibility unless DDP (Delivered Duty Paid) terms are agreed in advance.
