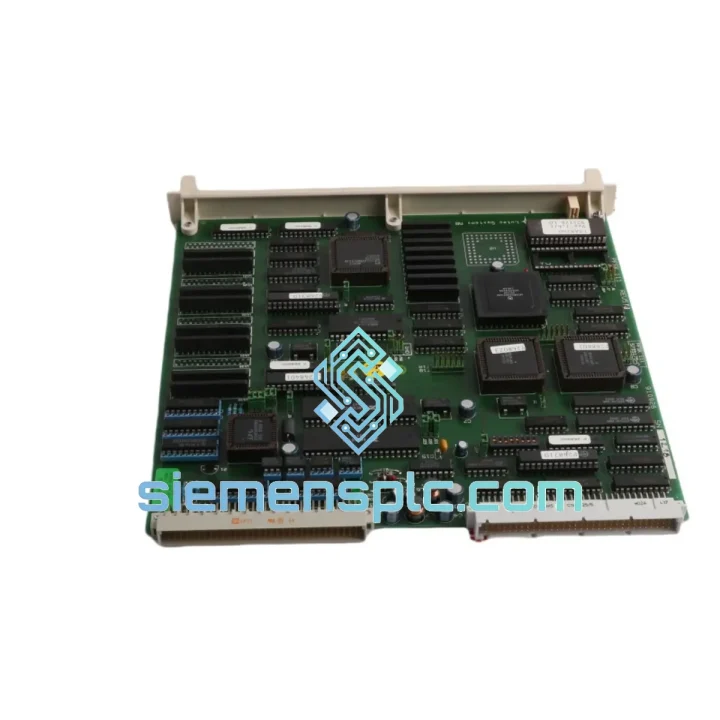

ABB PFSK111 DCS Module – AC800M Series

ABB PFSK111 VDU Interface Board — Signal Arbitration and Display Logic in AC800M Distributed Control Architecture

The PFSK111 is a Video Display Unit interface board engineered for deployment within ABB’s AC800M Distributed Control System platform. Its primary function is to manage the communication pathway between the controller backplane and operator display terminals, translating internal process data into structured video output signals while maintaining deterministic cycle synchronization with the AC800M CPU modules. In multi-controller configurations, the PFSK111 participates in the supervisory data bus arbitration layer, ensuring that display refresh cycles do not introduce latency jitter into the primary control loop execution.

Within the AC800M hardware hierarchy, the PFSK111 occupies a defined slot position on the S800 I/O bus and communicates via the Advant Fieldbus 100 (AF100) protocol stack. Its onboard logic handles address decoding, interrupt prioritization, and frame synchronization independently of the PM8xx CPU, which means display-side faults are isolated from the control execution domain. This architectural separation is a deliberate design choice that prevents HMI-layer anomalies from propagating into the real-time control thread — a critical requirement in continuous process environments such as refinery distillation columns or power plant turbine control loops.

The board’s passive backplane interface uses a 96-pin DIN 41612 Type C connector, providing both power rails (5 VDC logic, 24 VDC field) and differential signal lines. The differential signaling scheme inherently rejects common-mode noise, which is significant in environments with high-frequency switching equipment operating in proximity to the control cabinet. EMC performance is further reinforced by the board’s ground plane topology, which routes return currents through a low-impedance path that minimizes ground loop formation across the backplane.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Arbitration: The PFSK111 implements a token-passing arbitration scheme on the S800 I/O bus. Each module holds the bus token for a fixed time slice before passing it to the next addressed node. This deterministic arbitration prevents bus contention under high-load conditions and guarantees a bounded worst-case latency for display data refresh — a measurable advantage over polled-bus architectures where latency scales with node count.

Optical Isolation on Signal Interfaces: All external-facing signal lines on the PFSK111 pass through optocoupler stages rated at 2.5 kV isolation voltage. This galvanic barrier prevents ground potential differences between the control cabinet and the operator workstation from coupling noise into the board’s logic circuitry. In installations where the HMI terminal is located in a separate electrical zone — common in large petrochemical complexes — this isolation is the primary defense against common-mode transients induced by motor drive switching events.

EMC Design — Conducted and Radiated Immunity: The board’s PCB layout employs a four-layer stackup with dedicated power and ground planes sandwiched between the signal layers. This geometry reduces the loop area of high-frequency current paths, directly lowering radiated emissions and improving susceptibility margins. Decoupling capacitors are placed within 2 mm of each IC power pin, targeting the 10 MHz to 100 MHz frequency band where switching regulators and digital logic generate the majority of conducted interference. Ferrite beads on the 5 VDC supply line provide additional attenuation above 50 MHz.

Watchdog and Fault Detection Logic: An onboard hardware watchdog timer monitors the board’s internal processor activity. If the processor fails to reset the watchdog within the configured timeout window (typically 100 ms), the watchdog asserts a fault signal on the backplane, triggering a controlled shutdown of the VDU output and logging a diagnostic event to the AC800M system event buffer. This prevents silent failures where the display appears operational but is no longer receiving valid process data.

Thermal Management: The PFSK111’s power dissipation profile is designed for convection cooling within a standard AC800M cabinet. The board’s component placement concentrates heat-generating devices along the top edge, aligning with the natural convection airflow path in a vertically mounted rack. No forced-air cooling is required within the specified operating temperature range, reducing the number of mechanical failure points in the cabinet environment.

System Integration Benefits

• Fault Domain Isolation: The PFSK111’s independent bus interface ensures that a display-side fault does not interrupt the AC800M CPU’s control execution cycle. The controller continues to process I/O and execute control algorithms regardless of VDU board status, maintaining process continuity during HMI maintenance windows.
• Deterministic Display Refresh: The token-passing bus arbitration delivers a bounded refresh latency, allowing operators to rely on display data currency for time-critical process decisions without uncertainty about data age.
• Diagnostic Transparency: All board-level fault events are written to the AC800M system event log with timestamp and fault code, enabling maintenance engineers to correlate display anomalies with specific process events or power quality disturbances.
• Hot-Swap Compatibility: The PFSK111 supports live insertion and removal in AC800M racks equipped with hot-swap backplanes, allowing board replacement without a full system shutdown — a significant operational advantage in continuous-process facilities with strict uptime requirements.
• Backward Compatibility: The board is electrically and mechanically compatible with earlier Advant Controller 800 rack generations, enabling phased system upgrades without requiring simultaneous replacement of the entire controller chassis.
• Reduced Wiring Complexity: By integrating the VDU interface function onto a single plug-in board, the PFSK111 eliminates the external cabling that would otherwise be required between a standalone display controller and the process bus, reducing potential failure points and simplifying cabinet layout.
• Standardized Spare Parts Management: A single PFSK111 board covers VDU interface requirements across multiple AC800M controller variants (PM851 through PM866 series), allowing maintenance teams to maintain a minimal spare parts inventory without stocking variant-specific boards.
• Long-Term Parts Availability: ABB’s AC800M platform has an extended product lifecycle with documented spare parts availability commitments, and the PFSK111 remains an active catalog item supported by ABB’s global service network.

Quality Assurance & Global Logistics

Every PFSK111 unit dispatched from our Xiamen facility is sourced through verified ABB-authorized distribution channels. Each board carries the original ABB part label, revision code, and date code traceable to the manufacturing batch. Before shipment, units undergo a four-stage inspection protocol: visual examination of PCB surface and connector integrity, power-on functional verification, firmware and label cross-check against ABB’s official part number database, and final ESD-safe packaging in anti-static bags with desiccant, per IEC 61340-5-1.

Logistics are handled via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–5 business days to Europe and North America, and 2–4 business days to Southeast Asia and the Middle East. All shipments include a commercial invoice, packing list, certificate of origin, and a Konmask Certificate of Conformity. Export documentation is prepared in compliance with applicable customs regulations for industrial electronic components (HS Code 8537.10). Expedited same-day dispatch is available for confirmed urgent plant shutdown scenarios.
