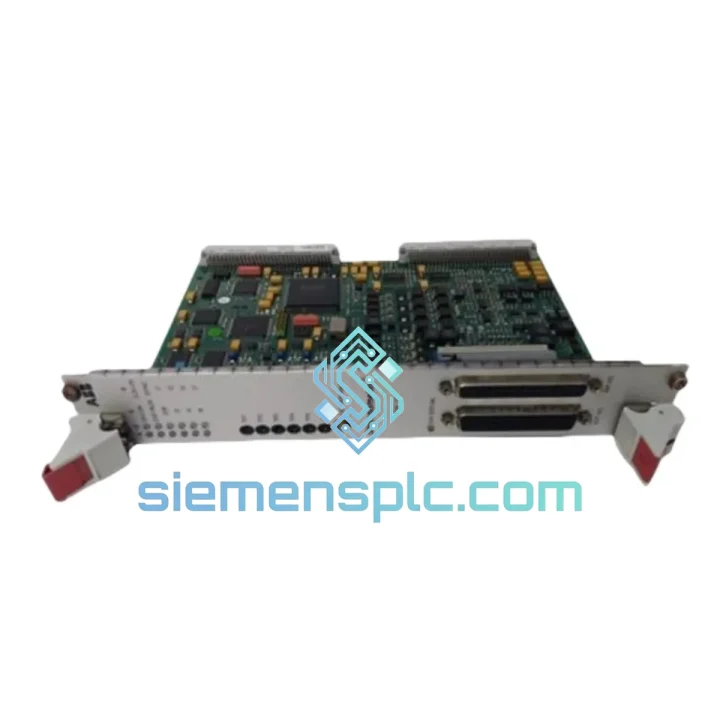

ABB PFSK165 3BSE027778R1 DCS Module – AC800M Series

ABB PFSK165 (3BSE027778R1): Backplane Server Motherboard for AC800M Distributed Control Systems

The PFSK165, catalogued under ABB part number 3BSE027778R1, is the dedicated server motherboard module for the AC800M Distributed Control System (DCS) platform. Its function within the controller chassis is not peripheral — it is the arbitration and communication substrate through which all processor modules, I/O interfaces, and redundancy logic exchange data. Without a correctly functioning PFSK165, the AC800M controller cannot maintain deterministic scan-cycle execution or sustain hot-standby switchover integrity.

The AC800M platform is deployed across continuous-process industries including power generation, oil and gas upstream/midstream, pulp and paper, and large-scale chemical processing. In these environments, the server motherboard must sustain uninterrupted backplane bus throughput across temperature gradients, vibration profiles, and electromagnetic interference levels that would degrade consumer-grade hardware within weeks. The PFSK165 is rated for exactly these conditions, with industrial-grade PCB materials, conformal coating options, and component selection aligned to IEC 61131-2 environmental classifications.

This page provides a complete technical reference for procurement engineers, maintenance planners, and systems integrators evaluating the PFSK165 as a spare, replacement, or upgrade component within an active AC800M installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Architecture and Arbitration: The PFSK165 implements a multi-master backplane bus topology within the AC800M chassis. Each slot on the chassis backplane is assigned a fixed address, and the server motherboard maintains a slot-presence register that is polled at each scan cycle. When a processor module (PM8xx) initiates a data read from an I/O communication interface (CI8xx), the PFSK165 arbitrates bus access using a priority-weighted round-robin scheme, preventing bus contention while maintaining bounded latency for high-priority control loops. This architecture ensures that even under maximum chassis population — up to 12 modules — the worst-case bus access latency remains within the deterministic window required by IEC 61784-1 fieldbus timing constraints.

EMC Design and Signal Integrity: The PCB layout of the PFSK165 employs a multi-layer stackup with dedicated ground planes separating the high-frequency digital logic layers from the backplane interface traces. Differential signaling is used on all inter-module data lines to reject common-mode noise induced by adjacent power electronics or variable-frequency drives operating in the same panel. Transient voltage suppression (TVS) diodes are placed at all backplane connector pins, providing clamping against EFT bursts up to 4 kV peak (EN 61000-4-4 Level 4). The module’s metal faceplate provides a continuous Faraday shield path to chassis ground, attenuating radiated emissions from the internal oscillator circuits.

Redundancy Arbitration Logic: In hot-standby configurations, the PFSK165 participates in the redundancy handshake protocol managed by the AC800M Redundancy Module (RM). The server motherboard maintains a synchronization heartbeat signal on a dedicated backplane line, distinct from the data bus. If the primary controller’s PFSK165 fails to assert this heartbeat within the configured timeout window (typically 50–200 ms, application-configurable), the standby controller’s PFSK165 asserts bus mastership and the PM module in the standby chassis assumes control output authority. This bumpless transfer mechanism operates at the hardware level, independent of the application software state, ensuring switchover completes before the watchdog timer of any connected fieldbus device expires.

Thermal Management: The PFSK165 relies on forced-air convection within the AC800M cabinet. The PCB is populated with low-power CMOS logic ICs selected for junction temperatures rated to 125 °C, providing a thermal margin of approximately 70 °C above the maximum ambient specification. This margin accommodates localized hot spots from adjacent high-dissipation modules without triggering thermal throttling or fault conditions.

System Integration Benefits

• Zero-Downtime Redundancy: The PFSK165 supports bumpless hot-standby switchover in under 200 ms, meeting the availability requirements of SIL 2 and SIL 3 process safety applications without interrupting field device communication.
• Drop-In Chassis Compatibility: The module inserts into any AC800M chassis slot designated for the server motherboard position. No re-termination of field wiring, no re-download of application programs, and no reconfiguration of I/O addressing is required during replacement.
• Deterministic Scan-Cycle Execution: By managing backplane bus arbitration in hardware, the PFSK165 decouples scan-cycle jitter from application software complexity. Control loops with cycle times as short as 5 ms can be sustained reliably across full chassis population.
• Diagnostic Transparency: The module exposes slot-level health status to ABB Control Builder M (CBM) via the backplane diagnostic register. Maintenance engineers can read module temperature, bus error counters, and redundancy state from the engineering workstation without physical access to the cabinet.
• Fieldbus Protocol Agnosticism: Because the PFSK165 handles only backplane arbitration and does not implement fieldbus protocol stacks directly, it is compatible with all CI8xx communication interface modules regardless of the fieldbus protocol in use — PROFIBUS DP, Foundation Fieldbus H1, Modbus TCP, or IEC 61850.
• Long-Term Spare Parts Availability: The PFSK165 / 3BSE027778R1 has been in production for over a decade and remains available through authorized distribution channels. Its continued availability protects the capital investment in existing AC800M installations against obsolescence risk.
• Firmware Forward Compatibility: The module’s firmware is managed through the AC800M system software stack. Upgrades applied via CBM propagate to the PFSK165 without hardware modification, extending functional life as ABB releases platform updates.
• Reduced Commissioning Risk: Because the PFSK165 is a direct hardware replacement with no configuration parameters of its own, commissioning after replacement is limited to a power cycle and a system health check in CBM — typically completed within 30 minutes by a qualified automation technician.

Quality Assurance & Global Logistics

Every PFSK165 / 3BSE027778R1 unit dispatched from our Xiamen, China facility has passed a structured pre-shipment verification protocol. Visual inspection confirms PCB integrity, connector pin condition, and label authenticity against ABB’s published part marking standards. Functional bench testing validates backplane bus signal levels and module identification response using an AC800M test chassis. Firmware version is recorded and provided with the shipment documentation.

Units are packed in anti-static ESD bags, placed in foam-lined rigid cartons, and outer-packed in double-wall corrugated boxes rated for international air freight handling. For shipments requiring temperature-controlled transit, gel-pack inserts are available on request.

Logistics options from Xiamen include DHL Express (3–5 business days to Europe and North America), FedEx International Priority (2–4 business days), and TNT Economy Express for cost-sensitive shipments. Sea freight consolidation is available for multi-unit orders. Full export documentation is provided with every shipment: commercial invoice, packing list, certificate of origin, and — for regulated industries — a functional test report and certificate of conformance.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target replacement dispatch of 5 business days from fault confirmation. Extended 24-month warranty coverage is available for volume procurement agreements.
