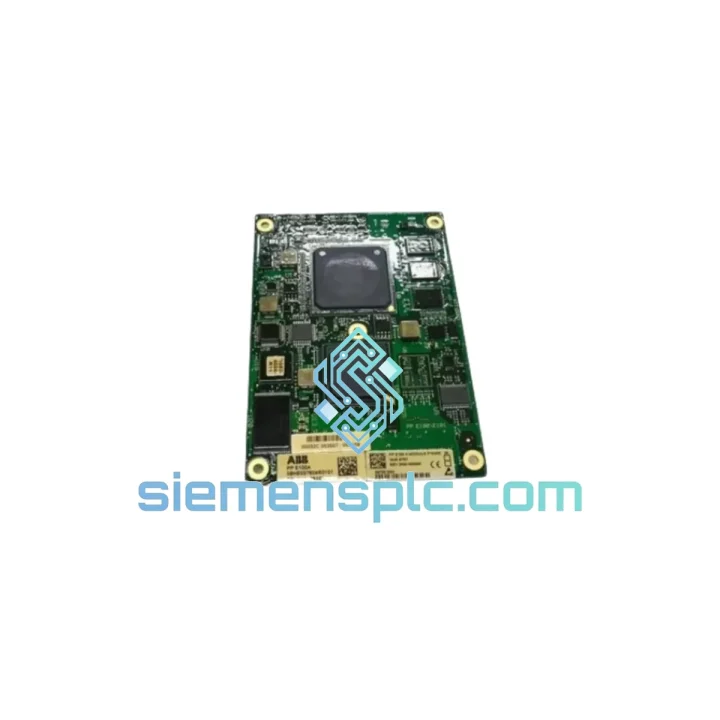

ABB PPD104 3BHE017400R0101 DCS Memory Card

ABB PPD104 3BHE017400R0101 — Stop the Clock on Your Downtime, Ship Today

Every minute your AC800M controller sits offline, the meter is running. A failed program memory card doesn’t just halt a machine — it can freeze an entire production line, trigger cascading safety shutdowns, and put your maintenance team under impossible pressure. The ABB PPD104 (3BHE017400R0101) is the factory-specified non-volatile program memory card for the AC800M platform. We stock it. We ship it today from Xiamen. No lead-time negotiation, no waiting on OEM allocation queues.

If you’re reading this at 2 AM during a forced outage, here’s what matters: this is the exact part, it’s verified original ABB, and it can be on a DHL Express flight within hours of your order confirmation. We’ve done this before — for refineries in the Middle East, paper mills in Scandinavia, and chemical plants across Southeast Asia. The process is fast because we built it to be.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The PPD104 fails in predictable ways. Knowing the failure signature saves you 30–60 minutes of diagnostic time during a live outage.

Common Fault Indicators:

• Controller LED pattern: RUN off, ERR solid red — The PM8xx CPU cannot locate a valid program on the memory card. First suspect: PPD104 corruption or physical card failure.
• Control Builder M error: “Application not found” or “Memory card not recognized” — The card’s flash has degraded or the card is not seated correctly. Re-seat first; if fault persists, the card is dead.
• Intermittent controller restarts with no process fault — Early-stage flash cell degradation. The card is failing slowly. Replace before it fails completely during a critical batch.
• Post-power-outage failure to boot — Flash write was interrupted mid-cycle. The program partition is corrupted. A new PPD104 loaded with a backup image is the only recovery path.

Replacement Procedure (Field-Verified Steps):

1. Back up first. If the controller is still partially functional, use Control Builder M to upload the current application to your engineering workstation before touching hardware. Even a partial backup is better than nothing.
2. Power down the controller rack. The PPD104 is not hot-swappable. Attempting a live swap risks corrupting the CPU’s internal state and can damage the card slot contacts.
3. Remove the old PPD104. The card slides out from the front of the PM8xx module. Note the orientation — the card is keyed but field engineers have forced it backwards under pressure. Don’t.
4. Inspect the slot contacts. Use compressed air to clear any debris. Bent or oxidized contacts on the CPU module are a secondary failure point that will kill a new card within weeks.
5. Insert the new PPD104. Firm, even pressure until the card clicks into the retention latch. A half-seated card will produce intermittent read errors that are extremely difficult to diagnose.
6. Power up and observe the boot sequence. The PM8xx will attempt to read the program from the PPD104. If the card is blank (new replacement), the controller will enter “No Application” state — this is normal. Download your application via Control Builder M.
7. Firmware compatibility check. Confirm your Control Builder M version matches the firmware on the PM8xx CPU. A mismatch between engineering tool version and controller firmware can prevent successful program download even with a healthy new PPD104.
8. Verify I/O module addressing. After a cold start with a new memory card, confirm that all S800 I/O modules have re-established their ModuleBus addresses. In some configurations, modules may require manual address confirmation via the controller’s local HMI or Control Builder M.

Configuration Notes:

• The PPD104 stores the application program but not the controller’s IP address or network configuration — these are held in the PM8xx CPU’s internal NVRAM. After replacement, network settings should be intact.
• If your site uses redundant AC800M controllers (PM8xx pairs), replace one card at a time and verify switchover behavior before touching the redundant unit.
• For PM891 users: the PM891 supports a larger application size than PM861/PM864. Confirm your PPD104 variant is rated for PM891 if you are running large applications with extensive function block libraries.

Reliability in Harsh Conditions

The AC800M platform — and the PPD104 by extension — was engineered for environments where consumer-grade electronics would fail within weeks. ABB designed this module to operate continuously in the conditions that define heavy industry.

Thermal cycling is the primary killer of industrial electronics. The PPD104’s flash memory and PCB substrate are specified to withstand the daily temperature swings common in outdoor substations and poorly climate-controlled control rooms — from cold morning startups to afternoon heat buildup in enclosed cabinets. The module’s conformal coating provides a barrier against humidity ingress, a critical factor in coastal refineries, offshore platforms, and tropical process plants where relative humidity regularly exceeds 80%.

Vibration is the second major stress factor. Installations near large rotating machinery — compressors, turbines, centrifuges — subject control panels to continuous low-frequency vibration. The PPD104’s card retention mechanism and PCB component mounting are qualified to IEC 60068-2-6 vibration standards, ensuring the card maintains electrical contact under sustained mechanical stress. Field experience confirms that PPD104 cards installed in compressor station control panels routinely achieve 8–12 year service lives without intervention.

Electromagnetic interference from variable frequency drives, large motor starters, and high-voltage switching equipment is a constant threat to memory integrity. The PPD104 operates within the AC800M’s shielded card cage, which provides substantial EMI attenuation. The module’s flash memory controller includes error correction coding (ECC) that detects and corrects single-bit errors caused by transient EMI events — a feature that prevents silent data corruption in electrically noisy environments.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible connection to DHL Express and FedEx International Priority networks for shipments to Europe, the Middle East, Southeast Asia, and the Americas.

Standard Dispatch Process:

• Order confirmed before 14:00 CST: Same-day dispatch on DHL Express or FedEx International Priority.
• Order confirmed after 14:00 CST: Next business day dispatch, with tracking number issued within 2 hours of pickup.
• Packaging: Each PPD104 is individually wrapped in anti-static ESD shielding bag, cushioned with closed-cell foam, and packed in a rigid outer carton rated for international air freight handling. No bubble wrap shortcuts.
• Documentation: Commercial invoice, packing list, and certificate of origin provided as standard. CITES, dual-use, or end-user certificates available upon request for regulated destinations.
• Typical Transit Times: Europe 2–4 business days | Middle East 2–3 business days | Southeast Asia 1–2 business days | North America 3–5 business days | Australia 3–4 business days.
• Customs: We declare goods accurately and provide HS code documentation. We do not under-declare values. This protects your shipment from customs holds that would defeat the entire purpose of express shipping.
• Insurance: Full declared value insurance included on all express shipments. If DHL or FedEx damages the unit in transit, we replace it — no argument, no delay.

For critical shutdowns where every hour counts, contact us directly on WhatsApp for real-time coordination on dispatch timing and tracking.
