ABB PSPCB-500C/S Soft Starter Control Board

ABB PSPCB-500C/S 1SFA899020R2500 — Stop the Clock on Your Downtime

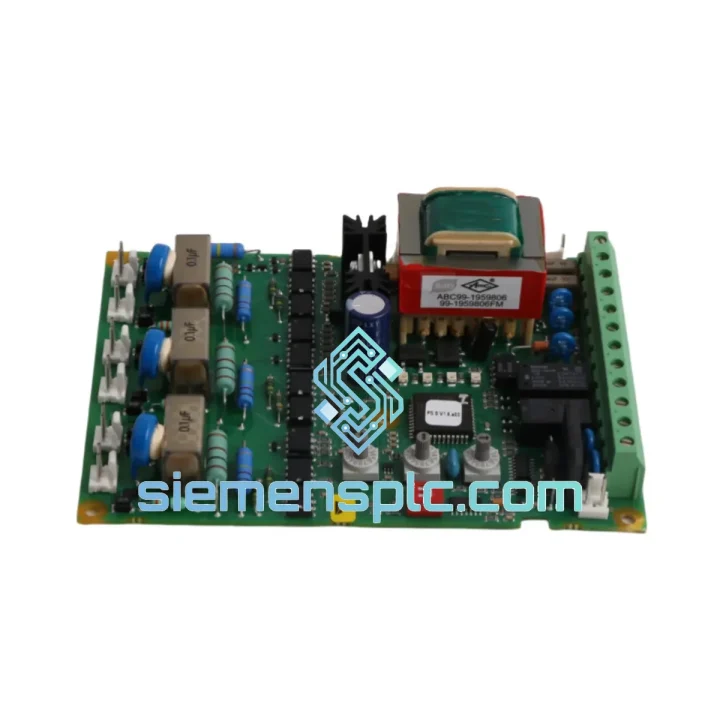

Every hour a PSS-500 soft starter sits dead on the floor, your production line is bleeding money. The ABB PSPCB-500C/S (OEM part number 1SFA899020R2500) is the main control and thyristor firing circuit board for the entire ABB PSS-500 soft starter family. When this board fails — and it will give you clear fault codes before it does — the fastest path back to production is a verified OEM replacement, not a repair gamble. We stock this board in Xiamen, China, and ship globally via DHL Express and FedEx International Priority. Most destinations receive within 3–5 business days from order confirmation.

This is not a compatible substitute or a third-party clone. Every unit we dispatch is genuine ABB, sourced through verified industrial distribution channels, tested before packaging, and shipped with full export documentation. If your plant is down, this page is where you stop reading and start ordering.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The PSPCB-500C/S fails in predictable patterns. Before you pull the board, confirm the fault is actually on the control side and not a thyristor or CT issue. Here is a field-tested diagnostic sequence:

Common Fault Codes Pointing to PSPCB-500C/S Failure:

• F1 / Overcurrent at start — If the motor nameplate and CT ratio are correctly set but F1 fires within the first 200 ms of every start attempt, the current-sensing ADC on the control board is likely saturated or damaged. Swap the board before replacing the thyristor stack.
• F3 / Phase loss detected with all three phases confirmed live — The zero-crossing detection circuit on the board has lost one channel. Verify L1/L2/L3 input voltage at the board connector first; if all three are present and balanced, the fault is internal to the PSPCB-500C/S.
• F7 / Communication timeout — If Modbus polling was stable and suddenly drops with no wiring change, the RS-485 transceiver IC on the board has failed. This is a board-level fault; no field repair is practical.
• No display, no relay output, 24 V DC confirmed at X1 connector — The onboard SMPS has failed. Replace the board.

Replacement Procedure — Key Steps:

1. Isolate and lock out the soft starter. Verify zero voltage on L1, L2, L3, and T1, T2, T3 with a calibrated meter. Capacitors on the board hold charge — wait 3 minutes after isolation before touching the PCB.
2. Photograph the existing DIP-switch positions on SW1 and SW2 before removal. These encode motor FLA range, ramp time, and current limit setpoint. The replacement board ships with all switches in the factory default (OFF) position — you must replicate your original settings exactly.
3. Note the firmware version label on the existing board (sticker near the microcontroller). If your PSS-500 unit was manufactured before 2010, confirm with ABB or our team that the current board revision is backward-compatible with your power stack. In most cases it is, but high-current frames (630 A and above) had a gate drive timing revision in 2011.
4. Disconnect all ribbon cables and screw-terminal connectors. The X3 ribbon cable (thyristor gate signals) is keyed — it cannot be inserted incorrectly, but inspect the ZIF socket on the new board for bent contacts before seating.
5. After installation, perform a no-load test start before reconnecting the motor. Monitor the display for fault codes during the first 5 seconds of the ramp. A clean start with no faults confirms the board is functioning correctly.
6. Re-enter all parameter settings via the keypad or Modbus if your site uses SCADA-based configuration. The replacement board does not retain the previous unit’s parameter memory.

Reliability in Harsh Conditions

The PSPCB-500C/S is designed to operate inside soft starter enclosures that routinely see vibration from adjacent machinery, thermal cycling from daily start/stop sequences, and humidity ingress in coastal or washdown environments. ABB’s design choices on this board reflect those realities:

• Conformal coating (IPC-CC-830B acrylic) — applied to the full PCB surface, this coating prevents condensation-induced tracking between high-voltage traces and protects against corrosive atmospheres found in chemical plants and coastal installations.
• Industrial-grade electrolytic capacitors — rated for 105 °C and 5,000-hour service life at maximum operating temperature. Standard consumer-grade capacitors at 85 °C would fail within 18 months in the same thermal environment.
• Vibration tolerance — the board is mechanically secured with four M3 standoffs and a locking connector system. ABB qualifies this assembly to IEC 60068-2-6 (sinusoidal vibration, 10–150 Hz, 1 g) and IEC 60068-2-27 (shock, 15 g, 11 ms half-sine).
• EMC shielding — the gate firing circuit uses optocoupler isolation between the low-voltage control logic and the thyristor gate signals, providing 4 kV isolation and preventing high-frequency switching noise from corrupting the microcontroller.
• Thermal management — the onboard SMPS uses a synchronous rectifier topology that reduces heat dissipation by approximately 40 % compared to linear regulators, keeping the board’s self-heating within safe limits even at 60 °C ambient.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the country’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily DHL and FedEx pickup schedules. This is how your order moves from our shelf to your plant floor:

• Order confirmation — once payment or PO is confirmed, the unit is pulled from stock, tested, and packaged within 4 business hours.
• Export documentation — we prepare the commercial invoice, packing list, and certificate of origin in-house. HS code 8538.90 is pre-declared. For customers in the EU, we can provide EUR.1 movement certificates upon request.
• Carrier selection — DHL Express Worldwide is our default for most destinations (Europe, North America, Southeast Asia). FedEx International Priority is available as an alternative. Both services provide door-to-door tracking from pickup to delivery.
• Transit times (typical) — Europe: 3–5 business days. North America: 4–6 business days. Southeast Asia: 2–3 business days. Middle East: 4–7 business days. Australia/NZ: 4–6 business days.
• Packaging — the board ships in an ESD-shielded bag inside a rigid foam-lined carton. The outer carton is rated for 1.2 m drop per ISTA 1A. No damage from normal courier handling.
• Customs clearance — we have shipped to over 60 countries. Our documentation package is structured to clear customs without delay in most jurisdictions. For countries with import licensing requirements (e.g., certain Middle East markets), contact us before ordering so we can advise on documentation.
