ABB RF616 3BSE010997R1 — 10-Slot Passive Backplane for Advant OCS / MOD 300 Distributed Control Systems

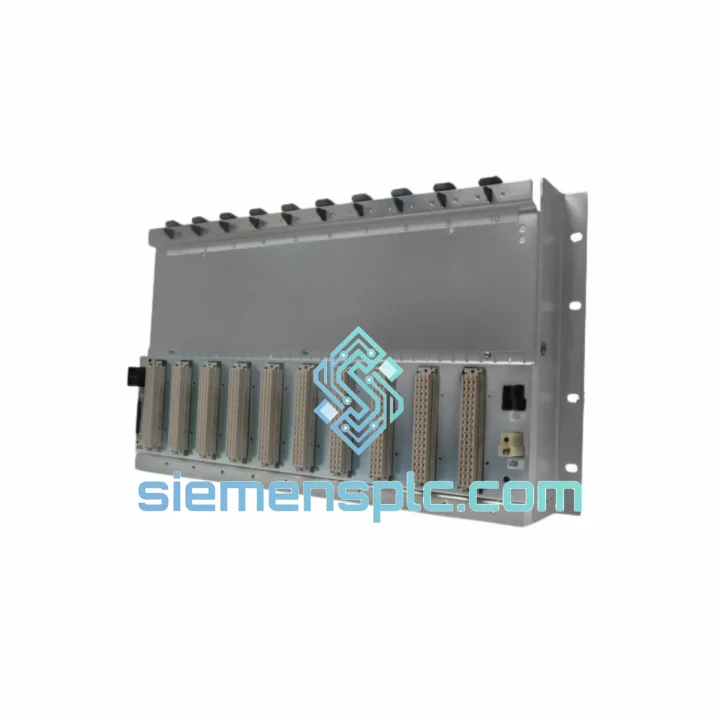

The ABB RF616 (factory part number 3BSE010997R1) is a 10-slot passive base back panel engineered as the primary electrical and mechanical interconnect spine within ABB’s Advant OCS and MOD 300 distributed control system (DCS) rack assemblies. In a DCS architecture, the backplane is not a passive accessory — it is the deterministic communication substrate through which every processor module, I/O card, and power supply exchanges data and operating power. The RF616 defines the physical slot topology, the S-bus backplane signal routing, and the module-to-module power distribution rail geometry for the entire rack assembly. Without a structurally and electrically intact back panel, no module in the rack can operate within specification.

ABB’s Advant OCS platform, introduced in the late 1980s and continuously deployed through the 2000s, remains active at thousands of industrial sites globally — including power generation facilities, petrochemical complexes, pulp and paper mills, and pharmaceutical manufacturing plants. The RF616 back panel is one of the highest-demand MRO (maintenance, repair, and operations) spare components within this installed base, precisely because backplane degradation — caused by connector oxidation, thermal cycling fatigue, or physical damage during module extraction — is a primary cause of rack-level faults in aging DCS cabinets.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The RF616 operates as a purely passive backplane — it contains no active switching logic, no firmware, and no programmable elements. This architectural decision is deliberate and carries significant reliability implications for long-lifecycle DCS deployments.

S-Bus Backplane Signal Topology: The internal S-bus traces on the RF616 implement a parallel multi-drop bus architecture. Each of the 10 slot connectors presents identical bus access to the S-bus address, data, and control lines. The processor module inserted into the designated CPU slot acts as the bus master; all I/O and communication modules operate as bus slaves. Bus arbitration is handled entirely in the processor module’s firmware — the backplane itself imposes no arbitration logic, which eliminates a class of active-component failure modes at the rack level.

Power Distribution Rail Geometry: The RF616 routes +5 VDC logic power and ±15 VDC analog supply rails as dedicated copper planes across the backplane PCB. These planes are isolated from the S-bus signal traces by ground plane layers, providing inherent high-frequency decoupling between the power distribution network and the data bus. Each slot connector includes dedicated power pins with current-carrying capacity sized for the maximum module draw specified in ABB’s Advant module catalog.

EMC Design — Passive Shielding and Ground Return: The backplane’s ground plane architecture provides a low-impedance return path for all module-level decoupling capacitors, suppressing common-mode noise injection onto the S-bus lines. The rack frame (RF627/RF628) mechanically bonds to the backplane’s chassis ground points, creating a Faraday cage effect around the entire rack assembly. This design meets EN 61000-4-4 (electrical fast transient / burst) and EN 61000-4-5 (surge) immunity levels without requiring active filtering components on the backplane itself.

Connector Durability and Contact Integrity: The 96-pin DIN 41612 style connectors used at each slot position are rated for a minimum of 500 insertion/extraction cycles per IEC 60603-2. Gold-plated contact surfaces on the backplane side maintain low contact resistance (<10 mΩ per pin) across the rated temperature range, which is critical for maintaining signal integrity on the S-bus at the 8 MHz clock rates used by Advant OCS processor modules.

Thermal Management: The passive backplane design generates negligible self-heating. Thermal load in the rack is dominated by the active modules. The RF616’s PCB substrate and connector materials are rated to withstand continuous operation at 55 °C ambient without derating, consistent with the thermal envelope of standard industrial control cabinet designs.

System Integration Benefits

• Zero-modification drop-in replacement: The RF616 3BSE010997R1 is a direct mechanical and electrical substitute for any worn or damaged RF616 back panel in an existing Advant OCS or MOD 300 rack. No re-wiring, no firmware changes, and no re-engineering of the cabinet layout are required.
• Deterministic bus latency preservation: Because the backplane imposes no active arbitration logic, S-bus cycle times remain fully determined by the processor module’s scan rate configuration. Replacing a degraded backplane with a new RF616 restores the original bus timing characteristics without requiring controller re-tuning.
• Diagnostic transparency: A healthy passive backplane eliminates the backplane itself as a diagnostic variable. When a new RF616 is installed, any remaining communication faults can be attributed unambiguously to module-level or wiring-level causes, accelerating root-cause analysis during commissioning or fault investigation.
• Full 10-slot I/O density: The 10-slot configuration maximizes module population per rack unit. In space-constrained control rooms, this reduces the number of rack frames required for a given I/O count, lowering cabinet footprint and inter-rack wiring complexity.
• Mixed-module compatibility: The RF616 supports simultaneous population with digital I/O (DSDP, DSDI, DSDO), analog I/O (DSAI, DSAO), communication (DSBC), and processor (DSQC) modules within a single rack, enabling high-density mixed-function rack configurations without bus compatibility constraints.
• Long-term platform continuity: ABB Advant OCS systems carry extended lifecycle support commitments at many sites. Sourcing a genuine RF616 back panel preserves the original system architecture, avoiding the engineering cost and validation burden of platform migration.
• Reduced unplanned downtime risk: Holding a verified RF616 spare in the MRO inventory eliminates the lead-time risk associated with backplane failure. Backplane faults typically cause full rack outages; a pre-qualified spare enables same-shift restoration of rack functionality.
• Compatibility with SIL-rated loop architectures: When the Advant OCS rack is integrated into a safety instrumented system (SIS) per IEC 61511, the passive backplane’s deterministic behavior and absence of firmware simplify the safety case documentation. The RF616 introduces no programmable element that requires independent safety assessment.
