ABB SAFT110POW: Regulated Power Distribution Architecture for SAFT 110 Drive Control Systems

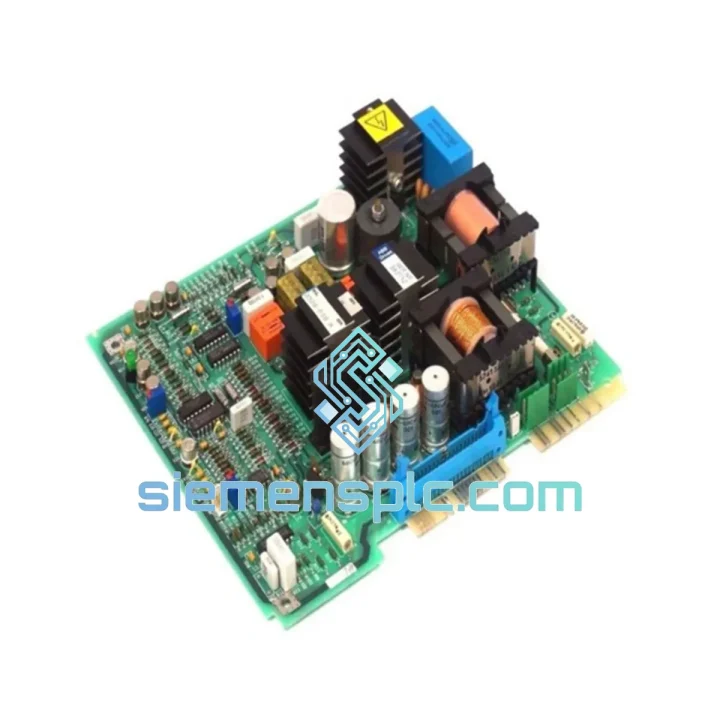

The ABB SAFT110POW is the dedicated power supply module within the SAFT 110 drive control platform, responsible for converting and distributing regulated DC voltages to all active control boards in the drive stack. In a SAFT 110 system, the control section is partitioned into discrete functional cards — the control board (SAFT110CON), pulse amplifier card (SAFT110PAC), measurement card (SAFT110MEC), and I/O interface card (SAFT110IOC) — each with independent power rail requirements. The SAFT110POW serves as the common power bus for this card cage, generating multiple isolated DC outputs from a single AC or DC input source, ensuring that transient disturbances on one rail do not propagate to adjacent logic circuits.

In continuous-process industries — pulp and paper, cement, metals, and marine propulsion — drive control systems operate in environments with significant conducted and radiated electromagnetic interference. The SAFT110POW addresses this through a multi-stage LC filter network on its input stage, combined with transformer-based galvanic isolation between the primary supply and each secondary output rail. This architecture prevents ground loop currents from coupling into the low-voltage logic domain, a failure mode that accounts for a disproportionate share of unexplained control board faults in legacy DC drive installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SAFT110POW operates on a forward-converter topology, selected by ABB’s drive engineering team for its combination of high efficiency at partial load and inherent short-circuit current limiting — a critical property when powering mixed analog/digital control boards that present highly variable impedance profiles during startup sequencing.

Input EMC Filter Stage: A two-stage common-mode and differential-mode LC filter precedes the primary switching stage. Common-mode chokes suppress high-frequency noise injected from the drive’s power section via the shared DC bus, while X- and Y-class capacitors provide a low-impedance path for differential noise to the chassis ground. This filter stage is rated to attenuate conducted emissions above 150 kHz by a minimum of 40 dB, consistent with CISPR 11 Class A industrial limits.

Galvanic Isolation Barrier: The high-frequency transformer provides reinforced insulation between the primary (drive bus) domain and the secondary (control logic) domain. This isolation barrier eliminates the primary failure mechanism in non-isolated power supply designs: ground potential differences between the drive’s power ground and the control system’s signal ground, which in industrial installations can reach several volts under fault conditions and corrupt analog measurement signals or trigger spurious digital inputs.

Secondary Regulation and Cross-Regulation: Each secondary output rail employs an independent post-regulator stage — either a linear pass element for low-noise analog supply rails or a synchronous buck stage for higher-current digital logic rails. This architecture maintains output voltage accuracy within ±2% across the full load range of each rail, independent of load changes on adjacent rails. In practice, this means that a transient load step on the digital logic rail (caused by a burst of backplane communication activity) does not induce a measurable disturbance on the ±15 V analog measurement rail supplying the SAFT110MEC card’s ADC reference.

Protection Logic: The SAFT110POW integrates overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown on each output rail. OCP is implemented as a cycle-by-cycle current limit in the primary switching stage, preventing transformer saturation under output short-circuit conditions. OVP is implemented via a dedicated comparator that drives the primary switch gate off within one switching cycle of a detected overvoltage event, protecting downstream ICs from destructive overvoltage exposure.

System Integration Benefits

• Deterministic power sequencing: The SAFT110POW’s soft-start circuit ramps output voltages in a defined sequence, preventing inrush current spikes that could trip upstream protection devices during drive restart after a fault clearance.
• Diagnostic transparency: Power-good signals on each output rail are routed to the SAFT110CON control board, enabling the drive’s firmware to distinguish between a control power fault and a process fault — reducing mean time to diagnosis in field troubleshooting scenarios.
• Backplane bus integrity: By providing a locally regulated, low-impedance supply at the card cage level, the SAFT110POW eliminates the voltage drop errors that would result from distributing unregulated power across the backplane’s copper traces, maintaining signal integrity for high-speed parallel bus communication between cards.
• Thermal derating headroom: The module is rated to full output power at 55 °C ambient, providing a 10–15 °C thermal margin above the typical drive cabinet operating temperature in most industrial installations, extending component service life.
• Drop-in mechanical compatibility: The SAFT110POW conforms to the SAFT 110 card cage mechanical envelope and connector pinout, requiring no hardware modification for replacement — a critical factor in minimizing planned maintenance downtime windows.
• Isolation-verified replacement: Each unit supplied by siemensplc.com is bench-tested for isolation resistance (>100 MΩ at 500 V DC, primary-to-secondary) prior to shipment, confirming the integrity of the galvanic isolation barrier before installation.
• Reduced common-cause failure risk: The independent per-rail protection architecture ensures that a fault on one output rail (e.g., a shorted decoupling capacitor on the SAFT110IOC card) does not collapse the remaining rails, allowing the drive’s control system to execute a controlled shutdown and log a diagnostic event rather than experiencing an uncontrolled power loss.
• Long-term supply chain availability: siemensplc.com maintains verified stock of SAFT110POW modules sourced from traceable OEM and authorized surplus channels, providing a reliable procurement path for maintenance teams managing aging SAFT 110 drive fleets where OEM direct supply has been discontinued.
