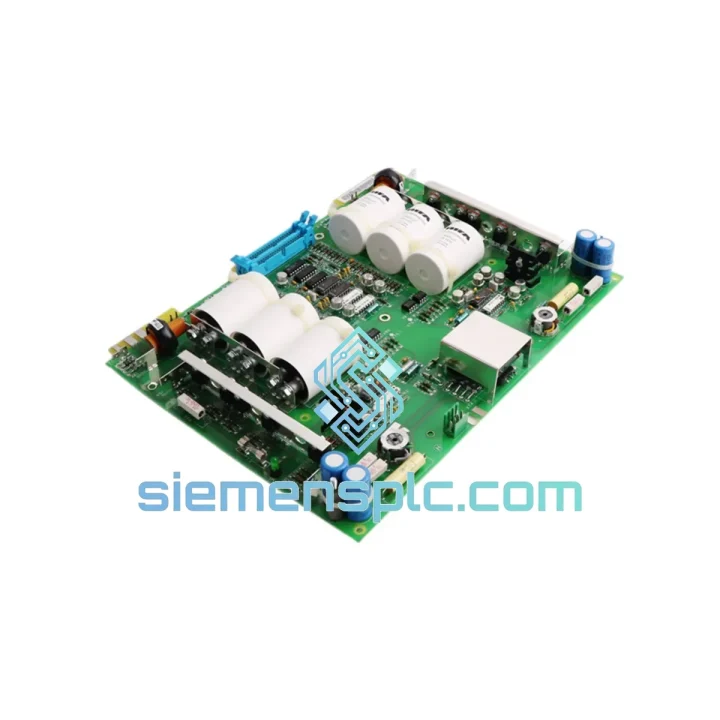

ABB SAFT123PAC Amplifier Pulse Board

ABB SAFT123PAC: Stop the Clock on Your DC Drive Downtime — Ship Today

Your DCS 600 or DRIVET drive just tripped. Speed feedback is gone. The line is cold. Every minute costs real money — and the SAFT123PAC is the single board standing between you and full production. We stock it. We ship it. From Xiamen to your plant floor via DHL or FedEx, typically within 24 hours of order confirmation. No broker delays, no minimum order, no runaround.

This is not a generic listing. The ABB SAFT123PAC is a dedicated amplifier pulse board that conditions incremental encoder and tachometer signals for the closed-loop speed regulation chain inside ABB’s DC drive platforms. When it fails, the drive loses velocity feedback entirely — triggering overcurrent trips, runaway faults, or a hard shutdown. There is no workaround. You need the board.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm the SAFT123PAC is the failed component:

• Drive displays fault codes F507 (Speed feedback loss), F508 (Encoder signal error), or F516 (Tachometer signal fault) — these point directly at the feedback signal chain where the SAFT123PAC sits.
• Scope the pulse output at the board’s output connector while manually rotating the motor shaft. Zero signal or erratic pulses with the encoder confirmed good = board failure.
• Check for burnt smell, discolored components, or cracked solder joints on the board — common after a motor insulation failure sends voltage spikes back through the feedback cable.

Replacement procedure — field checklist:

1. Isolate and lock out the drive cabinet. Confirm DC bus has discharged below 50 V before touching any boards (use a calibrated meter — not the panel indicator).
2. Document connector positions before removal. Photograph the existing board’s wiring harness orientation. The SAFT123PAC has multiple connectors; incorrect re-seating causes immediate re-fault.
3. Check DIP switch settings on the old board before discarding it. The SAFT123PAC carries configuration switches for encoder pulse count (PPR selection) and signal voltage level (HTL vs TTL). Your replacement must match exactly — refer to ABB DCS 600 Hardware Manual, Section 5.3.
4. Inspect the feedback cable for shield continuity and insulation damage. A shorted or open shield is the most common root cause of SAFT123PAC failures — replacing the board without fixing the cable results in repeat failure within days.
5. Seat the board firmly into the rack connector. A partially seated board causes intermittent faults that are extremely difficult to diagnose remotely.
6. Power up in open-loop mode first if your drive firmware supports it. Verify the pulse signal is present on the diagnostic display before closing the speed loop.
7. Firmware note: The SAFT123PAC is hardware-only — no firmware resides on the board itself. However, confirm your SDCS-CON control board firmware version is compatible with your encoder configuration after replacement. Mismatched firmware can misinterpret the conditioned signal.

Common misdiagnosis to avoid: Engineers frequently replace the SDCS-CON control board when the actual failure is the SAFT123PAC. The SAFT123PAC is a fraction of the cost. Always eliminate the signal conditioning board first before condemning the main control board.

Reliability in Harsh Conditions

The SAFT123PAC was designed for the environments where DC drives actually operate — not a clean lab. ABB engineered this board to function inside steel mill motor control centers, paper machine drive rooms, and mining hoist panels where ambient conditions are punishing by any standard.

Vibration: The board’s PCB layout and component selection account for the mechanical vibration transmitted through drive cabinet structures in heavy industrial settings. Conformal coating on production units provides additional protection against micro-vibration-induced solder joint fatigue.

Thermal cycling: Drive cabinets experience significant thermal cycling between cold startups and full-load operation. The SAFT123PAC’s components are rated for the 0–55°C ambient range specified for DCS 600 installations, with derating curves documented in ABB’s environmental specifications.

EMI immunity: Pulse signal boards are inherently vulnerable to electromagnetic interference from the thyristor firing circuits and motor cables running in the same cabinet. ABB’s design incorporates differential signal handling and ground plane architecture to reject common-mode noise — a critical requirement in high-power DC drive environments where dV/dt events are routine.

Humidity and contamination: Rated to 5–95% RH non-condensing. For installations in coastal or high-humidity environments, ABB recommends verifying cabinet IP rating and internal climate control. Units supplied by us are stored in climate-controlled conditions and shipped in sealed ESD packaging.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. This is not a drop-ship arrangement. Stock is physically on-hand and ready for same-day or next-business-day dispatch upon payment confirmation.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–4 business days via DHL Express
• Europe (Germany, UK, Netherlands, Poland): 3–5 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx
• Australia / New Zealand: 4–6 business days via DHL
• South America (Brazil, Chile, Colombia): 5–8 business days — customs clearance timelines vary

Packaging: All boards are packed in anti-static ESD bags, cushioned with foam inserts, and placed in double-wall corrugated cartons. Fragile and electronics handling labels are applied. We have shipped SAFT123PAC units to over 30 countries without transit damage claims.

Documentation provided: Commercial invoice, packing list, and certificate of conformity are included with every shipment. HS code declaration for customs clearance is prepared based on destination country requirements. For regulated procurement environments, sourcing declarations are available upon request.

Urgent orders: If your plant is down and you need the fastest possible delivery, contact us directly via WhatsApp before placing the order. We can confirm stock, prepare the shipment, and coordinate same-day pickup with the courier — cutting 12–24 hours off the standard process.
