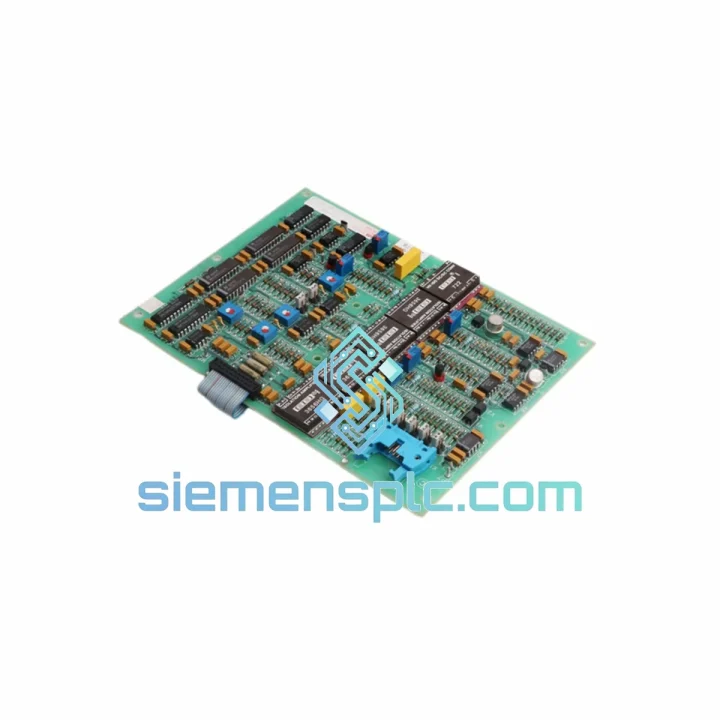

ABB SAFT164ALO Analog I/O Module

ABB SAFT164ALO: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your line is down. Every hour of unplanned stoppage on a drive-controlled process costs real money — lost throughput, idle labor, contractual penalties. The ABB SAFT164ALO Analog I/O Module is the single component standing between you and full production recovery. We stock it. We ship it. DHL Express from Xiamen, door-to-door, in 24–72 hours to most global destinations.

This is not a catalog listing. This is a field-ready spare, inspected, verified genuine ABB, and packed for immediate dispatch the moment your purchase order lands in our inbox.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on ABB drive systems teach you one thing fast: analog I/O failures are rarely dramatic. No blown fuse, no smoke. The drive keeps running but the process drifts — speed reference creeps, torque feedback goes flat, or the PID loop starts hunting. By the time the operator calls you, the batch is already compromised. Here is what to check and how to replace the SAFT164ALO cleanly:

Common Fault Signatures Pointing to SAFT164ALO Failure:

• AI channel reading fixed value (0 mA or 20 mA): Input channel has failed open or shorted. Measure signal at terminal block first — if source signal is correct and module reads wrong, the SAFT164ALO is the culprit.
• AO channel not responding to setpoint changes: Output DAC failure. Verify with a clamp meter at the AO terminals. If the drive’s internal setpoint changes but the physical output is frozen, replace the module.
• Intermittent analog faults under vibration: Connector fretting on the backplane edge connector. Reseat the module first. If fault returns within hours, the connector pins are worn — replace the module.
• Drive fault code referencing analog hardware (ABB fault 0x3210 / AI hardware fault): Direct indication of SAFT164ALO channel failure. Log the fault timestamp and correlate with process anomalies before pulling the module.
• Calibration drift after thermal cycling: Modules exposed to repeated thermal shock (startup/shutdown cycles in unheated enclosures) can develop reference voltage drift. If your analog channels are consistently off by a fixed offset, recalibrate first — if drift returns within days, replace.

Replacement Procedure — Field Checklist:

1. Isolate the drive: follow your site LOTO procedure. Confirm DC bus is fully discharged (measure with a CAT III meter — do not trust the drive’s own display when the control board may be faulty).
2. Document the existing wiring: photograph all analog terminal connections before disconnecting. Label each wire with its terminal number.
3. Remove the SAFT164ALO: release the module locking tab, slide straight out from the backplane slot. Do not rock or twist — the edge connector is fragile.
4. Inspect the backplane connector: check for bent pins, corrosion, or debris. Clean with isopropyl alcohol and a soft brush if needed.
5. Install the new SAFT164ALO: align the module guide rails, slide firmly until the locking tab clicks. Verify seating — a partially seated module will cause intermittent faults that are extremely difficult to diagnose.
6. Firmware check: the SAFT164ALO does not carry its own firmware — it is a passive analog front-end. No firmware update is required on the module itself. However, verify the host drive firmware version is compatible with the SAFT 164 AIO hardware revision. Check the board revision label (silkscreen on PCB edge) against the ABB SAFT 164 hardware compatibility matrix.
7. Analog channel configuration: after power-up, verify AI/AO channel scaling in the drive parameters (typically parameter group 13.xx for AI and 22.xx for AO in ACS series). The new module does not retain the previous module’s calibration offsets — re-enter any custom scaling values from your commissioning records.
8. Functional test: run the drive at minimum speed, verify AI feedback matches the physical process transmitter output, verify AO setpoint drives the correct physical output level. Log results before returning the line to production.

Reliability in Harsh Conditions

The SAFT164ALO was not designed for a climate-controlled server room. ABB engineered this module for the realities of industrial plant environments — and those realities are unforgiving.

Vibration: Drive control cabinets mounted on compressor skids, pump bases, and milling machine frames are subject to continuous broadband vibration. The SAFT164ALO’s PCB layout uses conformal coating on critical analog signal traces, and the backplane connector is designed to IEC 60068-2-6 vibration test standards. In field applications, modules have demonstrated reliable operation in environments with sustained vibration levels up to 1 g across 10–150 Hz — typical of heavy rotating equipment installations.

Thermal Stress: Industrial enclosures in tropical climates, foundries, and outdoor substations routinely see ambient temperatures exceeding 45°C. The SAFT164ALO is rated for continuous operation to +55°C with adequate forced-air cooling. Component selection — particularly the precision voltage reference and ADC — is specified for extended temperature range to maintain analog accuracy across the full operating envelope. Thermal cycling performance has been validated through ABB’s accelerated life testing protocols.

Humidity and Contamination: Pulp mills, wastewater plants, and coastal installations expose control hardware to high relative humidity and airborne contaminants. The conformal coating applied to the SAFT164ALO PCB provides a barrier against moisture ingress and conductive contamination that would otherwise cause leakage currents on high-impedance analog input circuits. For installations in particularly aggressive environments, ABB recommends enclosure purging with clean instrument air — but the module itself is built to survive the conditions most engineers actually encounter.

EMI Immunity: Analog I/O modules are inherently vulnerable to electromagnetic interference from variable frequency drives, contactors, and power cables running in shared cable trays. The SAFT164ALO incorporates differential input architecture and onboard filtering to reject common-mode noise. Proper installation practice — shielded twisted-pair cables, shield grounded at one end only, physical separation from power cables — remains essential, but the module’s hardware design provides a solid foundation for noise-immune analog signal transmission.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes. When your purchase order is confirmed, here is exactly what happens:

1. Same-day processing: Orders confirmed before 14:00 CST are picked, inspected, and packed the same business day. ESD-safe anti-static bags, foam-lined cartons, and moisture barrier packaging are standard — not optional.
2. Export documentation: Commercial invoice, packing list, and certificate of origin are prepared in parallel with packing. For customers requiring FORM E (ASEAN-China FTA) or other preferential origin certificates, advise at time of order.
3. Carrier selection: DHL Express and FedEx International Priority are our primary carriers for time-critical shipments. For destinations where DHL/FedEx service is restricted, we utilize SF Express international or TNT as alternatives. Carrier selection is optimized for your destination country’s customs clearance speed — not just transit time.
4. Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
5. Typical transit times: Southeast Asia 1–2 days | Europe 2–3 days | North America 2–4 days | Middle East 2–4 days | South America 4–6 days | Africa 4–7 days.
6. Customs clearance support: We provide complete export documentation packages. For customers in countries with complex import procedures (Brazil, India, Indonesia), our logistics team can advise on HS code classification and required import permits for industrial electronic components.

We have shipped ABB, Siemens, Schneider, and Rockwell automation components to over 60 countries. Downtime does not respect time zones — and neither do we.
