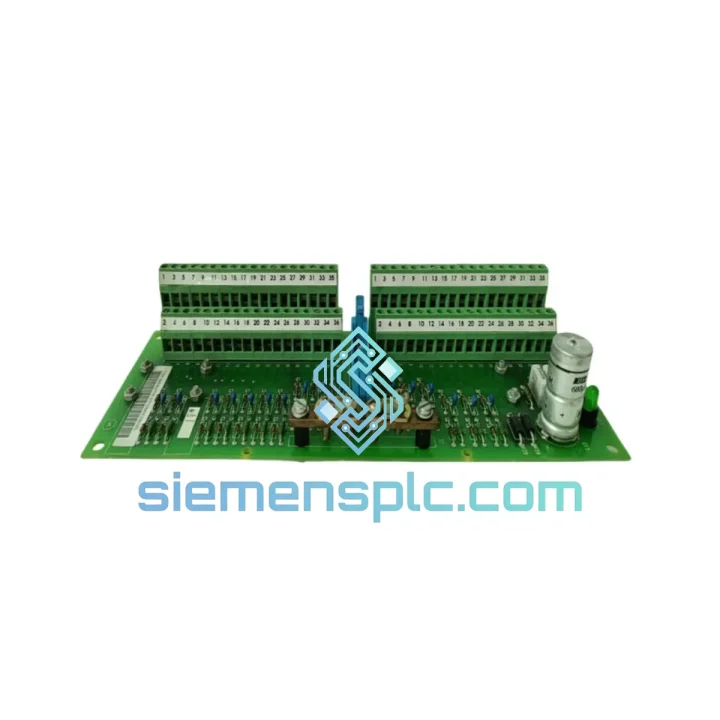

ABB SCYC55830 58063282A DCS Control Board – AC800M Series

ABB SCYC55830 58063282A – Backplane-Integrated Control Board for AC800M Distributed Control Architecture

The ABB SCYC55830 (PCB assembly reference 58063282A) is a functional control board engineered for deployment within ABB’s AC800M Distributed Control System (DCS) platform. The AC800M series is a field-proven, modular controller architecture widely adopted across continuous process industries including power generation, oil & gas refining, pulp and paper, and specialty chemical manufacturing. This board occupies a defined slot within the AC800M controller chassis and participates directly in the real-time control loop by handling signal conditioning, internal bus arbitration, or inter-module communication — depending on the specific chassis configuration and firmware assignment.

Unlike generic interface cards, the SCYC55830 is tightly coupled to ABB’s proprietary S100 I/O bus and CEX-Bus backplane architecture. Its physical layout and firmware handshake protocol are designed to operate within ABB’s deterministic real-time execution environment, where scan cycle jitter must remain below 1 ms for closed-loop process control. Procurement engineers replacing a failed board must match the hardware revision suffix on the 58063282A assembly number against the installed controller firmware version to ensure backward compatibility — a step our technical team verifies prior to every shipment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SCYC55830 board’s physical architecture reflects ABB’s design philosophy for high-availability process control: functional partitioning between power conditioning, signal arbitration, and communication layers is implemented at the PCB level rather than relying on shared resources. This approach isolates fault domains — a failure in one functional block does not propagate to adjacent modules on the backplane.

Backplane Bus Arbitration: The board interfaces with the AC800M’s internal CEX-Bus, a synchronous serial bus that operates at a fixed clock rate to guarantee deterministic data transfer between the CPU module and peripheral boards. The arbitration logic on the SCYC55830 ensures that bus access requests are queued and resolved within a bounded time window, preventing priority inversion scenarios that would introduce latency into the control scan cycle.

EMC Design: The PCB layout follows a multi-layer stackup with dedicated ground planes separating analog signal traces from digital switching lines. Ferrite bead filters are placed at the board’s power entry points to attenuate high-frequency conducted noise from the backplane rail. Signal lines crossing between functional zones are routed with controlled impedance and guarded by ground traces, reducing susceptibility to radiated interference in environments with variable-frequency drives (VFDs) and high-current switching equipment — common in the process industries where AC800M systems are deployed.

Thermal Management: Component placement on the SCYC55830 is optimized for convective airflow within the AC800M chassis enclosure. Heat-generating ICs are positioned along the airflow path defined by the chassis fan assembly, maintaining junction temperatures within datasheet limits at the rated 55 °C ambient. No active cooling is required at the board level, reducing mechanical failure modes in long-duration continuous operation.

Firmware Handshake Protocol: On power-up, the board executes a self-identification sequence over the backplane bus, transmitting its hardware revision code and functional capability register to the CPU module. The PM8xx controller firmware reads this register and assigns the board’s role within the I/O map. This mechanism allows the system to detect hardware revision mismatches before entering the run state, preventing silent data corruption from incompatible board substitutions.

System Integration Benefits

• Zero-Reconfiguration Replacement: The SCYC55830 uses ABB’s standard backplane connector pinout and self-identification protocol, allowing direct substitution in an existing AC800M chassis without modifying the controller application program or I/O configuration database.
• Deterministic Scan Cycle Preservation: Because the board’s bus arbitration logic operates within the CEX-Bus timing envelope, its insertion does not alter the controller’s scan cycle period — critical for PID loops and sequence-of-events (SOE) recording with sub-millisecond timestamp resolution.
• Diagnostic Transparency: The board exposes hardware status flags to the AC800M’s built-in diagnostics layer, making fault conditions visible in ABB 800xA System’s alarm and event management without requiring additional field wiring or external diagnostic hardware.
• Hot-Swap Compatibility: In AC800M chassis configurations with redundant power supplies, the SCYC55830 can be removed and reinserted without de-energizing the backplane, reducing planned maintenance windows and eliminating the need for full system shutdown during board replacement.
• Long-Term Platform Continuity: ABB’s AC800M platform carries a documented 10–20 year operational lifecycle commitment. Maintaining verified spare boards such as the SCYC55830 in the plant’s critical spare inventory directly supports this lifecycle strategy without requiring controller migration projects.
• Broad Supervisory Layer Compatibility: The board operates transparently under ABB 800xA, Freelance, and Symphony Plus supervisory control layers, requiring no driver updates or middleware changes when the supervisory software is upgraded independently of the controller hardware.
• Reduced Mean Time to Repair (MTTR): Having a pre-verified, revision-matched SCYC55830 board available on-site reduces unplanned downtime from a potential multi-week sourcing delay to a sub-hour board swap — a measurable improvement in plant availability KPIs.
• Supply Chain Risk Mitigation: As ABB transitions product lines, certain AC800M board variants enter limited-availability status. Securing verified stock now protects against future procurement lead times extending to 12–26 weeks for obsolete or allocated components.

Quality Assurance & Global Logistics

Every SCYC55830 unit processed through our facility undergoes a structured incoming inspection protocol before it is offered for sale. Visual inspection covers PCB surface condition, component seating integrity, solder joint quality, and silkscreen legibility of the 58063282A assembly number and revision suffix. For refurbished units, a functional power-on test is performed with the board installed in a reference AC800M chassis, confirming successful self-identification and bus communication with the CPU module.

Anti-counterfeit verification compares component date codes, PCB layer stackup markings, and ABB-specific silkscreen fonts against authenticated reference boards. Units that do not pass all verification checkpoints are quarantined and not offered for sale under any condition category.

Shipping is handled from our warehouse in Xiamen, China, with export documentation prepared in compliance with Chinese customs regulations and destination-country import requirements. Standard dispatch carriers include DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. All shipments include full tracking, commercial invoice, packing list, and — where required — a certificate of origin. Anti-static packaging per IEC 61340-5-1 is used for all board-level components. Expedited same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

A 12-month warranty applies to all new units from the date of shipment. Warranty claims are processed with a replacement-first policy: a replacement unit is dispatched before the defective unit is returned, minimizing plant downtime exposure. Technical support for installation verification and commissioning queries is available via email and WhatsApp throughout the warranty period.
