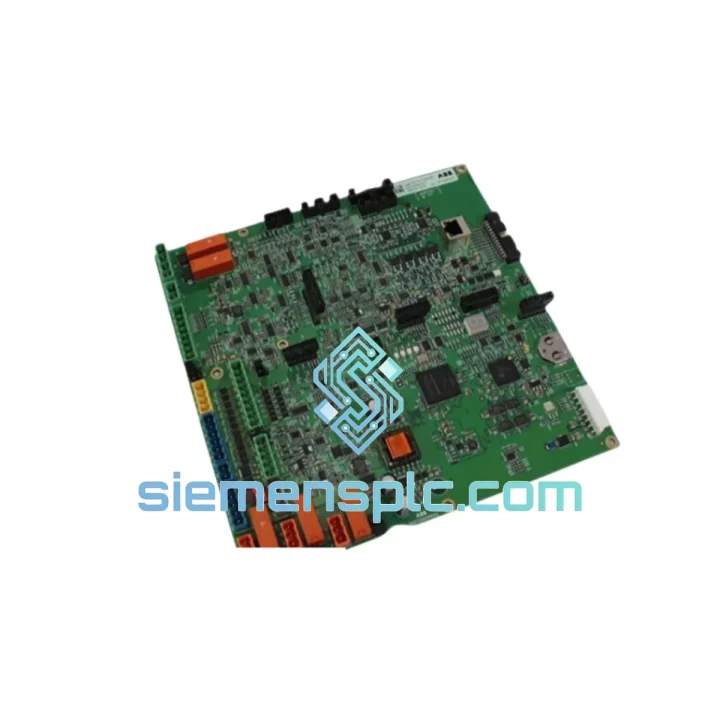

ABB SDCS-CON-3A 3ADT220120R0003 DC Drive Control Board

ABB SDCS-CON-3A 3ADT220120R0003 — Every Hour of Downtime Costs You. We Ship Today.

Your DCS800 drive just tripped. The line is cold. Maintenance is on the phone. You’ve already pulled the control board and confirmed it’s the SDCS-CON-3A — the brain of the entire DC drive system. You don’t need a sales pitch. You need the part, verified, boxed, and moving toward your facility before end of business.

We stock the ABB SDCS-CON-3A (reference: 3ADT220120R0003) in Xiamen, China. DHL Express and FedEx International Priority are our default carriers. Most shipments clear customs and arrive at European, Southeast Asian, and Middle Eastern destinations within 3–5 business days. North America typically 4–6 days. We’ve done this hundreds of times. The process is tight.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that point to SDCS-CON-3A failure:

• F507 / F508 (Current measurement fault): If the armature current feedback chain is broken at the board level — not the CT — the SDCS-CON-3A’s ADC front-end is the first suspect. Swap the board before condemning the power section.
• F519 (Speed feedback loss): Encoder or tacho signal is received at the terminal but the board fails to process it. Check parameter 50.01 (speed feedback selection) first. If the parameter is correct and the fault persists after a cold restart, the feedback conditioning circuit on the CON-3A is likely damaged — common after a transient overvoltage event on the encoder supply.
• F554 (Fieldbus communication loss): The DDCS fiber-optic receiver on the CON-3A degrades over time, especially in high-vibration environments. Clean the fiber connectors first. If the fault returns within minutes, the DDCS receiver on the board is failing.
• Blank CDP panel / no response on power-up: The CON-3A’s internal 5 V logic supply has collapsed. This is a board-level failure — do not attempt to repair. Replace the board.
• Intermittent F501 (Overcurrent) with no load change: Corrupted current regulator parameters or a failing DSP. Back up parameters via DriveWindow Light, replace the board, restore parameters, and re-run autotune (parameter 99.10).

Replacement procedure — field-tested steps:

1. Record all drive parameters using DriveWindow Light or CDP panel before powering down. Save to file — do not rely on memory.
2. Isolate the drive: open the main contactor, lock out the AC supply, and verify DC bus voltage is below 50 V with a calibrated meter before touching any internal component.
3. Photograph the ribbon cable and fiber-optic connector routing before disconnecting. The SDCS-CON-3A has five connectors: X1 (I/O), X2 (power board interface), X3 (CDP panel), X4 (DDCS fiber), X5 (field exciter). Reconnect in the same sequence.
4. The replacement SDCS-CON-3A ships with factory-default firmware. Do not assume the firmware version matches your existing installation. Check parameter 4.01 (firmware version) on the old board before removal. If the version differs, update firmware via DriveWindow Light using ABB’s official firmware package before restoring parameters.
5. After board installation, perform a cold start (power cycle). Do not restore parameters yet — first verify that the drive powers up without immediate faults and that the CDP panel communicates correctly.
6. Restore parameters from backup. Run autotune sequence (parameter 99.10 = 1) for current loop. Verify speed feedback signal quality in parameter group 50 before enabling the drive under load.
7. Note: The SDCS-CON-3A does not use hardware DIP switches for addressing. Node addressing for DDCS communication is set via parameter 70.01. Confirm this matches your system topology before enabling fieldbus.

Reliability in Harsh Conditions

The DCS800 platform was designed for the environments that destroy lesser drives — steel mill floors with airborne metallic dust, paper machine rooms with 90% humidity and chemical mist, offshore platforms with constant vibration and salt-laden air. The SDCS-CON-3A reflects that design philosophy at the board level.

The PCB uses a conformal coating process that provides a moisture and contamination barrier across the entire component surface. This is not a consumer-grade spray — it’s a polyurethane or acrylic coating applied to IEC 60721-3-3 Class 3C2 chemical environment standards. Connectors are gold-plated to resist oxidation in humid or mildly corrosive atmospheres. The DSP and RISC processors are industrial-grade components rated to 85 °C junction temperature, providing substantial thermal headroom even in poorly ventilated drive cabinets.

Vibration resistance is validated to IEC 60068-2-6: 1 Grms continuous, 2 Grms peak, across 10–500 Hz. This covers the resonance frequencies typical of compressor bases, pump skids, and crane structures. The board’s component mounting uses wave-soldered through-hole technology for high-stress connectors and SMD for signal-level components — a deliberate hybrid approach that maximizes mechanical integrity where it matters.

Units we supply are inspected under 10x magnification for solder joint integrity, PCB delamination, and component damage before dispatch. Any board showing signs of thermal stress, arc damage, or corrosion is rejected — regardless of whether it tests functional. You’re getting a board that will survive the environment, not just pass a bench test.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — a major international freight hub with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. Stock is physically on our shelves. When you confirm payment, the board is pulled, ESD-bagged, foam-packed in a double-wall export carton, and handed to the carrier the same business day (orders confirmed before 14:00 CST).

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 business days via DHL Express
• Europe (Germany, Netherlands, UK, Poland, Italy): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 4–6 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–8 business days, subject to customs clearance
• Australia / New Zealand: 3–5 business days via DHL Express

Every shipment includes full commercial invoice, packing list, and certificate of origin. HS code 853710 is declared on all export documents. For customers requiring ATA Carnet, CITES documentation, or specific customs pre-clearance, contact us 48 hours before shipment. We work with a licensed customs broker and can prepare documentation to your country’s import requirements.

Shipment tracking is provided via email within 2 hours of dispatch. Insurance is included up to the declared value. For high-value orders, we recommend DDP (Delivered Duty Paid) terms — ask us for a DDP quote when you submit your RFQ.
