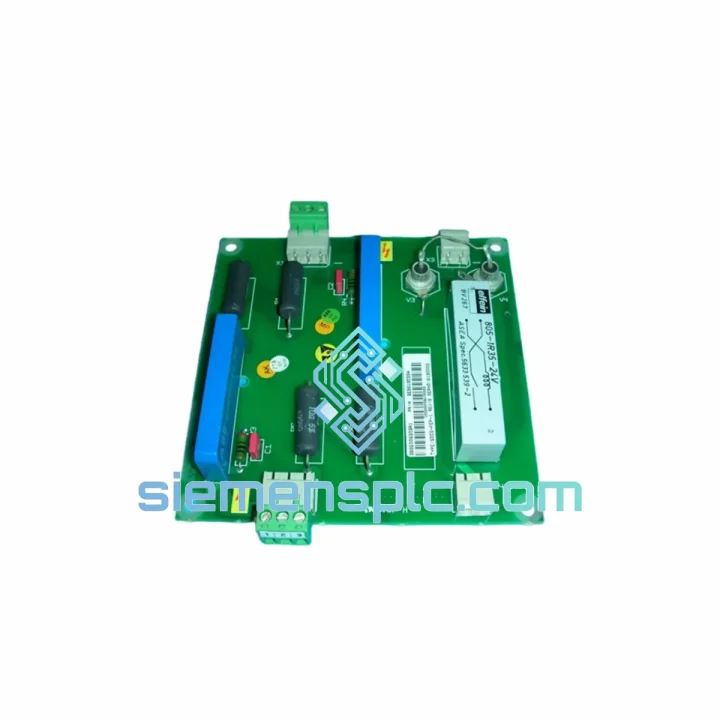

ABB SDCS-FEP-1 3BSE006309R1 Field Excitation Protection Board – DCS800 Series

ABB SDCS-FEP-1 (3BSE006309R1) — Dedicated Field Excitation Protection Board for DCS800 Fully Digital DC Drive Systems

The SDCS-FEP-1, catalogued under ABB order code 3BSE006309R1, is a purpose-engineered hardware protection board designed exclusively for the ABB DCS800 series of fully digital DC drives. Its operational mandate is singular and non-negotiable: to maintain continuous supervisory control over the field excitation circuit of separately excited DC motors, and to execute a deterministic hardware-level trip the moment that circuit deviates from its defined operating envelope. This is not a software protection layer. The SDCS-FEP-1 functions as an analog comparator circuit embedded within the drive’s internal architecture, operating independently of the SDCS-CON-4 main control board’s firmware execution cycle.

Understanding why this board exists requires a brief examination of DC motor physics. In a separately excited DC motor, the stator field winding is energized by an independent field supply — typically a single-phase or three-phase thyristor bridge — to establish the magnetic flux necessary for torque production. The armature winding, fed by the main thyristor bridge, carries the current that interacts with this flux. If field current collapses — whether from a blown field fuse, a thyristor open-circuit failure, a field winding short, or a supply interruption — the motor’s back-EMF drops sharply while armature current remains present. The result is uncontrolled speed acceleration, commonly called field weakening runaway, which can destroy the motor, the driven load, and adjacent mechanical structures within seconds. The SDCS-FEP-1 exists to prevent this failure mode at the hardware level, with a response time below 10 ms — a figure that is firmware-independent and load-invariant.

The board is a plug-in PCB module that mounts directly to the DCS800 drive’s internal backplane. It draws operating power from the drive’s auxiliary supply rail and requires no external wiring beyond its backplane connector interface. Signal exchange with the SDCS-CON-4 main control board occurs through a dedicated backplane signal line, bypassing the drive’s communication bus entirely to ensure that fault assertion is not subject to bus arbitration delays or firmware polling intervals.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SDCS-FEP-1 occupies a precise architectural position within the DCS800 signal chain: it sits between the analog output of the field thyristor bridge and the digital control domain of the SDCS-CON-4. This placement is deliberate. By operating in the analog domain, the board avoids the latency inherent in any digital signal processing path — no analog-to-digital conversion delay, no firmware polling interval, no interrupt service routine queue.

The board’s core circuit is a dual-threshold analog comparator. A current transducer mounted on the field thyristor bridge output feeds a scaled voltage signal into the comparator’s input stage. Two independently set reference voltages define the lower trip threshold (field loss) and the upper trip threshold (field overcurrent). When the monitored signal crosses either boundary, the comparator output transitions immediately, asserting a discrete fault signal on the backplane line connected to the SDCS-CON-4. The SDCS-CON-4 treats this signal as a non-maskable hardware interrupt, forcing an immediate drive trip regardless of the current operating mode or active control program.

From an electromagnetic compatibility standpoint, the SDCS-FEP-1 incorporates RC snubber networks on all input signal lines. These networks attenuate high-frequency transients generated by thyristor commutation — a switching event that produces voltage spikes with rise times in the nanosecond range and amplitudes that can exceed the supply rail by a factor of three or more. Without adequate snubbing, these transients can couple into the comparator input stage and produce false trip events. The PCB layout follows ABB’s internal EMC design rules for drive control boards, with a segmented ground plane that isolates the analog comparator signal path from any digital logic present on the board. This layout discipline is a primary differentiator between the genuine SDCS-FEP-1 and third-party replacement boards, which frequently omit this level of EMC hardening to reduce manufacturing cost.

At power-on, the board executes a self-test sequence that applies a known test signal to the comparator input and verifies that the output responds correctly. If the self-test fails — indicating a degraded comparator, a damaged input network, or a supply rail fault — the board asserts a permanent fault output, preventing the DCS800 from enabling. This fail-safe behavior ensures that the drive cannot operate with a compromised protection layer, a design principle consistent with IEC 61800-5-2 functional safety requirements for drive systems in industrial environments.

System Integration Benefits

• Hardware-speed fault isolation: The <10 ms hardware interrupt response time is independent of CPU load, firmware version, or active control program state — providing consistent protection performance across all DCS800 operating modes, including dynamic braking and field weakening.
• Drop-in OEM replacement with zero re-commissioning: The SDCS-FEP-1 is a direct plug-in replacement for the original board. No parameter adjustments, no firmware updates, and no drive re-commissioning are required after a board swap, reducing planned maintenance window duration to the time required for physical board exchange and drive restart.
• Structured fault code logging for diagnostic traceability: Every protection event is recorded as an F5xx-series fault code in the DCS800 fault buffer with a timestamp. Maintenance engineers can retrieve a complete field fault history without external test equipment, enabling root-cause analysis based on event sequence rather than speculation.
• Prevents armature energization without established field flux: The board’s hardware interlock prevents the DCS800 from enabling the armature thyristor bridge if field current has not reached the minimum threshold within the programmed establishment window — eliminating the physical conditions that produce field weakening runaway at startup.
• Backplane signal path eliminates external wiring failure modes: All signal exchange between the SDCS-FEP-1 and the SDCS-CON-4 occurs through the internal backplane connector. There are no external signal cables that can loosen under vibration, corrode in humid environments, or be inadvertently disconnected during adjacent maintenance work.
• Supports predictive maintenance scheduling: A pattern of increasing field fault frequency — even if each individual event is within the recoverable range — indicates progressive degradation of field thyristors or field winding insulation. The fault log provides the data needed to schedule proactive intervention before an unplanned shutdown occurs.
• Independent operation in multi-drive configurations: In master-follower or parallel DCS800 configurations, each drive’s SDCS-FEP-1 operates as a fully independent protection layer. A field fault on one drive asserts a trip only on that drive’s control board, preventing fault propagation to parallel drives in the same system.
• Reduces repair cost relative to drive replacement: Board-level replacement of the SDCS-FEP-1 restores complete field protection capability at a fraction of the cost of a full drive replacement or field thyristor bridge overhaul. For DCS800 drives in continuous-process applications, this cost differential is significant over a multi-year maintenance cycle.
• Maintains diagnostic transparency during field circuit commissioning: During initial drive commissioning or after field circuit modifications, the SDCS-FEP-1’s fault output provides a real-time hardware indicator of field current status, supplementing the software diagnostics available through the DCS800 control panel and DriveWindow commissioning tool.

Quality Assurance & Global Logistics

Each SDCS-FEP-1 unit dispatched from siemensplc.com is sourced through verified ABB authorized distribution channels. Authenticity is confirmed through ABB’s original PCB silkscreen markings, holographic security labels, and batch traceability codes that can be cross-referenced against ABB’s manufacturing records. Before any unit leaves our Xiamen warehouse, it undergoes a pre-shipment inspection protocol covering visual PCB integrity, backplane connector pin condition, ESD packaging verification, and label authenticity confirmation. Units that do not pass this inspection are quarantined and returned to the supply chain — they are not shipped.

Standard dispatch carriers are DHL Express and FedEx International Priority, both providing door-to-door tracking with typical transit times of 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. All PCB modules are shipped in ESD-safe anti-static bags within rigid outer packaging to prevent mechanical damage during transit. Complete export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every shipment to support customs clearance in all major import markets.

For emergency maintenance situations involving unplanned plant shutdowns, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. Our technical team can perform drive nameplate and control board revision cross-reference verification before shipment to confirm that the supplied SDCS-FEP-1 is compatible with the specific DCS800 frame and firmware revision in your installation.

All units carry a 12-month warranty against manufacturing defects from the date of shipment. Warranty claims are acknowledged within 48 hours, and replacement units for verified warranty cases are dispatched via express courier at no additional freight charge to the customer.
