ABB SMB3HAC031977-001 Sealing Adapter Ring

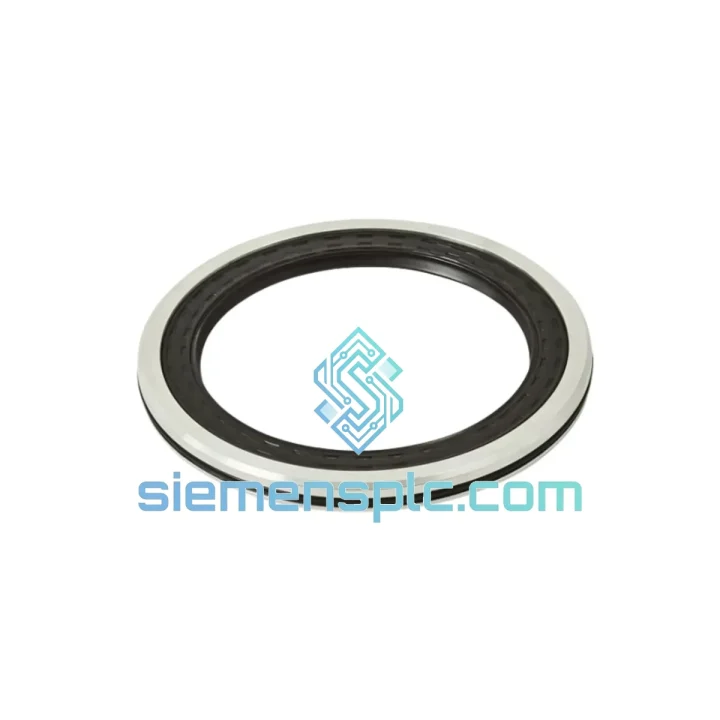

ABB SMB3HAC031977-001 Sealing Adapter Ring — Stop the Clock on Your IRB 6600 Downtime

Every hour an IRB 6600 sits idle on a body-in-white line or a foundry cell costs real money — line stoppages in automotive typically run $10,000–$50,000 per hour depending on throughput. When the sealing aluminium adapter ring at the axis gearbox interface fails, lubricant migrates into the SMB cavity, contaminates the encoder feedback path, and triggers fault codes that lock the entire robot. The ABB SMB3HAC031977-001 (cross-referenced as 3HAC039603-001 and 3HAC03872-001) is the OEM-specified component that closes that leak path. We stock it in Xiamen, China, and ship DHL/FedEx Express within 24 hours of order confirmation. That is the only number that matters when your line is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to this ring:

• ABB fault code 50296 — SMB communication error appearing intermittently, especially after thermal cycling. Root cause: lubricant film on SMB connector pins caused by adapter ring seal degradation.
• Axis 1 or Axis 2 position drift with no mechanical binding — encoder contamination from gearbox oil ingress through a failed sealing surface.
• Visible oil weeping at the gearbox-to-SMB housing joint during routine inspection.
• Grease discolouration or metallic particles in the gearbox cavity — sign that the ring has lost dimensional integrity and is allowing cross-contamination.

Replacement procedure — field notes:

1. Power down and lockout: Full LOTO on the robot controller. Confirm zero-energy state before opening any axis cover. Do not rely on software e-stop alone.
2. Drain gearbox lubricant: IRB 6600 axis gearboxes use ABB-specified grease (typically Optimol Longtime PD2 or equivalent). Drain before disassembly to prevent contamination spread. Volume varies by axis — check the ABB maintenance manual for your specific configuration.
3. SMB unit removal: Disconnect the SMB cable harness at the axis connector. Note cable routing — incorrect re-routing causes chafing faults within weeks. The SMB board itself does not require replacement unless fault 50296 persists after ring swap and connector cleaning.
4. Adapter ring extraction: The ring seats in a machined bore. Use a plastic or brass drift — steel tools will score the aluminium bore and create a new leak path. If the ring is seized due to corrosion, apply penetrating fluid and allow 20 minutes before attempting removal.
5. Bore inspection: Before fitting the new ring, inspect the mating bore for scoring, corrosion pitting, or out-of-round deformation. A damaged bore will cause the new ring to fail within weeks. If bore damage is present, the gearbox housing requires machining or replacement.
6. Installation: Fit the SMB3HAC031977-001 ring dry — no sealant, no thread locker. The ring relies on dimensional interference for sealing. Apply even hand pressure; do not hammer. Confirm seating is flush with the housing face within ±0.1 mm.
7. Refill and verify: Refill gearbox with the correct lubricant type and quantity per ABB specification. Run the axis through full range of motion for 10 cycles, then re-inspect the joint for any weeping before returning to production.
8. SMB re-commissioning: After reconnecting the SMB harness, perform a revolution counter update (RCU) via the FlexPendant. Skipping this step will cause axis calibration faults on first power-up.

Configuration note: The SMB3HAC031977-001 spans multiple IRB 6600 production revisions. Always cross-check your robot’s serial number against ABB’s spare parts catalogue to confirm the correct cross-reference applies to your specific build date. If in doubt, send us the robot serial number and we will verify before dispatch.

Reliability in Harsh Conditions

The IRB 6600 operates in environments that destroy lesser components — foundry cells with ambient temperatures exceeding 45 °C, automotive paint shops with solvent-laden air, and heavy-press lines where vibration is continuous and unpredictable. The SMB3HAC031977-001 adapter ring is machined from an aluminium alloy selected specifically for its combination of dimensional stability under thermal load and resistance to the chemical attack of industrial gearbox lubricants.

Dimensional stability matters here more than raw material strength. The sealing function depends on maintaining a consistent interference fit across a temperature range of 65 °C. Aluminium alloys with the correct temper designation hold tolerances within ±0.02 mm across this range — sufficient to maintain sealing pressure without over-stressing the bore. Cheaper aftermarket rings machined from incorrect alloy grades or with inadequate temper control lose their interference fit within months of installation in high-temperature environments, leading to the same lubricant ingress failure mode you were trying to fix.

Vibration resistance is equally non-negotiable. IRB 6600 axis assemblies generate significant torsional shock loads during high-acceleration moves with maximum payload. The ring must not migrate axially under these loads. OEM-specified geometry — including the exact bore depth and chamfer profile — ensures the ring remains positively located without relying on adhesive or mechanical fasteners that would complicate future maintenance.

Every unit we ship has been stored in a humidity-controlled, ESD-safe warehouse environment. Aluminium components exposed to high humidity during storage develop surface oxidation that compromises the sealing bore surface finish. We do not ship parts that have been stored in open racking in uncontrolled environments — a common problem with grey-market surplus stock.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx Express gateway access. This is not a drop-ship arrangement. Stock is physically on our shelves, inspected, and ready to pack.

Standard express routing from Xiamen:

• Southeast Asia (Thailand, Vietnam, Malaysia, Indonesia): DHL Express — 2–3 business days door to door.
• Europe (Germany, Italy, Spain, Poland, Czech Republic): FedEx International Priority — 3–5 business days. We handle EUR.1 and commercial invoice documentation for customs clearance.
• North America (USA, Canada, Mexico): DHL Express or FedEx — 3–4 business days. HS code 8473.30 typically applies; we provide full customs documentation.
• Middle East (UAE, Saudi Arabia, Qatar): DHL Express — 2–4 business days. DDP terms available on request.
• India: FedEx International Priority — 3–5 business days. We prepare all required import documentation including country of origin certificate.
• Australia & New Zealand: DHL Express — 3–4 business days.

For genuine production emergencies, contact us directly on WhatsApp before placing an order. We can confirm real-time stock, arrange same-day dispatch for orders confirmed before 14:00 CST, and provide a tracking number within 2 hours of handover to the carrier. We have shipped to 47 countries. Customs delays are rare for this commodity classification, but we proactively prepare documentation to minimise the risk.

Bulk orders (5+ units) qualify for sea freight consolidation with significantly reduced per-unit shipping cost. Lead time for sea freight from Xiamen to major ports is 18–25 days depending on destination. Contact us for a freight quotation.
