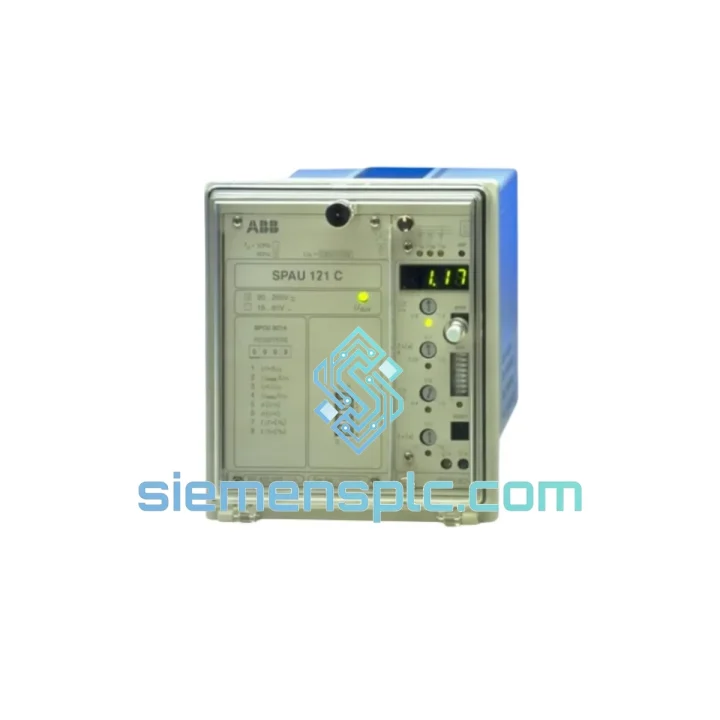

ABB SPAU121C-AA: Dedicated Voltage Supervision Relay for Industrial Power Protection

In any industrial power distribution architecture — whether a 6 kV plant bus, a 110 kV substation feeder, or an offshore generator switchboard — continuous voltage supervision is a non-negotiable layer of protection. The ABB SPAU121C-AA is a single-function, dedicated voltage protection relay implementing both ANSI 59 (overvoltage) and ANSI 27 (undervoltage) protection within a single panel-mount enclosure. It operates as a hardwired, analog-measurement-based relay, providing deterministic trip output without dependence on firmware update cycles or communication bus availability — a characteristic that remains operationally critical in legacy and hybrid protection schemes.

The SPAU121C-AA belongs to ABB’s SPAU relay family, a product line developed for utility-grade and heavy industrial protection applications. The SPAU series was engineered to IEC 60255 measurement and performance standards, and units in this family have accumulated decades of field service in power plants, petrochemical complexes, mining operations, and water treatment infrastructure across Europe, Asia, and the Americas. The SPAU121C-AA specifically addresses the voltage supervision function, monitoring the measured voltage against independently adjustable overvoltage and undervoltage pickup thresholds, and issuing a trip command to the associated circuit breaker or contactor when either threshold is violated for a configurable time delay period.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SPAU121C-AA employs an analog measurement front-end architecture rather than a sampled-value digital processing chain. The voltage input from the instrument transformer secondary is conditioned through a precision input transformer stage that provides galvanic isolation between the measurement circuit and the relay’s internal logic — a fundamental EMC design requirement per IEC 60255-26. This isolation stage attenuates common-mode interference from the high-voltage environment, which in substation applications can reach several kilovolts during switching transients.

The conditioned signal feeds into a rectifier and RMS conversion circuit. The SPAU121C-AA measures true RMS voltage, which is essential for accurate supervision in environments where harmonic distortion from variable-frequency drives, arc furnaces, or non-linear loads may cause peak-to-RMS ratios to deviate significantly from the ideal sinusoidal 1.414 factor. A relay that measures only peak voltage would exhibit systematic pickup errors under such conditions; the SPAU121C-AA’s RMS measurement architecture eliminates this error source.

Threshold comparison is performed by dedicated analog comparator circuits referenced against independently adjustable setpoint potentiometers for the OV and UV functions. The time-delay function is implemented via an RC-based timing circuit with a defined operate characteristic, providing definite-time (DT) delay behavior. This deterministic timing is critical for protection coordination: the relay’s operate time at any voltage excursion above or below the pickup threshold is fixed at the set delay value, independent of the magnitude of the voltage deviation — a behavior that simplifies coordination with upstream and downstream protection devices.

The output stage uses electromechanical relay contacts rated for both AC and DC trip circuits. The use of hardwired electromechanical output contacts — rather than solid-state switching — ensures compatibility with the full range of circuit breaker trip coil types encountered in legacy switchgear, including those requiring high inrush current at contact closure. The relay’s self-monitoring circuit continuously checks auxiliary supply integrity and will assert an alarm output if the auxiliary voltage falls outside operating limits, providing a watchdog function for the protection system itself.

EMC robustness is further addressed through internal filtering on the auxiliary supply input, suppressing conducted interference from the DC station battery system — a known source of high-frequency noise in substations due to battery charger switching. The relay’s enclosure provides shielding against radiated electromagnetic fields, consistent with the IEC 60255-26 Class III immunity requirements applicable to protection relays installed in switchgear panels.

System Integration Benefits

• Deterministic Trip Latency: Analog comparator architecture delivers consistent operate times with no firmware-dependent processing jitter, supporting precise protection coordination in multi-relay schemes.
• Independent OV/UV Setpoints: Separate adjustment of overvoltage and undervoltage pickup thresholds and time delays allows the relay to be configured for asymmetric protection requirements — for example, a tighter OV threshold for transformer protection combined with a longer UV delay to ride through motor starting voltage dips.
• Wide Auxiliary Supply Range: Compatibility with 24–250 V DC and 100–230 V AC auxiliary supplies eliminates the need for dedicated power supply modules in mixed-voltage switchgear panels, reducing BOM complexity.
• Hardwired Output Contacts: Electromechanical trip contacts interface directly with any circuit breaker trip coil without intermediate signal converters, maintaining protection chain integrity in the absence of communication infrastructure.
• IEC 60255 Compliance: Full compliance with the IEC 60255 series ensures the relay meets internationally recognized accuracy, timing, and EMC performance benchmarks, supporting protection coordination studies and regulatory submissions.
• Minimal Panel Space: The compact 144 × 72 mm flush-mount form factor allows installation in standard DIN 43700 panel cutouts, maximizing protection density in space-constrained switchgear enclosures.
• No Communication Dependency: The relay operates entirely independently of SCADA, DCS, or protection IED communication networks. Trip function is maintained during communication bus failures — a critical availability requirement for primary protection functions.
• Alarm Output for Diagnostic Transparency: A dedicated alarm output, separate from the trip output, allows the relay to signal pre-trip conditions or auxiliary supply faults to the control room without initiating a trip, supporting condition monitoring and predictive maintenance workflows.
• Compatibility with SPAU Ecosystem: The SPAU121C-AA integrates within ABB’s broader SPAU relay family, allowing engineers to build complete feeder protection schemes — overcurrent, earth fault, and voltage supervision — using a consistent hardware platform with shared test plug and auxiliary wiring standards.
• Long-Term Spare Parts Availability: As a mature, widely deployed relay type, the SPAU121C-AA benefits from an established global spare parts and replacement market, reducing lifecycle risk for installations with long planned service intervals.
