ABB SPHSS13 Hydraulic Servo Module – Advant AC450

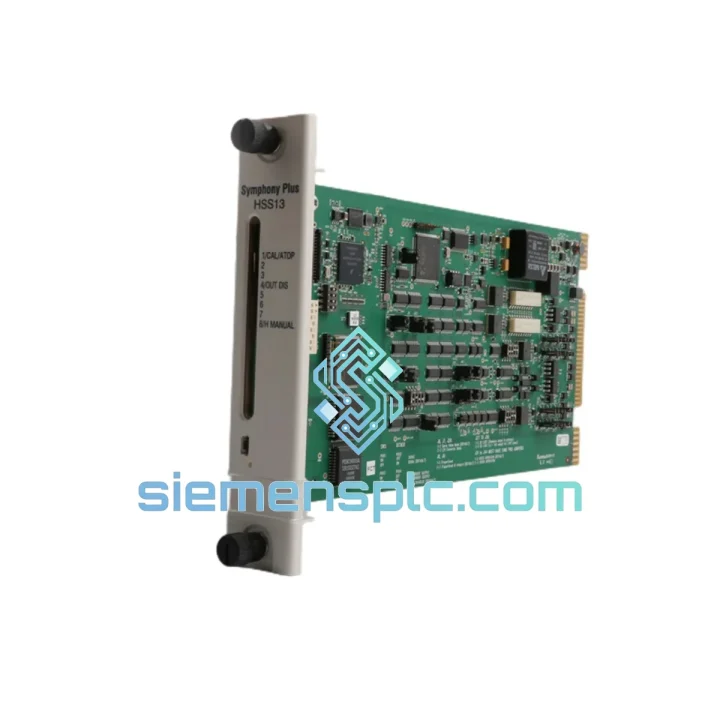

ABB SPHSS13 Hydraulic Servo Control Module — Closed-Loop Positioning in High-Force Industrial Actuator Systems

The ABB SPHSS13 is a dedicated hydraulic servo interface module engineered for the Advant Controller AC450 platform. Its primary function is to close the position and velocity control loop between the AC450 CPU and an electrohydraulic servo valve (EHSV), translating digital setpoints from the process controller into precision analog command signals while simultaneously conditioning position feedback from LVDT or potentiometric transducers. In high-force applications — rolling mill gap control, hydraulic press ram positioning, turbine governor actuation — where pneumatic or electric servo drives lack the force density required, the SPHSS13 provides the deterministic, low-latency interface that keeps the hydraulic actuator synchronized with the process control strategy.

Unlike generic analog output modules, the SPHSS13 integrates servo-specific signal conditioning: differential LVDT excitation and demodulation circuitry, configurable servo valve dither amplitude and frequency, and hardware-level position error limiting to prevent valve saturation during transient upsets. These functions execute at the module level, independent of the CPU scan cycle, which decouples servo loop bandwidth from PLC task scheduling — a critical architectural distinction in fast-response hydraulic systems where actuator dynamics operate in the 10–100 Hz range.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SPHSS13’s internal architecture separates into three functional blocks: the backplane interface logic, the servo computation engine, and the analog front-end.

Backplane Interface & Optical Isolation: All digital signals crossing the S100 backplane boundary pass through optocoupler isolation barriers rated at ≥ 500 V DC working isolation. This galvanic break prevents ground loop currents — endemic in large hydraulic machinery where motor drives, solenoid valves, and instrumentation share a common plant ground — from injecting common-mode noise into the servo command path. The isolation stage also protects the backplane logic from transient overvoltages generated by inductive switching of hydraulic solenoids in adjacent cabinet sections.

LVDT Signal Chain: The module generates a stable AC excitation voltage for the LVDT primary winding using an internal oscillator with amplitude regulation. The two secondary winding outputs are fed into a synchronous demodulator referenced to the excitation phase, producing a DC differential signal proportional to core displacement. A low-pass filter with configurable cutoff removes excitation carrier residual before the signal enters the A/D converter. This architecture achieves position measurement linearity better than 0.1% FSR without requiring external signal conditioning hardware, reducing panel wiring complexity and eliminating a common source of field calibration drift.

Dither Injection & Valve Hysteresis Compensation: Electrohydraulic servo valves exhibit mechanical hysteresis in the spool-sleeve interface, typically 0.5–3% of rated flow. The SPHSS13 superimposes a configurable dither signal — a low-amplitude, high-frequency sinusoidal perturbation — onto the servo command output. The dither frequency is set above the hydraulic actuator’s mechanical bandwidth so the actuator does not respond to it, while the valve spool responds by oscillating continuously around the null position, effectively eliminating static friction. This extends valve service life and maintains positioning repeatability at low command amplitudes where hysteresis effects are most pronounced.

EMC Design: The PCB layout employs a split ground plane strategy: digital logic ground and analog signal ground are connected at a single star point adjacent to the A/D converter reference, preventing digital switching currents from flowing through the analog return path. Decoupling capacitors are placed at each IC power pin with X7R ceramic dielectrics for stable capacitance across temperature. The module’s front panel connector uses shielded cable termination provisions, and the chassis connection point provides a low-impedance path to cabinet earth for shield drain currents.

System Integration Benefits

• Deterministic servo loop execution: The servo PID computation runs in hardware at the module level, not in the AC450 CPU task scheduler. This eliminates jitter introduced by CPU load variation and guarantees a fixed servo update interval regardless of the number of active function blocks in the controller program.
• Reduced wiring complexity: Integrated LVDT excitation and demodulation eliminates the need for a separate LVDT signal conditioner module, reducing terminal count, cabinet footprint, and potential failure points in the signal chain.
• Configurable valve dither: Dither amplitude and frequency are set via software parameters in the AC450 engineering tool, allowing field adjustment without hardware modification — critical when commissioning systems with valves from different manufacturers or after valve replacement.
• Hardware position error limiting: A configurable error limit register clamps the servo command output if the position error exceeds a defined threshold, preventing valve saturation and actuator runaway during sensor failures or setpoint step changes that exceed actuator slew rate.
• Diagnostic transparency: The module reports servo loop status, position error magnitude, and output saturation flags to the AC450 CPU via the backplane, enabling process historians and HMI displays to monitor servo health without additional instrumentation.
• Galvanic isolation from plant ground: The optocoupler isolation barrier on the backplane interface prevents ground loop interference from corrupting servo command signals, a persistent problem in steel mill and press environments where high-current motor drives share the plant ground network.
• Plug-compatible S100 form factor: The SPHSS13 occupies a standard S100 single-slot position and is recognized by the AC450 hardware configuration tool without custom driver development, reducing engineering time during system expansion or module replacement.
• Wide thermal operating range: Rated operation from 0°C to +55°C covers the ambient conditions of most industrial control cabinets without forced-air cooling, and the -40°C storage rating accommodates cold-climate shipping and warehouse storage without risk of component damage.

Quality Assurance & Global Logistics

Every SPHSS13 unit supplied by our team is sourced exclusively from ABB-authorized distribution channels or verified OEM surplus with full traceability documentation. Incoming units undergo a structured acceptance inspection: visual examination for physical damage, label and date-code verification against ABB part number records, and functional bench testing that exercises the LVDT excitation output, servo command DAC linearity, and backplane communication handshake. Units that do not pass all acceptance criteria are quarantined and not offered for sale.

Counterfeit industrial automation components are a documented risk in the global surplus market. Our procurement process includes cross-referencing serial number ranges with ABB production records where available, and physical inspection of PCB markings, component date codes, and conformal coating consistency — indicators that distinguish genuine ABB production units from remarked or cloned assemblies.

Shipping is handled from our warehouse in Xiamen, China, with daily dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days. All shipments include commercial invoice, packing list, and certificate of origin. ESD-safe anti-static packaging with foam-lined outer carton is standard. For project procurement requiring multiple units or phased delivery, consolidated shipment and bonded warehouse holding are available on request.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit at our Xiamen facility.
