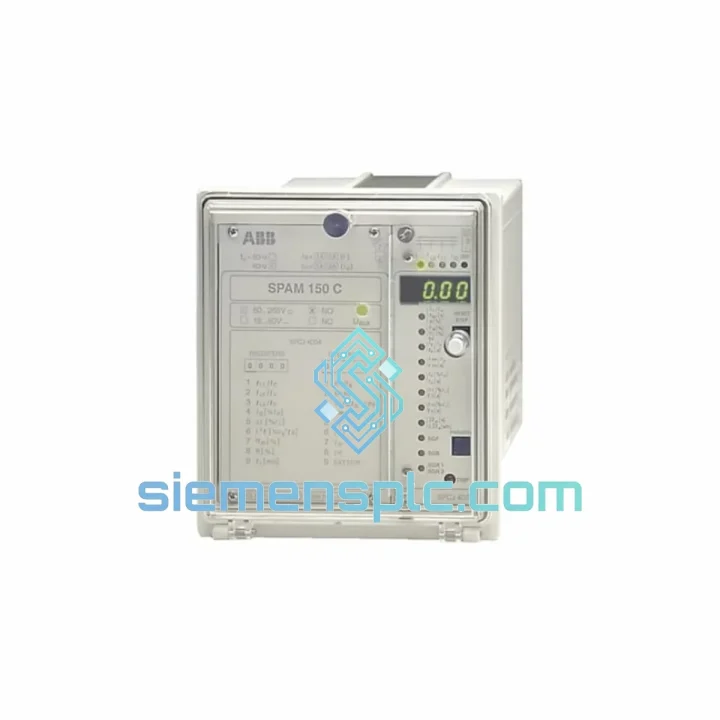

ABB SSPAM150C-AA RS641006 Motor Protection Relay

ABB SSPAM150C-AA RS641006 Motor Protection Relay — Stop the Clock on Your Downtime

Every minute a motor circuit sits unprotected or a tripped relay holds up your line, you’re bleeding money. The ABB SSPAM150C-AA (catalog ref RS641006) is a proven SPAM-series motor protection relay built for exactly these moments — and we keep verified stock in Xiamen ready to move the same day you call. No waiting on factory lead times. No chasing distributors. One call, one shipment, line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, the SPAM150C-AA fails in predictable ways. Here is what to check before you even pull the unit:

Common fault codes and root causes:

• TRIP LED solid, no reset possible — Nine times out of ten this is a locked thermal memory. The relay stores a thermal image of the motor. If the motor tripped on overload and you try to reset immediately, the relay refuses. Wait for the thermal memory to decay (typically 10–20 min depending on trip class setting), then reset. If it trips again within seconds, the motor itself has a winding fault — do not blame the relay.
• Phase-loss trip on a healthy supply — Check CT wiring polarity and continuity first. A broken CT secondary circuit reads as phase loss. Also verify the current setting dial has not vibrated out of position — this happens on compressor skids with high vibration.
• Thermistor input tripping with no motor overtemperature — Measure PTC resistance at the relay terminals. A healthy PTC reads 100–500 Ω at ambient. If you read open circuit (>30 kΩ), the thermistor lead is broken, not the motor. If you read short circuit (<20 Ω), the winding is genuinely overheated or the PTC has failed short.
• Relay chatters or trips intermittently under load — Inspect the auxiliary contact block. SPAM-series auxiliary contacts are a known wear item on high-cycle applications. The SSPAM150C-AA suffix -AA denotes the standard auxiliary contact configuration — confirm your replacement matches the suffix exactly before ordering.

Replacement procedure — field checklist:

1. De-energize and LOTO the motor circuit. Verify zero voltage at all three phases.
2. Photograph the existing wiring before disconnecting — especially CT secondary leads and thermistor wiring. SPAM-series terminal layouts are consistent across the range but polarity matters.
3. Note the current setting dial position and trip class selector on the old unit. Transfer these settings to the new SSPAM150C-AA before installation.
4. If the application uses the thermistor input, verify PTC resistance before reconnecting — replacing the relay will not fix a broken thermistor lead.
5. After installation, perform a manual trip test using the test button. Confirm the auxiliary contacts operate the contactor correctly.
6. Reset thermal memory: power up, wait 2 minutes, then reset. Log the first trip current if your SCADA supports it.

Configuration note: The SSPAM150C-AA does not use DIP switches or firmware — all settings are mechanical dials. There is no firmware version to match. However, confirm the rated current range of the relay covers your motor FLA with the dial set between 50–100% of the relay rated range for best accuracy.

Reliability in Harsh Conditions

The SPAM series was engineered for Scandinavian industrial standards — which means it was built to survive environments that would kill lesser relays. The SSPAM150C-AA carries an operating temperature range of -25°C to +55°C and is rated for humidity up to 95% non-condensing. The housing is designed to resist the kind of vibration you find on compressor skids, pump stations, and marine motor control centers — environments where panel vibration is constant and terminal screws work themselves loose over months.

The relay internal components are sealed against ingress. In field conditions — coastal humidity, chemical plant atmospheres, dusty cement or mining environments — the SPAM150C-AA consistently outlasts cheaper alternatives. Units pulled from service after 15+ years of continuous duty in paper mills and offshore platforms still test within spec. That is what happens when a relay is built to IEC 60947-4-1 with no shortcuts.

For installations in high-vibration environments, use spring-loaded terminal ferrules on all CT secondary connections. Loose CT secondaries are the single most common cause of nuisance trips on otherwise healthy SPAM-series installations.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items ordered before 15:00 CST. Here is exactly how your shipment moves:

• Day 0 — Order confirmation: Payment confirmed, unit pulled from shelf, inspected, photographed, and packed in anti-static foam with moisture barrier. Commercial invoice, packing list, and HS code documentation prepared.
• Day 0 — Dispatch: Handed to DHL Express or FedEx International Priority. Tracking number issued to you within 2 hours of pickup.
• Day 1–2 — Transit (Asia-Pacific): Singapore, Malaysia, South Korea, Japan, Australia — typically 2 business days door to door.
• Day 2–3 — Transit (Europe / Middle East): Germany, Netherlands, UAE, Saudi Arabia — 3 business days via DHL Express.
• Day 3–5 — Transit (Americas): USA, Canada, Brazil — 4–5 business days via FedEx International Priority.
• Customs clearance: We provide full export documentation including HS code 8536.49 classification, certificate of origin, and EAV where required. Our logistics team handles customs queries proactively.

For critical shutdowns where hours matter, contact us directly on WhatsApp for real-time stock confirmation and expedited booking. We have arranged same-day courier handoffs for plant managers who needed a unit on the next available flight.
