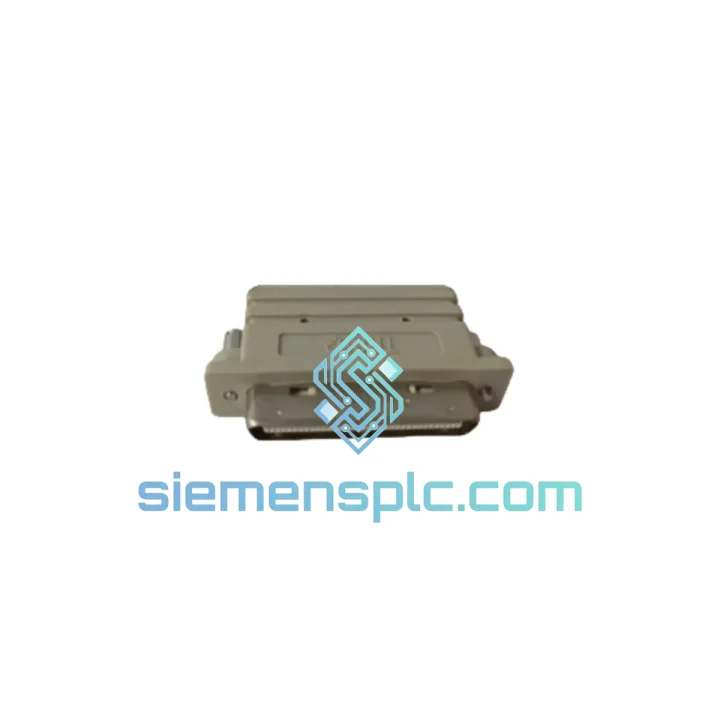

ABB TB852 RCU Link Bus Terminator – Stop the Bleed on Your Advant OCS Network Before It Costs You Another Shift

Your RCU bus is down. Nodes are dropping. The DCS is throwing communication faults and your operators are running blind. You’ve already traced it to a missing or failed terminator — and now every minute without the ABB TB852 is money walking out the door. We stock this unit in Xiamen. It ships today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Pattern Recognition

When the TB852 fails or is absent, the Advant OCS system does not throw a clean hardware fault — it degrades. Watch for these specific indicators before you start chasing ghosts in your I/O cards:

• Intermittent node dropouts on the RCU link segment — nodes cycle between ONLINE and OFFLINE in the system status display without any physical cable change.
• CRC errors accumulating on the RCU communication diagnostic screen — if your error counter is climbing faster than 10 per minute at idle, suspect termination first.
• Bus reflections visible on oscilloscope — if you have access to a scope, probe the bus differential pair at the far end. A clean terminated bus shows a clean square wave edge; a missing terminator shows a double-hump ringing artifact.
• Selective node failures — nodes at the physical far end of the bus segment fail first because they see the worst signal quality. If your end-of-line nodes are the ones dropping, the TB852 is your first suspect.

Step-by-Step Replacement Procedure

1. Identify bus topology — Locate the physical ends of the RCU link segment on your cabinet wiring diagram. The TB852 must be installed at both termination points. Replacing only one will not resolve the fault.
2. No firmware action required — The TB852 is a passive component. There is no firmware, no DIP switch, no address configuration. Plug it in and the bus sees the correct impedance immediately.
3. Power-down not mandatory but recommended — In most Advant OCS topologies, the terminator can be swapped with the bus powered. However, if your segment carries safety-critical nodes, coordinate with your safety officer before hot-swapping.
4. Verify with diagnostics — After installation, open the RCU link diagnostic view in the Advant OCS engineering tool. CRC error rate should drop to near-zero within 30 seconds. Node status should stabilize to ONLINE within one communication cycle.
5. Document the swap — Log the replacement in your maintenance system with the date, unit serial number, and bus segment ID. ABB recommends periodic inspection of terminator connector pins for oxidation in high-humidity environments.

Common Misdiagnosis

Engineers frequently replace the TB851 RCU Link Module or the CI854 communication interface before checking the terminator. The TB852 costs a fraction of those modules and should always be the first swap when bus-level communication faults appear. If you’ve already replaced the active components and the fault persists, the terminator is almost certainly the root cause.

Reliability in Harsh Conditions

The TB852 is not a commodity component — it is an ABB-engineered passive device built to the same environmental specification as the active Advant OCS hardware it supports. In the field, this matters.

Vibration — Industrial cabinets in compressor stations, pump houses, and marine platforms transmit continuous mechanical vibration to every connector. The TB852’s plug-in connector uses a positive-retention locking mechanism that maintains contact integrity under sustained vibration profiles consistent with IEC 60068-2-6 test conditions. Loose terminators that work themselves free are a known failure mode with generic aftermarket substitutes — not with the original ABB part.

Thermal cycling — Process plants cycle between cold startups and full-load operating temperatures daily. The TB852’s passive resistor network is specified across the full Advant OCS operating temperature range. Resistance drift from thermal cycling is negligible over the product’s service life, meaning impedance matching remains accurate year after year without recalibration.

Humidity and condensation — Coastal facilities, offshore platforms, and tropical installations expose control hardware to sustained high humidity. The TB852’s connector contacts are gold-plated to resist oxidation. Units stored in our Xiamen warehouse are kept in climate-controlled, ESD-safe conditions and shipped in sealed anti-static packaging to preserve contact integrity from warehouse to cabinet.

Long-term availability — ABB’s Advant OCS platform has been in service for decades and continues to operate in critical infrastructure worldwide. We maintain stock of the TB852 specifically because end-of-life hardware creates the most dangerous supply gaps — when you need it, you cannot wait six weeks for a factory order.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for confirmed orders received before 15:00 CST. Here is exactly what happens after you place your order:

• Order confirmation — You receive a confirmation email within 30 minutes with your order reference and estimated dispatch time.
• Pre-shipment inspection — Each TB852 unit is visually inspected for connector condition, label authenticity, and packaging integrity before it leaves our facility.
• Export documentation — We prepare the commercial invoice, packing list, and HS code declaration (HS 8537.10) for customs clearance. For orders requiring a Certificate of Origin, notify us at the time of order.
• Carrier selection — DHL Express and FedEx International Priority are our primary carriers for time-critical shipments. Transit times: Southeast Asia 1–2 days, Europe 3–4 days, Americas 3–5 days, Middle East 2–3 days.
• Tracking — A tracking number is emailed within 2 hours of dispatch. For DHL shipments, you can also request proactive milestone notifications via DHL’s On-Demand Delivery service.
• Emergency freight — For plant shutdowns requiring next-flight-out courier service, contact us directly on WhatsApp. We coordinate with freight forwarders for hand-carry and charter options when standard express timelines are insufficient.

We have shipped Advant OCS components to refineries in the Middle East, power plants in Southeast Asia, and paper mills in Scandinavia. The logistics process is the same every time — fast, documented, and traceable.
