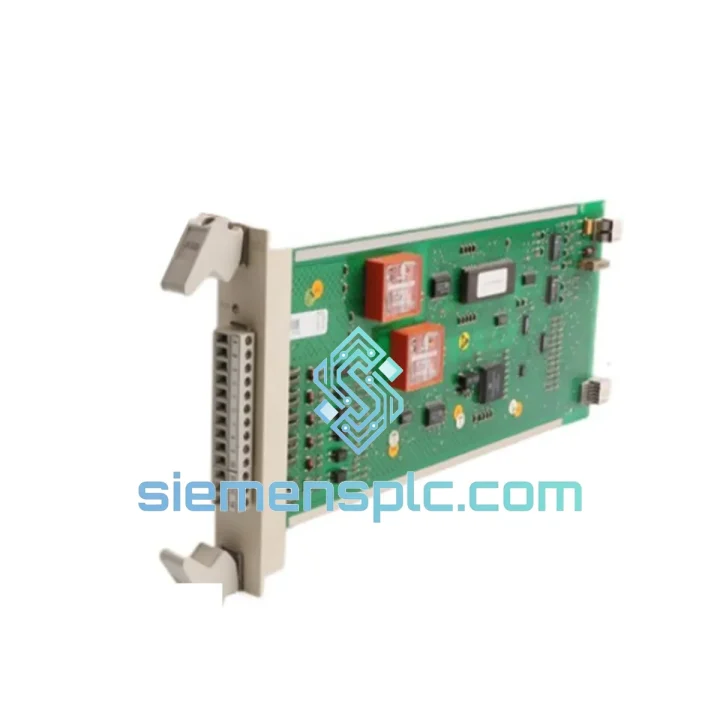

ABB TC520 System Status Collector: Diagnostic Architecture in the Advant Controller 450 Control Loop

The ABB TC520 is a dedicated system status collection module engineered for the Advant Controller 450 (AC450) distributed control system platform. Within a multi-node AC450 installation, the TC520 occupies a structurally distinct role: it does not participate in process I/O execution or PID loop computation. Instead, it operates as a passive-active diagnostic aggregator, continuously polling controller nodes across the MasterBus 300 backplane and consolidating health telemetry into a format accessible to the operator station and engineering workstation layers.

In a typical AC450 architecture, the backplane communication fabric operates at a deterministic token-passing protocol. The TC520 interfaces with this bus without introducing additional arbitration latency — it listens to broadcast status frames emitted by processor modules (PM450, PM511 variants) and communication controllers (CI520, CI522), then assembles a structured status map that reflects the real-time operational state of each node. This design means the TC520 adds diagnostic transparency without consuming any portion of the controller’s scan cycle budget.

For facilities running continuous processes — refineries, combined-cycle power plants, chlor-alkali production lines — the consequence of an undetected controller fault is not merely an alarm: it is a potential process excursion. The TC520 addresses this by providing sub-second fault state propagation to the supervisory layer, enabling operators to initiate corrective action before a degraded controller node affects loop integrity. Its architecture reflects ABB’s design philosophy for the AC450 series: deterministic behavior, transparent diagnostics, and long-term field serviceability.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TC520’s internal architecture is structured around three functional layers: bus interface logic, status aggregation firmware, and a diagnostic output register.

Bus Interface & EMC Design: The module’s MasterBus 300 interface incorporates transformer-coupled isolation between the backplane signal lines and the internal logic circuitry. This galvanic separation provides common-mode rejection exceeding 1,500 V peak, which is critical in industrial environments where ground potential differences between cabinet sections can introduce noise voltages that corrupt diagnostic data. The transformer coupling also ensures that a fault condition on the backplane — including a short-circuit on a communication line — does not propagate destructively into the TC520’s internal logic.

Status Aggregation Firmware: The TC520 executes a cyclic polling routine against each registered node address on the MasterBus. Each poll cycle retrieves a structured status word from the target node’s health register. The firmware maintains a local status table indexed by node address, with timestamp resolution sufficient to detect transient faults that persist for less than one full controller scan cycle. This sub-scan-cycle fault capture capability is architecturally significant: it means the TC520 can log intermittent communication errors that would otherwise be invisible to the operator station, which only receives status updates at the supervisory polling rate.

Redundancy Arbitration Logic: In AC450 installations configured with redundant processor pairs, the TC520 participates in the redundancy state machine by monitoring the active/standby role assignments of paired PM modules. When a switchover event occurs — whether initiated by a hardware fault or a commanded test — the TC520 records the switchover timestamp and the triggering fault code. This data is accessible to the engineering workstation via the MasterBus diagnostic channel, providing a post-event audit trail without requiring a separate data historian connection.

Diagnostic Output Register: The TC520 exposes a structured output register that maps each monitored node’s status to a defined bit field. Operator stations running ABB’s Advant Station software can read this register directly, enabling the construction of system-wide health dashboards without custom programming. The register format is fixed and documented in ABB’s AC450 system documentation, ensuring compatibility across all firmware revisions of the TC520.

System Integration Benefits

• Non-intrusive diagnostic monitoring: The TC520 operates as a passive listener on the MasterBus 300 during normal operation, consuming no portion of the controller’s deterministic scan cycle. Diagnostic overhead is architecturally isolated from process execution.
• Sub-scan-cycle fault capture: The module’s polling firmware detects transient communication errors at a resolution finer than the supervisory polling interval, capturing intermittent faults that would otherwise go unlogged.
• Redundancy switchover audit trail: In dual-redundant PM configurations, the TC520 records switchover events with fault code and timestamp, providing a structured post-event record accessible via the engineering workstation without a separate historian.
• Structured status register for HMI integration: The fixed-format output register maps directly to Advant Station display objects, enabling system-wide health dashboards without custom application programming.
• Galvanic isolation on bus interface: Transformer-coupled isolation on the MasterBus interface provides >1,500 V common-mode rejection, protecting internal logic from ground potential differences and conducted noise in multi-cabinet installations.
• Fault localization to node level: Status data is indexed by node address, allowing maintenance engineers to identify the specific module generating a fault condition without manual interrogation of each subrack position.
• Compatibility across AC450 firmware revisions: The TC520’s register format and bus protocol implementation are consistent across all documented AC450 firmware versions, eliminating compatibility risk when deploying replacement units into existing installations.
• Reduced mean time to repair (MTTR): By providing precise fault location data and a timestamped event log, the TC520 eliminates the diagnostic guesswork that typically extends unplanned downtime. Maintenance teams can identify the root-cause module before opening a single cabinet door.
• Continuous 24/7 operation without maintenance intervention: The module contains no moving parts, no battery-backed memory requiring periodic replacement, and no wear components. Its operational design life aligns with the AC450 platform’s extended field deployment expectations.
• Scalable to large node counts: The TC520’s polling architecture scales linearly with the number of registered nodes, maintaining consistent diagnostic latency regardless of system size within the AC450 node count limits.

Quality Assurance & Global Logistics

Every ABB TC520 unit supplied by siemensplc.com is sourced through verified industrial channels, with full traceability to original ABB manufacturing documentation. Units undergo a structured pre-shipment inspection protocol covering visual integrity assessment, connector pin condition verification, label and firmware revision confirmation, and where test infrastructure permits, functional bench verification against a reference AC450 subrack.

All modules are packed in anti-static shielding bags, placed in foam-lined rigid cartons rated for international air freight handling. Shipments originate from Xiamen, China, with export documentation including commercial invoice, packing list, and certificate of origin prepared to the importing country’s customs requirements. Standard international carriers used include DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Transit times to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East typically range from 3 to 7 business days from shipment date.

A 12-month warranty is provided on all TC520 units, covering functional defects attributable to the module itself under normal operating conditions consistent with ABB’s published environmental specifications. Warranty claims are handled directly by siemensplc.com’s technical team, with replacement or credit resolution targeted within 10 business days of fault confirmation.
