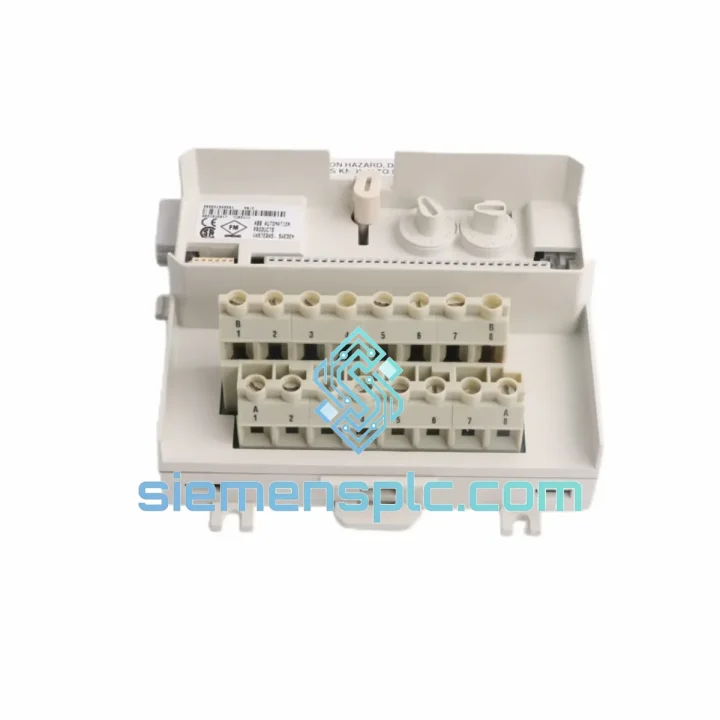

ABB TU831V1 3BSE013235R1 Termination Unit – S800 I/O

ABB TU831V1 3BSE013235R1 — S800 Extended Module Termination Unit for AC800M DCS Field I/O Marshalling

The ABB TU831V1 (order code 3BSE013235R1) is a field-wiring termination unit engineered for the S800 I/O platform within ABB’s AC800M distributed control architecture. Its primary function in the control loop is to serve as the structured electrical interface between process field cables and the S800 I/O signal-processing modules. Unlike a standard termination unit, the TU831V1 provides an extended terminal block layout, accommodating higher channel-density wiring without requiring additional marshalling hardware. In multi-loop process control environments — refinery column control, boiler drum level regulation, or turbine protection logic — the integrity of the field-wiring interface directly determines loop accuracy and diagnostic resolution. The TU831V1 addresses this by providing a mechanically stable, electrically isolated, and fully labeled terminal structure that eliminates wiring ambiguity at the cabinet level.

Each TU831V1 mounts on standard 35 mm DIN rail and accepts direct plug-in of the corresponding S800 I/O module via a keyed mechanical connector, ensuring correct module-to-termination-unit pairing and preventing mis-insertion during maintenance cycles. The screw-terminal field wiring side accommodates standard 0.5–2.5 mm² conductors, compatible with typical instrumentation cable gauges used in IEC 61511 SIL-rated loops.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TU831V1 operates as a passive but structurally critical node in the S800 I/O signal chain. Its hardware design reflects several deliberate engineering decisions that reduce system risk in industrial cabinet environments.

Mechanical Keying and Module Pairing: The plug-in connector between the TU831V1 and the S800 I/O module uses a physically keyed interface. This prevents incorrect module insertion — a common source of field wiring damage during hot-maintenance operations. The keying geometry is specific to the extended termination unit class, meaning a standard TU830V1 cannot be accidentally substituted in a slot designed for TU831V1 without physical resistance, providing a passive error-proofing layer.

Extended Terminal Block Architecture: The extended layout increases the number of accessible field terminals per unit footprint compared to the standard TU830V1. This is not simply a larger housing — the internal bus bar routing is redesigned to maintain consistent terminal impedance across all channels, preventing differential ground offsets that can introduce common-mode noise into analog signal loops. For 4–20 mA current loops operating at low signal levels, this impedance consistency is measurable in loop calibration accuracy.

EMC Design Considerations: The TU831V1 terminal block is designed for use within grounded steel enclosures per IEC 61000-4 series requirements. The DIN rail mounting provides a low-impedance chassis ground path, and the terminal layout separates field-side conductors from the module-side connector to reduce capacitive coupling between high-frequency transients on field cables and the S800 module’s analog front-end circuitry. In environments with variable-frequency drives or high-current switching loads in adjacent panels, this physical separation is a meaningful EMC mitigation measure.

Module Hot-Swap Compatibility: The TU831V1 supports the S800 I/O system’s module replacement capability. Because field wiring remains terminated on the TU831V1 during module removal, loop continuity at the field side is maintained. The module-side connector disengages cleanly without disturbing screw terminals, reducing the risk of accidental conductor displacement during maintenance — a critical factor in continuous-process plants where loop interruption triggers process alarms.

Label and Documentation Integration: Each terminal position on the TU831V1 corresponds to a defined signal assignment in ABB’s S800 I/O module documentation. The terminal numbering is consistent across the S800 family, allowing loop drawings and cable schedules to reference terminal numbers directly without site-specific re-mapping. This reduces commissioning time and eliminates a common source of wiring errors during panel build.

System Integration Benefits

• Deterministic loop wiring: Fixed terminal assignments aligned with ABB S800 module documentation eliminate re-mapping during commissioning, reducing loop check time per channel by an estimated 15–25% compared to generic marshalling approaches.
• Preserved field cable schedules: Because the TU831V1 retains field wiring during module swap, existing cable schedules and as-built loop drawings remain valid across the module’s service life — no re-documentation required after maintenance.
• Reduced cabinet footprint: The extended terminal layout consolidates more field connections per DIN rail segment compared to using multiple standard termination units, freeing cabinet space for additional I/O expansion or cable management infrastructure.
• Diagnostic transparency: The TU831V1’s direct physical connection to the S800 module preserves the module’s channel-level diagnostics — open-circuit detection, short-circuit flags, and out-of-range alerts — without signal conditioning losses introduced by intermediate terminal blocks or signal isolators.
• IEC 61131-2 compliance: The unit meets the electrical and mechanical requirements of IEC 61131-2, ensuring compatibility with certified PLC/DCS installations where component-level compliance documentation is required for system validation.
• Lifecycle alignment with AC800M: ABB’s AC800M platform has a documented long-term support roadmap. The TU831V1 is a catalogued spare part within ABB’s service agreements, providing procurement predictability for plant maintenance teams managing 10–20 year asset lifecycles.
• Simplified redundancy architecture: In non-redundant I/O configurations, the TU831V1 provides a clean single-module interface. When redundancy is required, the system architecture migrates to TU835V1 without changing field wiring, as the terminal layout is compatible — protecting the field cable investment.
• Reduced commissioning risk in SIL-rated loops: For loops subject to IEC 61511 functional safety requirements, using the OEM-specified termination unit eliminates the need for additional validation testing that would be required if a non-certified substitute were used, reducing pre-startup safety review (PSSR) scope.

Quality Assurance & Global Logistics

All ABB TU831V1 units supplied by siemensplc.com are sourced through verified industrial procurement channels with full part traceability. Each unit is inspected against ABB’s original packaging and labeling standards prior to dispatch, including verification of the order code sticker (3BSE013235R1), hardware revision marking, and physical connector condition. No repackaged, relabeled, or counterfeit units are accepted into inventory.

Units are dispatched from our warehouse in Xiamen, China, with access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all international shipments. For customers requiring additional documentation, certificates of conformity and original ABB datasheets are available on request.

Typical dispatch lead time for in-stock units is 1–2 business days from order confirmation. Air freight transit times to major industrial hubs: Europe 3–5 days, North America 4–6 days, Southeast Asia 2–3 days, Middle East 3–5 days. All shipments include tracking and are covered by our 12-month warranty against manufacturing defects from the date of dispatch.

For urgent plant maintenance requirements or large-volume procurement, contact our technical sales team directly for priority handling and consolidated shipping options.
