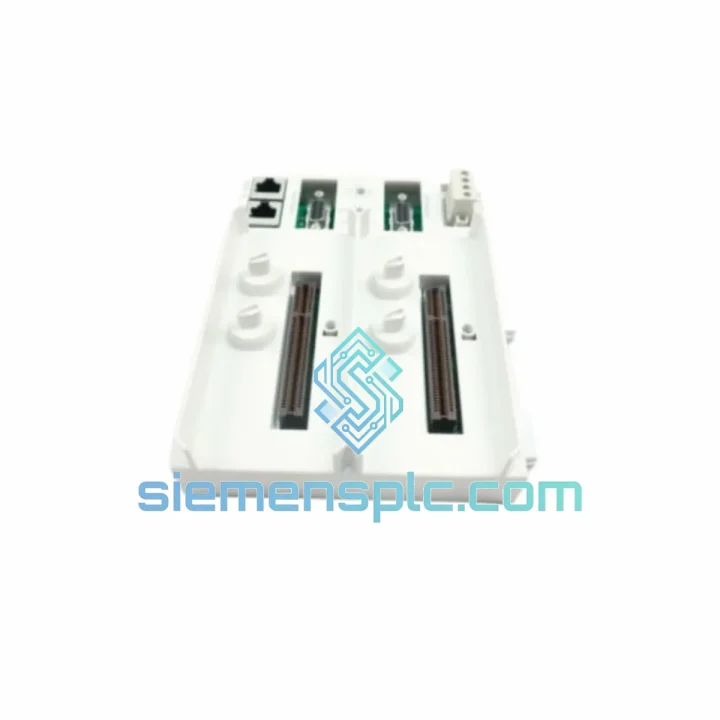

ABB TU846 3BSE022460R1 Module Termination Unit – Advant OCS

ABB TU846 3BSE022460R1: Passive Termination Architecture in Advant OCS Field I/O Loops

The ABB TU846 (order reference 3BSE022460R1) is a Module Termination Unit designed for the Advant OCS distributed control platform. Its function within the control loop is structurally passive but operationally indispensable: it decouples the field wiring layer from the active I/O module layer, allowing module replacement without disturbing field cable terminations. In process industries where loop continuity is measured in milliseconds and unplanned downtime carries six-figure hourly costs, this architectural separation is not a convenience—it is a maintenance strategy embedded in hardware.

Within the Advant OCS backplane hierarchy, the TU846 sits at the physical boundary between the field instrument cable and the I/O module connector. Field signals—whether 4–20 mA analog loops, 24 VDC discrete inputs, or thermocouple pairs—terminate at the TU846’s screw-clamp or spring-cage terminals. The mating I/O module plugs into the termination unit via a defined connector interface, establishing the signal path into the Modulebus communication layer and ultimately to the AC110, AC160, or AC450 controller CPU. When the I/O module requires replacement, the TU846 remains wired; only the active module is extracted. This reduces MTTR from hours to minutes in live plant environments.

The Advant OCS platform has been deployed across power generation, oil and gas, pulp and paper, and chemical processing facilities since the early 1990s. Many of these installations remain in service under long-term maintenance contracts, and the TU846 is a recurring spare requirement for MRO teams managing aging but operationally stable control infrastructure. Its continued availability is a direct factor in the supportability of these systems.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TU846’s hardware design reflects ABB’s approach to field-side signal integrity in the Advant OCS architecture. Several engineering decisions are worth examining in detail:

Wiring Separation and MTTR Reduction: The termination unit implements a two-layer physical architecture. Layer one is the field wiring layer—screw-clamp terminals rated for conductor cross-sections typically from 0.5 mm² to 2.5 mm², accommodating both solid and stranded wire. Layer two is the module interface layer—a keyed, polarized connector that mates with the corresponding I/O module. The mechanical keying prevents incorrect module insertion, eliminating a class of commissioning errors common in high-density I/O racks.

EMC Design Considerations: In the Advant OCS rack environment, the TU846 contributes to the system’s electromagnetic compatibility posture by providing a defined, low-impedance ground reference path for cable shields. Field cable shields can be terminated at the TU846’s dedicated shield bar, ensuring that high-frequency interference coupled onto field cables is drained to the rack ground plane before entering the I/O module’s analog front end. This is particularly relevant in installations near variable-frequency drives, high-current switchgear, or RF-emitting equipment.

Mechanical Stability Under Vibration: Industrial process environments—particularly compressor stations, rotating machinery platforms, and marine installations—subject control hardware to continuous low-frequency vibration. The TU846’s screw-clamp terminals, when properly torqued to ABB’s specified values, maintain contact resistance below the threshold that would introduce measurable signal error in 4–20 mA loops. Spring-cage variants (where applicable) provide self-compensating contact force that accommodates thermal cycling without re-torquing.

Passive Architecture and Fault Isolation: Because the TU846 contains no active components—no signal conditioning, no bus transceivers, no power regulation—it introduces no failure modes of its own beyond mechanical wear and terminal oxidation. This passive architecture means that a TU846 fault is almost always traceable to a physical cause: loose terminal, damaged connector, or contamination. Diagnostic isolation is straightforward, and the unit can be verified with a continuity meter without specialized test equipment.

System Integration Benefits

• Zero-rewire Module Replacement: Field cables remain terminated at the TU846 during I/O module swap-out. A trained technician can replace an active I/O module in under five minutes without touching field wiring, eliminating the risk of miswiring during maintenance.
• Deterministic Signal Path: The fixed, passive signal path through the TU846 introduces no variable delay or signal conditioning. Analog signals pass through with defined impedance characteristics, supporting the Advant OCS controller’s scan-cycle determinism.
• Diagnostic Transparency: The physical separation of field wiring and module interface simplifies fault localization. A signal fault can be isolated to either the field side (TU846 terminals and cable) or the module side (I/O module electronics) without ambiguity.
• Rack Density Compatibility: The TU846 is dimensioned to fit the standard Advant OCS rack slot pitch, maintaining full rack density without mechanical interference between adjacent termination units.
• Long-term Platform Supportability: As a passive component with no firmware dependency, the TU846 is not subject to software obsolescence. It remains compatible with the Advant OCS platform regardless of controller firmware revisions or communication protocol updates.
• Reduced Commissioning Risk: Keyed module connectors prevent cross-insertion of incompatible I/O modules, reducing the risk of hardware damage or incorrect signal mapping during initial commissioning or module replacement.
• Shield Termination Infrastructure: Integrated cable shield termination points support IEC 61000-5-2 compliant shielding practices, contributing to the system’s overall EMC performance without requiring additional shield termination hardware.
• Inventory Simplification: A single TU846 unit supports the corresponding I/O module type across the Advant OCS product range, reducing the number of unique spare part numbers that MRO teams must stock and manage.

Quality Assurance & Global Logistics

Every ABB TU846 3BSE022460R1 unit supplied by siemensplc.com is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol. Physical inspection confirms label authenticity against ABB’s catalog reference, connector integrity, terminal condition, and absence of mechanical damage. Electrical continuity verification confirms signal path integrity through all terminal-to-connector paths prior to packaging.

Units are packaged in anti-static bags with foam-lined cartons rated for international air freight handling. Shipments originate from our warehouse in Xiamen, China—a logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard international transit times range from 3 to 7 business days to major industrial centers in Europe, the Middle East, Southeast Asia, and the Americas. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

All units are supplied with a 12-month warranty covering manufacturing defects and verified functional failures. Documentation packages—including packing lists, commercial invoices, and certificates of conformity where available—are prepared to support customs clearance in regulated import markets. For orders requiring specific export documentation (EUR.1, Form A, or country-of-origin certificates), please specify at the time of inquiry.
