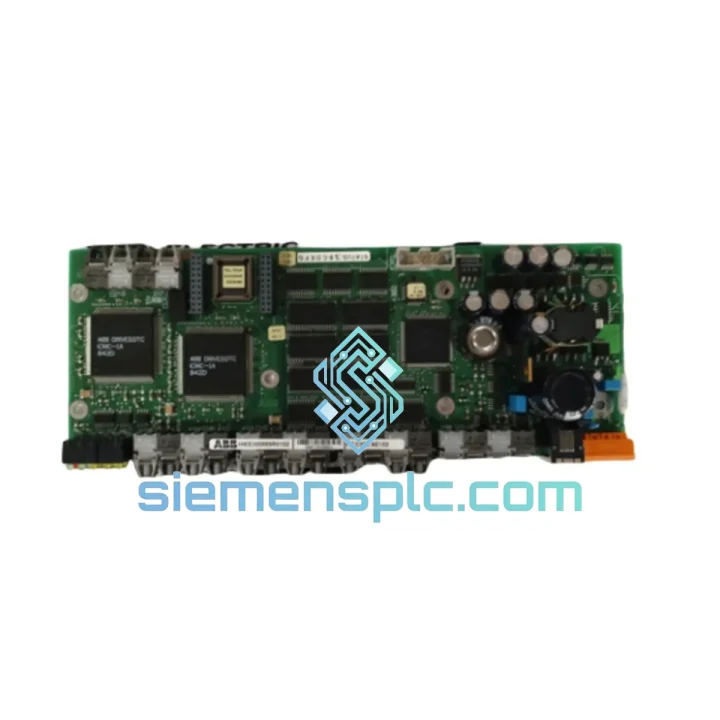

ABB UF C760 BE41 3BHE004573R1041 Communication Interface Board – AC800M Series

ABB UF C760 BE41 3BHE004573R1041 — Backplane Communication Interface Board for AC800M Distributed Control Systems

The ABB UF C760 BE41, catalog part number 3BHE004573R1041, is a dedicated communication interface board engineered for deployment within ABB’s AC800M controller family — the hardware backbone of the System 800xA distributed control platform. This module occupies the internal communication layer between the PM800-series processor modules and the I/O subsystem, managing the deterministic exchange of process data across the controller backplane at cycle times that satisfy the timing constraints of closed-loop regulatory control.

In a functioning AC800M rack, the processor module does not communicate directly with I/O termination units over a generic bus. Instead, the UF C760 BE41 acts as a dedicated arbitration and translation layer: it receives task-cycle data from the PM module’s internal memory map, serializes it into the proprietary backplane protocol, and delivers it to the I/O modules within a bounded latency window. This architecture decouples the CPU’s computational load from the physical I/O scan cycle, allowing the processor to execute control algorithms without being stalled by bus arbitration delays. The result is a controller that maintains scan-cycle jitter below 1 ms even under high I/O point counts — a requirement in applications such as turbine governor control, boiler drum level regulation, and continuous distillation column management.

When this board fails — whether due to electrostatic discharge, capacitor aging, or connector wear — the controller loses its ability to read field inputs and write actuator outputs. The PM module may continue executing its program, but the process values it operates on become stale, triggering watchdog faults and forcing the controller into a safe-state output condition. Replacing the UF C760 BE41 with a verified, genuine unit restores full I/O communication without requiring firmware re-flashing or hardware reconfiguration, provided the replacement board carries the same revision index.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The UF C760 BE41 implements a multi-layer hardware design strategy that addresses the three primary failure modes of industrial communication boards: electromagnetic interference ingress, thermal-induced signal drift, and connector contact degradation.

Optical Isolation Architecture: All signal lines crossing the boundary between the backplane bus and the board’s internal logic are routed through high-speed optocouplers rated for 2,500 V isolation voltage. This galvanic barrier prevents ground-loop currents — common in large industrial panels where multiple earthing points exist at different potentials — from corrupting the digital signal levels on the communication bus. In practice, this means the board continues to operate correctly even when the cabinet ground reference drifts by several volts relative to the controller chassis ground, a condition frequently observed in plants with aging earthing infrastructure.

EMC Shielding and Filtering: The PCB layout places the high-frequency bus driver ICs within a copper-poured ground plane that acts as a Faraday shield against radiated emissions from adjacent variable-frequency drives and high-current contactors. Ferrite beads are placed in series on all power supply traces entering the board, attenuating conducted interference in the 1 MHz to 100 MHz band. The board meets IEC 61000-4-3 radiated immunity at 10 V/m across the 80 MHz to 1 GHz range — a level that covers the emission profiles of most industrial wireless devices and motor drives operating in the same cabinet.

Deterministic Bus Arbitration Logic: The board’s FPGA-based arbitration engine implements a time-division multiplexing scheme that allocates fixed time slots to each I/O module on the backplane. Unlike polling-based protocols that introduce variable latency depending on bus load, this TDM approach guarantees that each I/O module receives its data token within a fixed window regardless of the number of active modules. This is the hardware mechanism that enables the AC800M to achieve its specified scan-cycle determinism — a property that cannot be replicated by substituting a generic communication board.

Thermal Management: The board uses low-dropout linear regulators rather than switching regulators for its internal 3.3 V and 1.8 V supply rails, eliminating the switching noise that would otherwise couple into the analog reference circuits used by the bus driver ICs. The thermal design targets a maximum junction temperature of 85 °C at the hottest component, providing a 30 °C margin above the rated ambient maximum of 55 °C — sufficient for installations in non-air-conditioned marshalling cabinets in tropical climates.

System Integration Benefits

• Zero-Reconfiguration Replacement: The UF C760 BE41 carries its configuration in non-volatile memory that is written during the initial controller commissioning. A replacement board of the same revision index reads the existing backplane configuration automatically on power-up, eliminating the need for an engineer to re-enter I/O mapping tables or re-download the controller application.
• Deterministic I/O Scan Cycle: The TDM arbitration engine maintains a fixed I/O scan period independent of bus load, ensuring that the process values presented to the control algorithm are always current within one scan cycle — a prerequisite for derivative-action PID controllers and cascade control loops.
• Transparent Fault Diagnostics: The board continuously monitors bus voltage levels, frame error rates, and module response timeouts. All diagnostic data is written to the controller’s internal diagnostic buffer and surfaced through the System 800xA Asset Optimization interface, allowing maintenance engineers to identify a degrading board before it causes a process trip.
• Hot-Swap Compatibility: In redundant AC800M configurations, the UF C760 BE41 supports bumpless transfer — the standby controller takes over the I/O scan cycle within one scan period of the primary board failing, with no interruption to the control output signals.
• Broad I/O Module Compatibility: The board’s backplane protocol implementation is compatible with the full range of ABB S800 I/O modules, including AI810, AO810V2, DI810, DO810, and specialty modules such as the RTD input module AI835A, without requiring firmware updates on the I/O side.
• Reduced Engineering Overhead: Because the board handles all bus timing and arbitration in hardware, the application engineer does not need to configure communication parameters in the control builder software. The I/O scan cycle is a fixed hardware property, not a software-configurable variable, which eliminates a class of commissioning errors.
• Long-Term Availability: The 3BHE004573R1041 part number has been in continuous production since the AC800M platform launch and is stocked by authorized distributors globally. Its long production lifecycle reduces the risk of obsolescence-driven plant modifications.
• Compatibility with Redundant Power Architectures: The board draws power exclusively from the controller backplane’s regulated 5 VDC rail, which in redundant AC800M configurations is supplied by two independent SD821 or SD822 power supply modules. A single power supply failure does not interrupt the board’s operation.

Quality Assurance & Global Logistics

Every UF C760 BE41 3BHE004573R1041 unit dispatched from our Xiamen, China facility is sourced directly from ABB’s authorized distribution network or from decommissioned plant stock with full traceability documentation. Before dispatch, each board undergoes a structured verification protocol:

• Visual and Physical Inspection: PCB surface, edge connector contacts, and housing are examined under magnification for solder joint integrity, corrosion, and counterfeit indicators including incorrect silkscreen markings and non-standard component footprints.
• Power-On Functional Test: The board is installed in an ABB-compatible AC800M test rack and powered through a full boot sequence. Bus communication is verified against a reference I/O module set, and the diagnostic register is read to confirm no latent fault codes are present.
• 12-Month Warranty: All units carry a 12-month warranty from the date of dispatch. Warranty claims are handled by advance replacement — a verified unit is shipped before the defective unit is returned, minimizing plant downtime.
• ESD-Safe Packaging: Boards are packed in anti-static shielding bags, placed in foam-lined rigid cartons, and sealed with tamper-evident tape. The outer carton is labeled with the part number, serial number, and test date for receiving inspection.
• Export Documentation: Commercial invoice, packing list, certificate of origin, and — where required — CITES or dual-use export declarations are prepared for each shipment. DHL Express, FedEx International Priority, and UPS Worldwide Express are the standard carriers, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia.
• Customs Compliance: HS Code 8537.10 is applied to all shipments. Buyers requiring specific customs documentation for import clearance in regulated markets (EU, US, Australia) should advise at the time of order.
