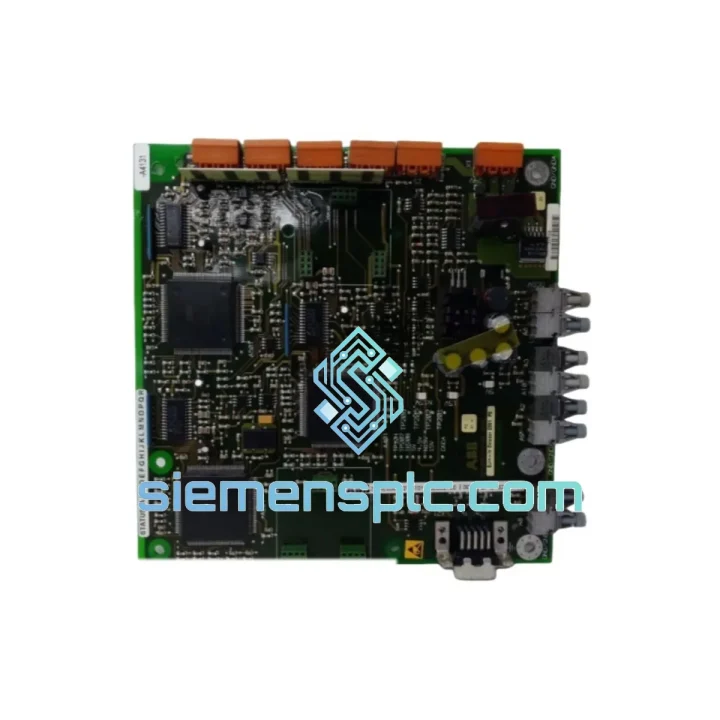

ABB UFC71PAE101 3BHB03041R0101 DCS Control Board

ABB UFC71PAE101 (3BHB03041R0101) – Cut Downtime Now, Ship Today from Xiamen

Every hour your Symphony Plus DCS sits idle costs real money — lost throughput, idle crews, penalty clauses. The UFC71PAE101 is the process control backbone of the ABB AC800M / Symphony Plus platform. When it fails, nothing downstream works. We stock this board in Xiamen and can have it on a DHL plane within hours of your order confirmation. No lead-time games, no “check back in two weeks.” If you’re reading this during a shutdown, stop scrolling and send the RFQ now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience. Before you swap the board, work through this checklist — skipping steps here is how a 2-hour fix turns into a 2-day nightmare.

Common failure signatures on UFC71PAE101:

• ERR LED solid red / no Modulebus heartbeat: Firmware corruption or internal FPGA fault. Power-cycle first; if the LED stays red after 90 seconds, the board is not recovering — replace it.
• Intermittent communication loss to S800 I/O: Often misdiagnosed as a cable fault. Check the optical Modulebus fiber connectors for contamination first, but if the issue follows the board when swapped to a spare slot, the UFC71 transceiver is degraded.
• Process values frozen / stale timestamps in DCS historian: Indicates the board’s internal clock or scan cycle has locked up. A warm restart via ABB Control Builder M may clear it temporarily, but plan for a hard replacement within the next maintenance window.
• Unexpected controller switchover in redundant pair: If the UFC71PAE101 is the active controller and keeps handing off to the standby, check the synchronization link cable between the two controllers before condemning the board.

Replacement procedure — key configuration checkpoints:

• Firmware version match: The replacement UFC71PAE101 must run the same firmware revision as the unit being removed. Mismatched firmware between a redundant pair will prevent synchronization. Confirm the version in ABB Control Builder M before powering the new board.
• Node address / rotary switch setting: The UFC71 uses onboard rotary switches to set the Modulebus node address. Document the existing switch positions before removal — photograph them. Set the replacement to identical positions before insertion.
• Application download: On a non-redundant system, after physical swap you must download the controller application from Control Builder M. Do not assume the board retains the previous application — it does not unless a memory card is used.
• Redundancy re-synchronization: In a redundant AC800M setup, insert the replacement as the standby unit first. Allow full synchronization (green SYNC LED) before switching over. Never force a switchover during the sync phase.
• I/O module re-addressing: S800 I/O modules connected via Modulebus perform automatic address assignment on power-up. After replacing the UFC71, verify all I/O module addresses in the hardware configuration match the physical rack layout — a single address conflict will take an entire I/O cluster offline.
• Battery-backed RAM: If the failed board had a backup battery, check its charge state on the replacement unit before commissioning. A dead battery means loss of retentive data on power failure.

Reliability in Harsh Conditions

Power plants, refineries, and chemical facilities do not offer climate-controlled server rooms. The UFC71PAE101 is engineered for the realities of industrial environments — not lab conditions.

• Vibration tolerance: The board’s PCB layout and component mounting comply with IEC 60068-2-6 vibration testing standards, making it suitable for installation near rotating machinery, compressors, and pump skids where structural vibration is constant.
• Thermal management: Rated for continuous operation up to 55 °C ambient. The board’s thermal design accounts for heat soak from adjacent modules in a fully populated rack — no derating required under normal rack ventilation conditions.
• Humidity and condensation resistance: Conformal coating on the PCB provides protection against humidity ingress and minor condensation events, reducing the risk of corrosion-related failures in coastal or high-humidity plant environments.
• EMC shielding: The module meets CE EMC requirements and is designed to operate in environments with significant electrical noise from variable frequency drives, large motor starters, and high-voltage switchgear — all common in the plants where Symphony Plus DCS is deployed.
• Long-term component stability: ABB selects industrial-grade components rated for extended service life. This matters in DCS applications where a controller board may be expected to run continuously for 10–15 years between planned replacements.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is exactly what happens after you confirm your order:

• Order confirmation → same-day pick & pack: Orders confirmed before 15:00 CST are picked, ESD-packed, and handed to the carrier the same business day.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared in parallel with packing. No delays waiting for paperwork.
• Carrier options: DHL Express Worldwide (1–3 days to most destinations), FedEx International Priority (1–3 days), UPS Worldwide Express. We select the fastest available flight routing for your destination.
• Customs clearance support: We declare accurate HS codes and provide all documentation required for smooth customs clearance. For destinations with specific import requirements (e.g., EU, US, Australia), we advise in advance.
• Tracking: AWB number sent to your email within 2 hours of carrier pickup. Real-time tracking link included.
• Typical transit times: Southeast Asia 1–2 days | Europe 2–3 days | North America 2–3 days | Middle East 2–4 days | South America 3–5 days.

If your plant is down and every hour counts, tell us when you contact us. We will prioritize your shipment and confirm the earliest possible departure flight.
