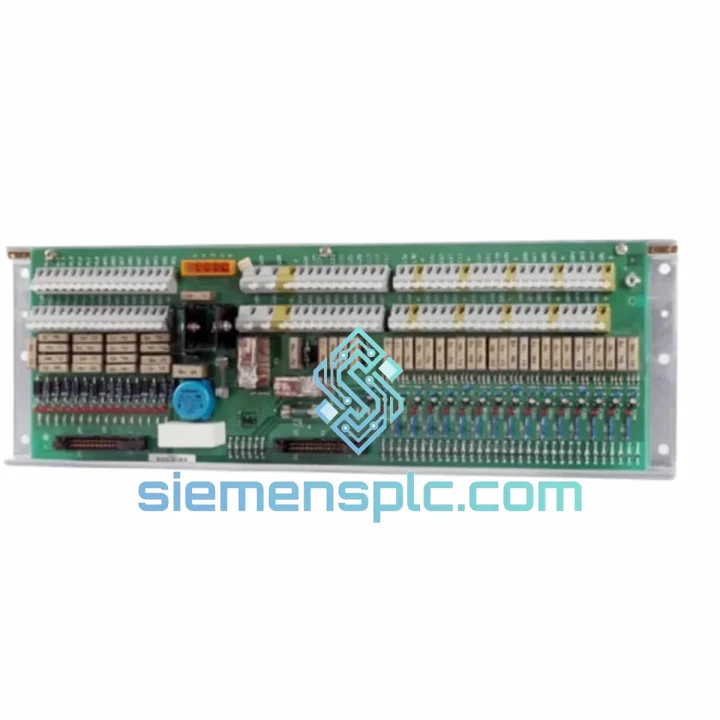

ABB UNC4674B HIEE305089R0001 I/O Interface Card

ABB UNC4674B HIEE305089R0001 — Every Hour of Downtime Costs You. We Ship Today.

Your DCS rack just threw a fault. The UNC4674B I/O interface card is dead. Production is stopped. Every minute the line sits idle, you’re bleeding money — maintenance contracts, penalty clauses, idle labor, and the pressure from plant management that doesn’t stop. We’ve been there. That’s exactly why we stock the ABB UNC4674B (HIEE305089R0001) and ship same-day from Xiamen. No waiting on ABB’s 8-week lead time. No chasing distributors who don’t have it. You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of emergency callouts, here’s what actually goes wrong with the UNC4674B and what you need to know before you pull the card:

Common Failure Signatures:

• ERR LED solid red on the card front panel — almost always a bus communication fault. Before condemning the card, check the backplane connector pins for oxidation or bent contacts. A card that looks dead is sometimes just a dirty connector.
• Intermittent I/O channel dropouts — typically caused by capacitor aging on the signal conditioning circuit. If you’re seeing random analog input spikes or digital output chattering with no field-side cause, the card’s internal filtering is degrading. Replace, don’t repair.
• System 800xA / ADVANT Builder showing “Module Not Responding” — verify the rack slot address first. If the slot address DIP switches were disturbed during a previous maintenance event, the controller won’t find the card even if it’s electrically healthy. Check the switch settings against your original commissioning documentation before assuming the card is faulty.
• Card powers up but I/O channels read zero across the board — check the termination unit (TB820/TB840) connection. A loose or corroded field terminal block will give you this exact symptom and waste an hour of your time.

Replacement Procedure — Key Steps:

• Confirm your rack supports hot-swap for this slot. Not all ADVANT OCS rack generations do. If in doubt, coordinate a controlled shutdown rather than risk a bus fault cascade.
• Note the DIP switch configuration on the failed card before removal. Photograph it. The replacement card must be set identically — slot address, I/O type selection, and any termination jumpers.
• After seating the new UNC4674B, allow 30–60 seconds for the controller to re-enumerate the I/O bus before forcing a channel read. Premature polling can generate spurious fault logs.
• If your ADVANT Builder project has hardware configuration locked to a specific firmware revision, verify the replacement card’s firmware label matches. Mismatched firmware between card and project configuration is a known source of “unexpected module type” alarms post-replacement.
• Run a full I/O channel check — don’t just verify the channels that were in alarm. A card failure often masks secondary issues on adjacent channels that only surface after the primary fault is cleared.

Reliability in Harsh Conditions

The ABB ADVANT OCS platform was engineered for continuous operation in environments that would destroy consumer-grade electronics. The UNC4674B carries that same design philosophy. The PCB substrate uses conformal coating as standard, providing resistance to condensation, airborne contaminants, and the fine metallic dust common in metals processing and mining environments. The card’s signal conditioning circuitry is designed to reject common-mode noise from variable frequency drives, welding equipment, and high-current bus bars — the exact interference sources that plague I/O cards in steel mills and chemical plants.

Vibration tolerance is built into the card’s mechanical design: the edge connector uses a high-retention contact system, and all through-hole components are wave-soldered to IPC Class 2 standards, giving the solder joints the fatigue life needed for installations subject to pump and compressor vibration transmitted through control room floors. Thermal cycling — the daily expansion and contraction that cracks solder joints on cheaper cards over time — is handled by ABB’s component selection criteria, which specifies matched thermal expansion coefficients across the PCB stack.

In offshore and coastal installations where salt-laden air accelerates corrosion, the conformal coating provides the first line of defense. Our pre-shipment inspection includes a visual check of the coating integrity on every card we dispatch — any card showing coating holidays or corrosion on exposed copper is rejected before it reaches you.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It means your emergency order moves fast.

Standard dispatch timeline: payment confirmed before 14:00 CST ships same business day. Orders confirmed after 14:00 ship the following morning. We use DHL Express and FedEx International Priority as primary carriers for industrial components — both offer end-to-end tracking, proactive exception management, and customs clearance support that generic freight forwarders cannot match on emergency timelines.

Typical transit times from Xiamen: Southeast Asia 1–2 days, Middle East and Europe 3–4 days, North America 4–5 days, South America and Africa 5–7 days. All shipments include a commercial invoice, packing list, and certificate of origin — the documentation your customs broker needs to clear the shipment without delays. For destinations with import restrictions on electronic components, contact us before ordering and we will advise on the correct HS code declaration and any required permits.

Every shipment is packed in ESD-safe anti-static bags, foam-lined, and double-walled corrugated cartons rated for air freight handling. The card arrives at your site in the same condition it left our warehouse — not rattled loose in an undersized box with a single layer of bubble wrap.

Contact Information

Ready to order or need a technical confirmation before you commit? Reach us directly:

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com
